ADE150L-DHFDXW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702-0802)1ADFTV,2ADFHV

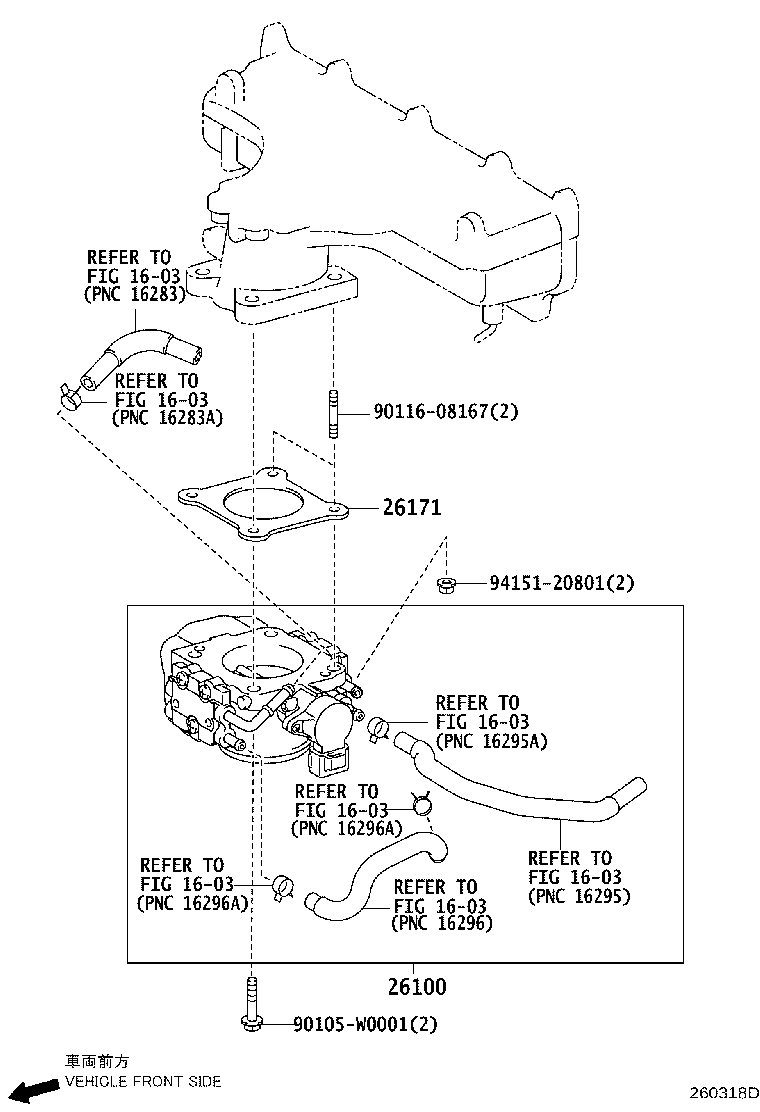

Click highlighted areas on diagram

diagram 26100 26171 90105W0001 9011608167 9415120801
Part # Description Qty Price
26100 - VENTURI ASSY
26100-0R010

1ADFTV,2ADFHV..ADE15#

 1
26100-26020

1ADFTV,2ADFHV..ADE15#

(J)

 1
26100-0R011

1ADFTV,2ADFHV..ADE15#

(L)

 1
26171 - GASKET, VENTURI
26171-26010

1ADFTV,2ADFHV..ADE15#

 1
Common parts
90105-W0001
90116-08167
94151-20801

(0802-0903)1ADFTV,2ADFHV..DCRL ; (0802- )1ADFTV..DCR

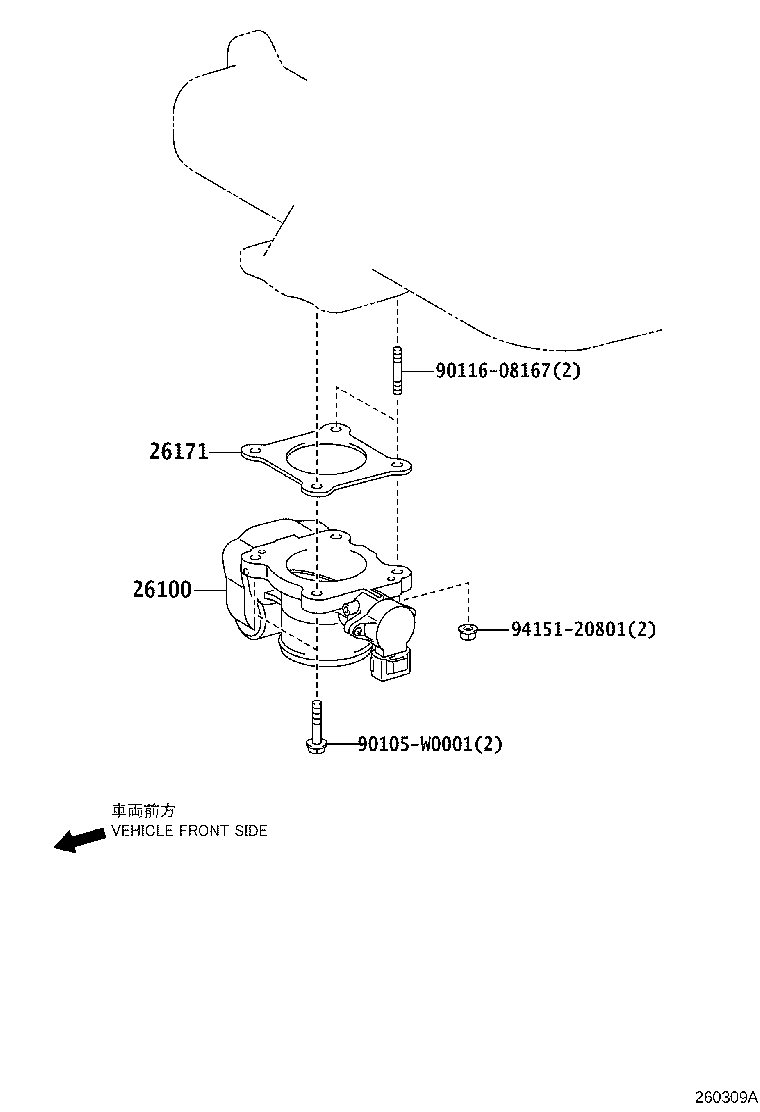

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 26100 26171 90105W0001 9011608167 9415120801
Part # Description Qty Price
26100 - VENTURI ASSY
26100-0R010

1ADFTV,2ADFHV..ADE15#

 1
26100-26020

1ADFTV,2ADFHV..ADE15#

(J)

 1
26100-0R011

1ADFTV,2ADFHV..ADE15#

(L)

 1
26171 - GASKET, VENTURI
26171-26010

1ADFTV,2ADFHV..ADE15#

 1
Common parts
90105-W0001
90116-08167
94151-20801
Linked diagrams
1603
