ADE150L-DHFDXW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702- )1ADFTV,2ADFHV

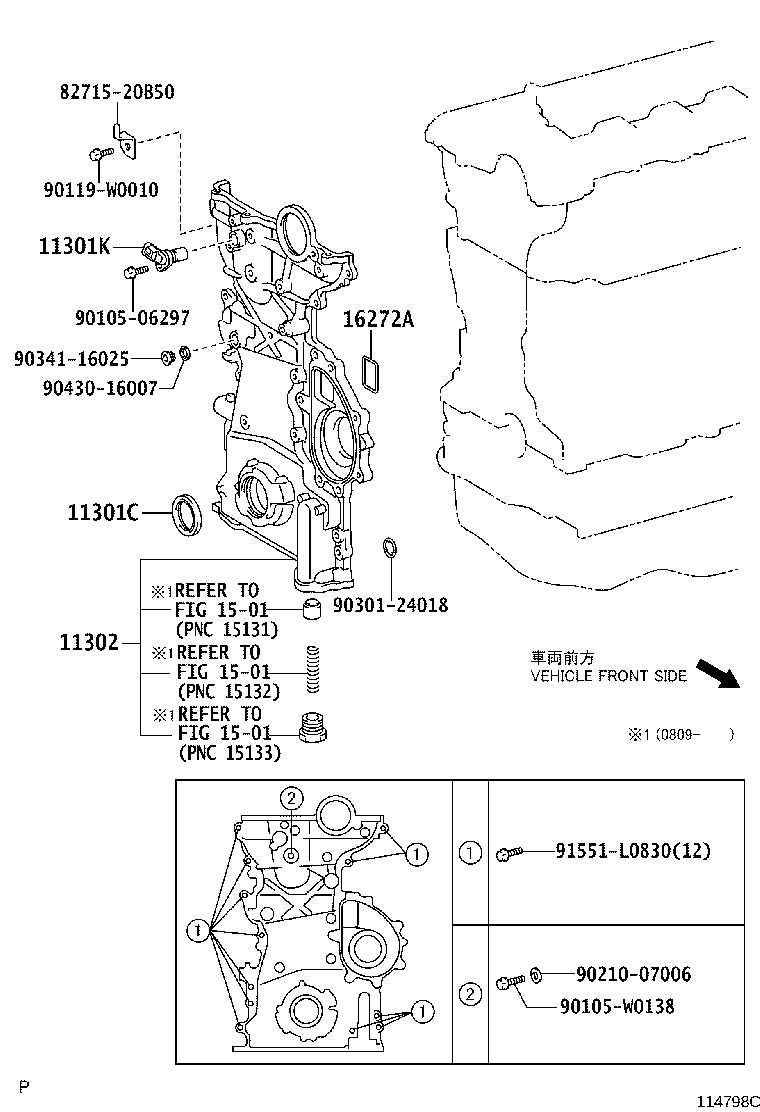

Click highlighted areas on diagram

diagram 11301C 11301K 11302 1501 1501 1501 16272A 8271520B50 9010506297 90105W0138 90119W0010 9021007006 9030124018 9034116025 9043016007 91551L0830
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-W0009

1ADFTV,2ADFHV..ADE15#

 1
90311-W0005

1ADFTV,2ADFHV..ADE15#

 1
11301K - SENSOR, CRANK POSITION
90919-05029

1ADFTV,2ADFHV..ADE15#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-0R020

1ADFTV,2ADFHV..ADE15#

 1
11302-0R011

1ADFTV,2ADFHV..ADE15#

 1
16272A - GASKET, WATER PUMP NO.2
16272-26010

1ADFTV,2ADFHV..ADE15#

 1
Common parts
82715-20B50
90105-06297
90105-W0138
90119-W0010
90210-07006
90301-24018
90341-16025
90430-16007
91551-L0830
Linked diagrams
1501
