ADE150L-DGFNYW (2007)

Toyota Auris/Hybrid (Ukp)

Production Feb 2007 - Mar 2009
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150..LHD

Click highlighted areas on diagram

diagram 89741 90119W0017
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-02010

ADE15#,ZRE151..LHD..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89741-02100

ADE15#

 1
89740-02011

ADE15#..LHD..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89741-02100

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON

 1
Common parts
90119-W0017

(0702-0902)ZRE151..LHD..SOL ; (0702-0903)ADE15#..LHD

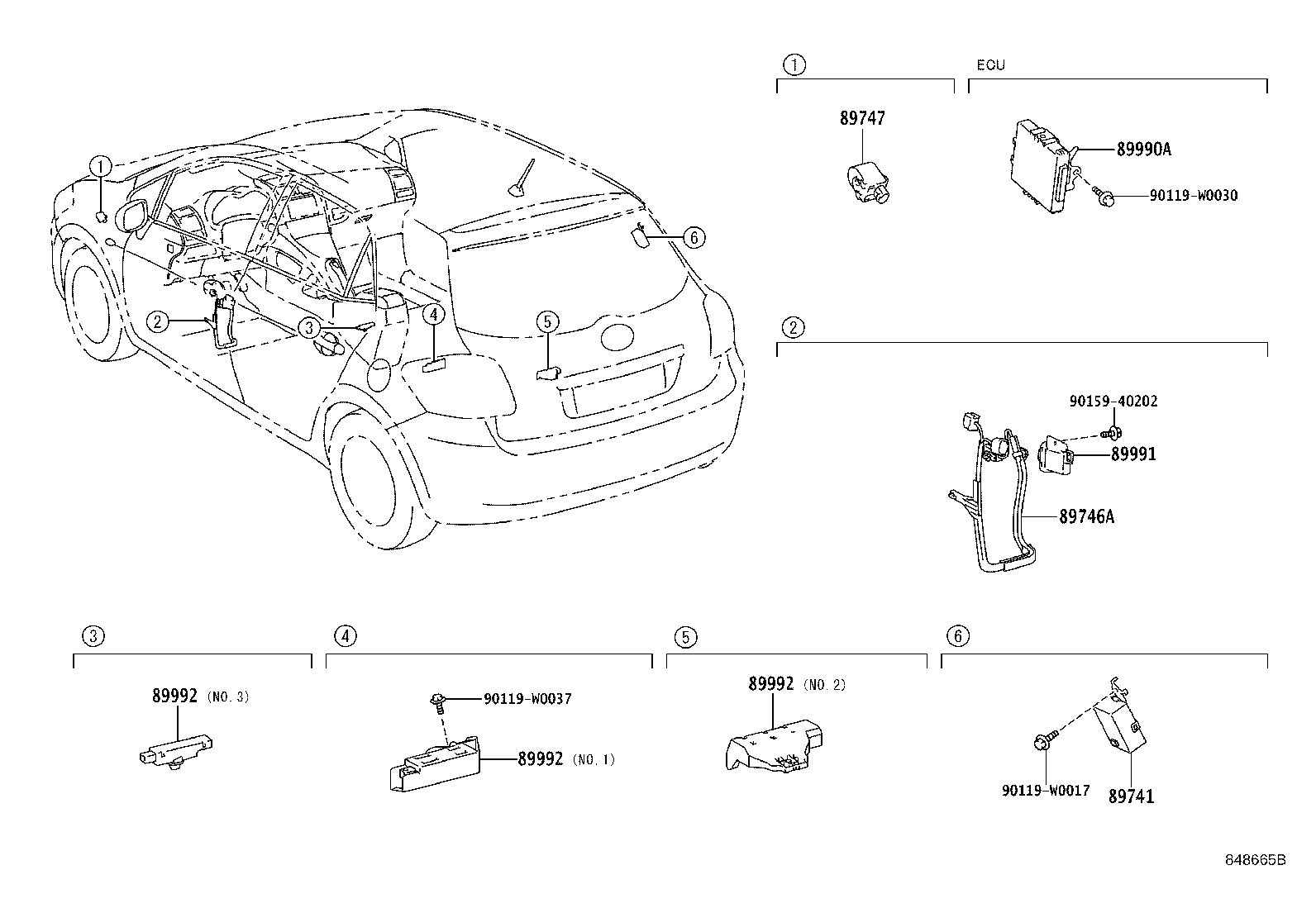

Click highlighted areas on diagram

STARTING SYSTEM-PUSH BUTTON

diagram 89741 89746A 89747 89990A 89991 89992 89992 89992 90119W0017 90119W0030 90119W0037 9015940202
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-02010

ADE15#,ZRE151..LHD..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89741-02100

ADE15#

 1
89740-02011

ADE15#..LHD..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89741-02100

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-02040

ADE15#..LHD..3D..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-52010

ADE15#..LHD..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89990A - COMPUTER ASSY, SMART KEY
89990-02011

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89990-02010

ADE15#,ZRE151..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30050

ADE15#,ZRE151..LHD..SOL..(DCR,DCRL,HTWC)

STARTING SYSTEM-PUSH BUTTON

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02030

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992-0D020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02030

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992-0D020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02030

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992-0D020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
Common parts
90119-W0017
90119-W0030
90119-W0037
90159-40202

(0902- )ZRE15#..LHD..SOL ; (0903- )ADE15#..LHD..SOL ; (1006- )ZWE150..LHD

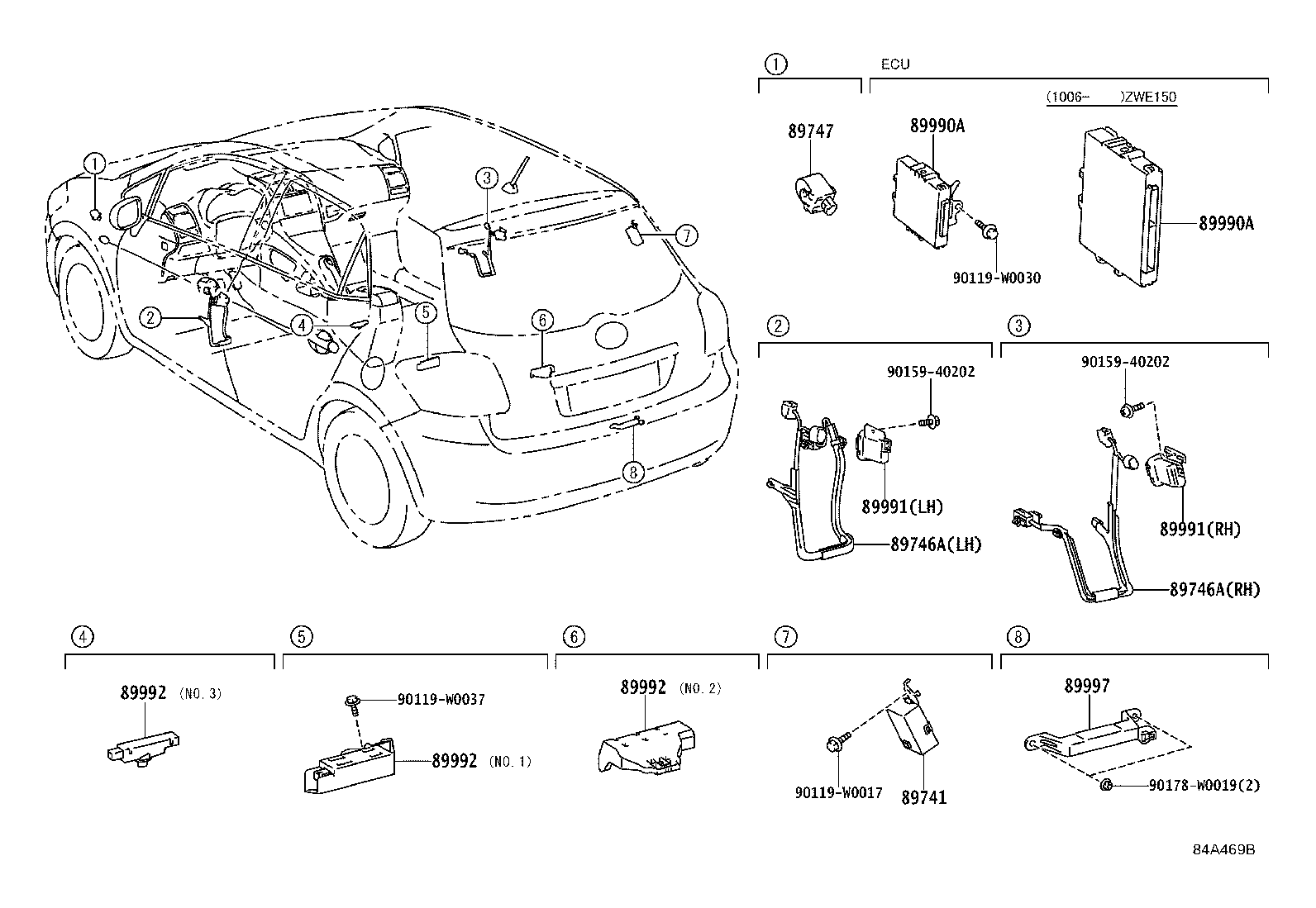

Click highlighted areas on diagram

STARTING SYSTEM-PUSH BUTTON

diagram 89741 89746A 89746A 89747 89990A 89990A 89991 89991 89992 89992 89992 89997 90119W0017 90119W0030 90119W0037 9015940202 9015940202 90178W0019
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-02010

ADE15#,ZRE151..LHD..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89741-02100

ADE15#

 1
89740-02011

ADE15#..LHD..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89741-02100

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-02040

ADE15#..LHD..3D..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-02040

ADE15#..LHD..3D..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-52010

ADE15#..LHD..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89990A - COMPUTER ASSY, SMART KEY
89990-02011

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89990-02010

ADE15#,ZRE151..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89990A - COMPUTER ASSY, SMART KEY
89990-02011

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89990-02010

ADE15#,ZRE151..SOL

STARTING SYSTEM-PUSH BUTTON

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30050

ADE15#,ZRE151..LHD..SOL..(DCR,DCRL,HTWC)

STARTING SYSTEM-PUSH BUTTON

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30050

ADE15#,ZRE151..LHD..SOL..(DCR,DCRL,HTWC)

STARTING SYSTEM-PUSH BUTTON

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02030

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992-0D020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02030

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992-0D020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-02030

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.2

 1
89992-0D020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.3

 1
89992-02020

ADE15#..SOL

STARTING SYSTEM-PUSH BUTTON,NO.1

 1
Common parts
90119-W0017
90119-W0030
90119-W0037
90159-40202
90178-W0019
