ADE150L-DGFNXW (2009)

Toyota Auris/Hybrid (Ukp)

Production Mar 2009 - Jan 2010
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702- )ADE150,NDE150,NRE150,ZRE15#,ZZE150

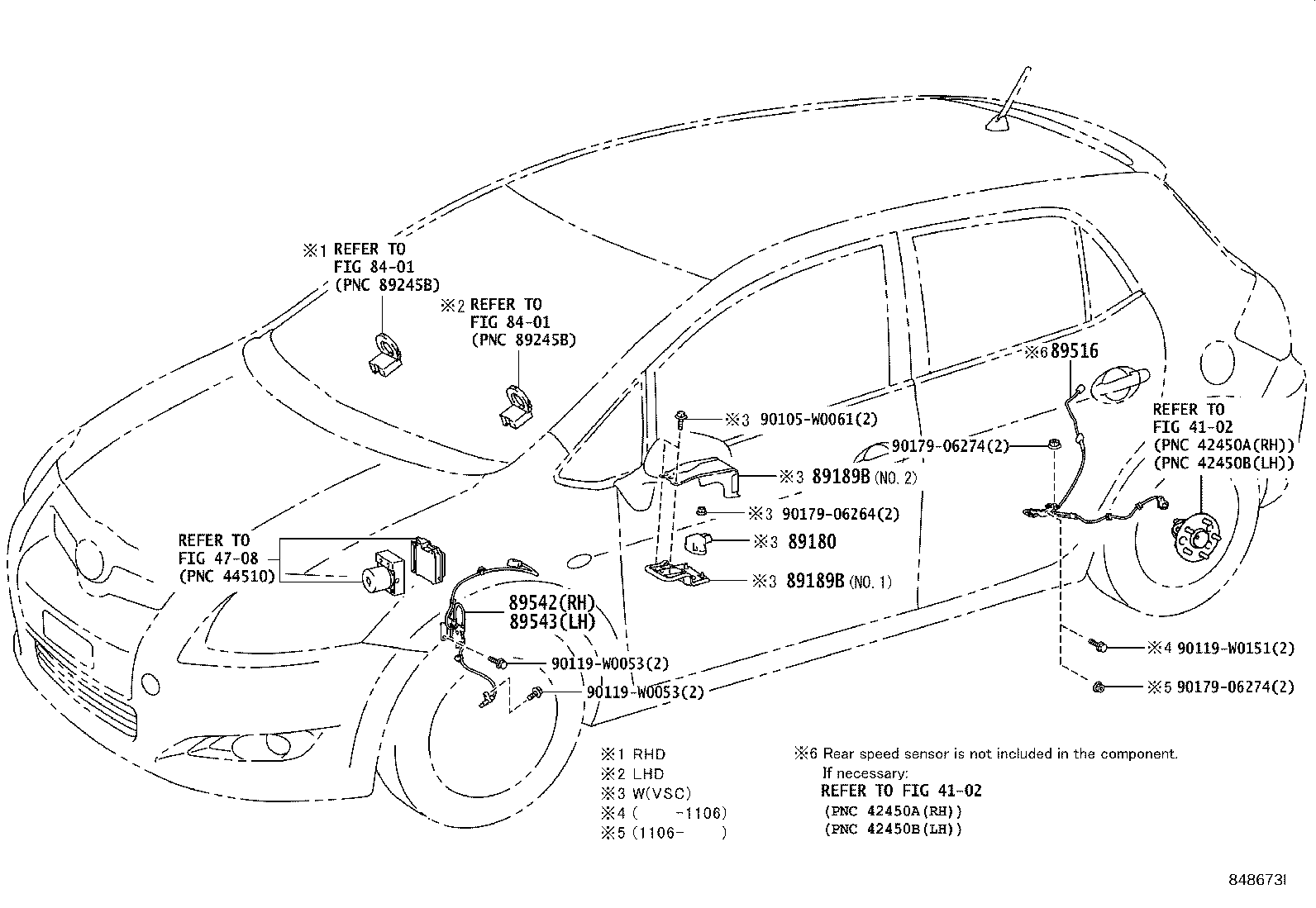

Click highlighted areas on diagram

diagram 4102 4102 4708 8401 8401 89180 89189B 89189B 89516 89542 89543 90105W0061 90119W0053 90119W0053 90119W0151 9017906264 9017906274 9017906274
Part # Description Qty Price
89180 - SENSOR ASSY, YAWRATE
89183-06010

ADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA

VSC-WITH(W/CUT OFF SWITCH)

 1
89183-06010

ADE150

VSC-WITH(W/CUT OFF SWITCH)

 1
89189B - BRACKET, YAWRATE SENSOR
89189-02020

ADE150

VSC-WITH(W/CUT OFF SWITCH),NO.1

 1
89189-02030

ADE150

VSC-WITH(W/CUT OFF SWITCH),NO.2

 1
89189-02020

ADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA

VSC-WITH(W/CUT OFF SWITCH),NO.1

 1
89189-02030

ADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA

VSC-WITH(W/CUT OFF SWITCH),NO.2

 1
89189B - BRACKET, YAWRATE SENSOR
89189-02020

ADE150

VSC-WITH(W/CUT OFF SWITCH),NO.1

 1
89189-02030

ADE150

VSC-WITH(W/CUT OFF SWITCH),NO.2

 1
89189-02020

ADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA

VSC-WITH(W/CUT OFF SWITCH),NO.1

 1
89189-02030

ADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA

VSC-WITH(W/CUT OFF SWITCH),NO.2

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-02071

ADE150

RH

 1
89516-02081

ADE150

LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-02060

ADE15#,NDE150,ZRE151,ZZE150

 1
89543 - SENSOR, SPEED, FRONT LH
89543-02060

ADE15#,NDE150,ZRE151,ZZE150

 1
Common parts
90105-W0061
90119-W0053
90119-W0151
90179-06264
90179-06274
Linked diagrams
4102
4708
8401
