ADE150L-DGFNXW (2009)
Toyota Auris/Hybrid (Ukp)
ILLUST NO. 1 OF12(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150..LHD

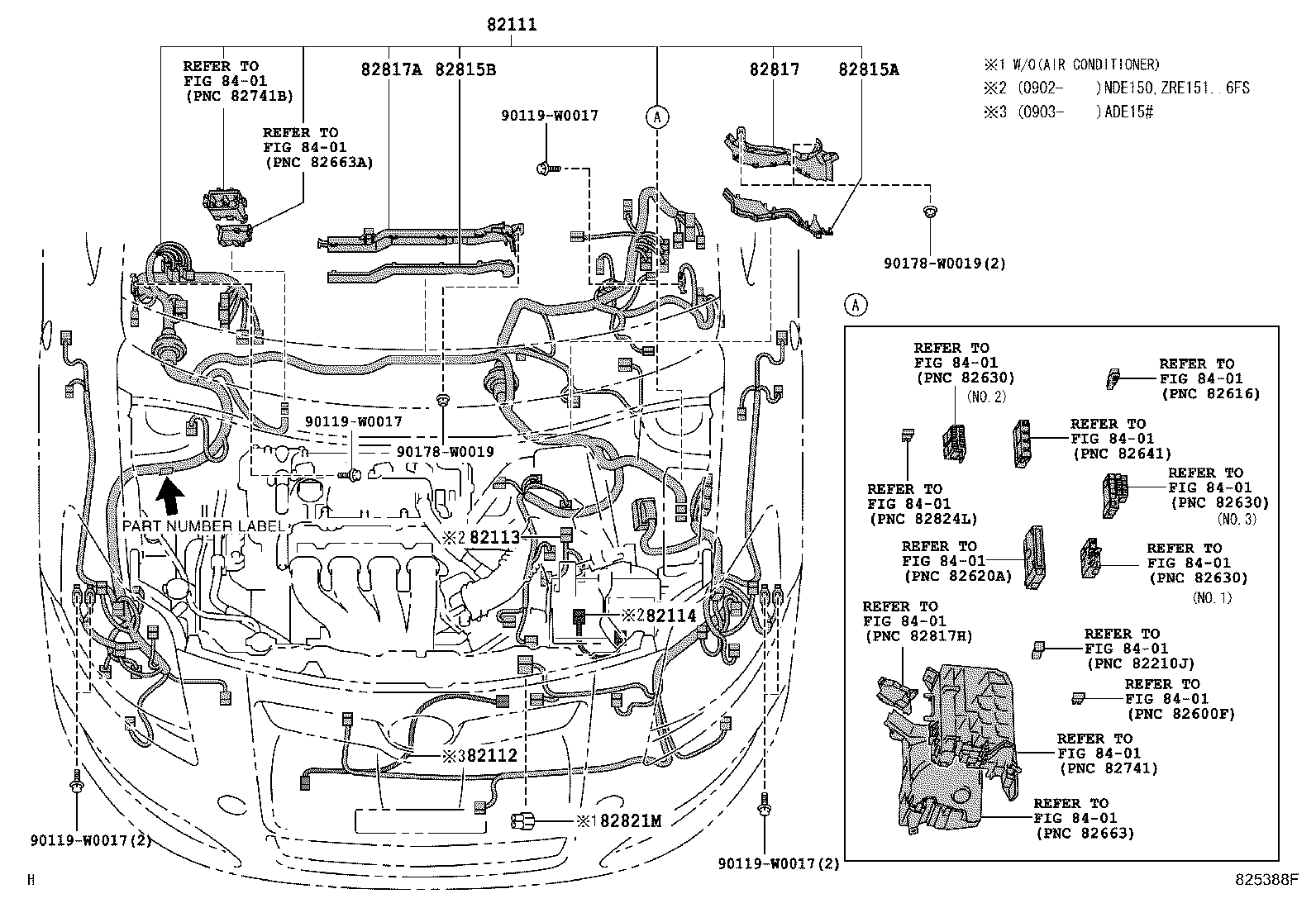

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-02T80 |
ADE150..LHD..SOL VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-02T70 |
ADE150..LHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82111-02T90 |
ADE150..LHD |
1 | ||
| 82111-02U10 |
ADE150..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82111-02U30 |
ADE150..LHD COLD AREA SPEC |
1 | ||
| 82111-02U20 |
ADE150..LHD..SOL COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-0ZG60 |
ADE150..LHD..3D VSC-WITH(WITH/CUT OFF SWITCH) |
1 | ||
| 82111-0ZG90 |
ADE150..LHD..3D COLD AREA SPEC&VSC-WITH(WITH/CUT OFF SWITCH) |
1 | ||
| 82111-0ZJ10 |
ADE150..LHD..3D COLD AREA SPEC |
1 | ||
| 82111-0ZG80 |
ADE150..LHD..3D |
1 | ||
| 82111-0ZG70 |
ADE150..LHD..3D..SOL VSC-WITH(WITH/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-0ZJ00 |
ADE150..LHD..3D..SOL COLD AREA SPEC&VSC-WITH(WITH/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-02T70 |
ADE150..LHD PART NUMBER LABEL=82111-02T70 |
1 | ||
| 82111-02T80 |
ADE150..LHD..SOL PART NUMBER LABEL=82111-02T80 |
1 | ||
| 82111-02U10 |
ADE150..LHD PART NUMBER LABEL=82111-02U10 |
1 | ||
| 82111-02T90 |
ADE150..LHD PART NUMBER LABEL=82111-02T90 |
1 | ||
| 82111-02U30 |
ADE150..LHD PART NUMBER LABEL=82111-02U30 |
1 | ||
| 82111-02U20 |
ADE150..LHD..SOL PART NUMBER LABEL=82111-02U20 |
1 | ||
| 82111-0ZG60 |
ADE150..LHD..3D PART NUMBER LABEL=82111-0ZG60 |
1 | ||
| 82111-0ZJ00 |
ADE150..LHD..3D..SOL PART NUMBER LABEL=82111-0ZJ00 |
1 | ||
| 82111-0ZG70 |
ADE150..LHD..3D..SOL PART NUMBER LABEL=82111-0ZG70 |
1 | ||
| 82111-0ZG80 |
ADE150..LHD..3D PART NUMBER LABEL=82111-0ZG80 |
1 | ||
| 82111-0ZG90 |
ADE150..LHD..3D PART NUMBER LABEL=82111-0ZG90 |
1 | ||
| 82111-0ZJ10 |
ADE150..LHD..3D PART NUMBER LABEL=82111-0ZJ10 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-05010 |
ADE15# |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-02130 |
NDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL) |
1 | ||
| 82815-02130 |
ADE15#..LHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-02140 |
ADE15#..LHD |
1 | ||
| 82815-02140 |
NDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02490 |
ADE15#..LHD |
1 | ||
| 82817-02490 |
NDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-02640 |
ADE15#..LHD |
1 | ||
| 82817-02640 |
ADE15#..LHD;NDE150..LHD..(E,SOL);NDE150..LHD..6F..TERRA |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF12(0702- )LHD

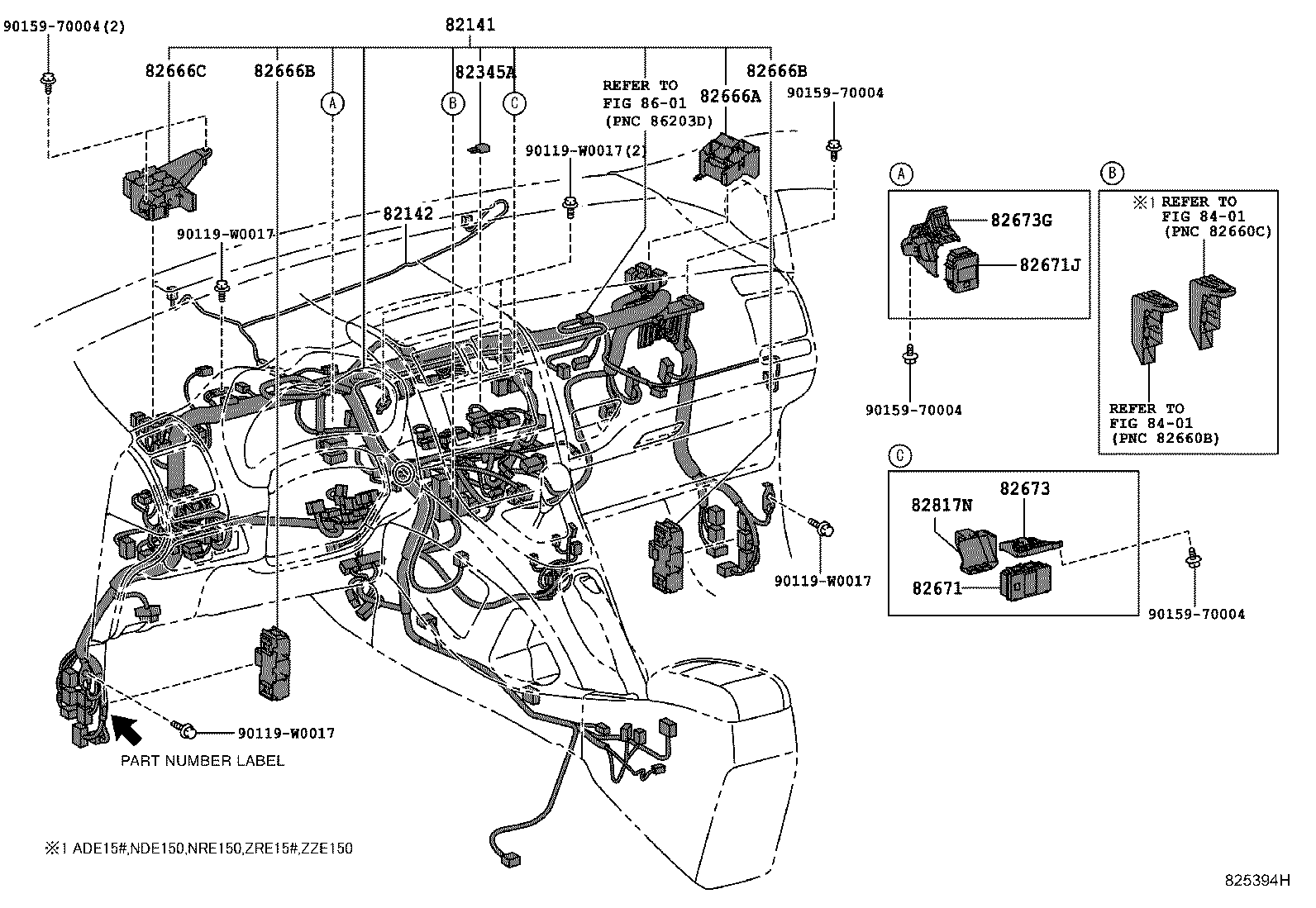

INSTRUMENT PANEL
