ADE150L-DGFNXW (2009)

Toyota Auris/Hybrid (Ukp)

Production Mar 2009 - Jan 2010
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702- )

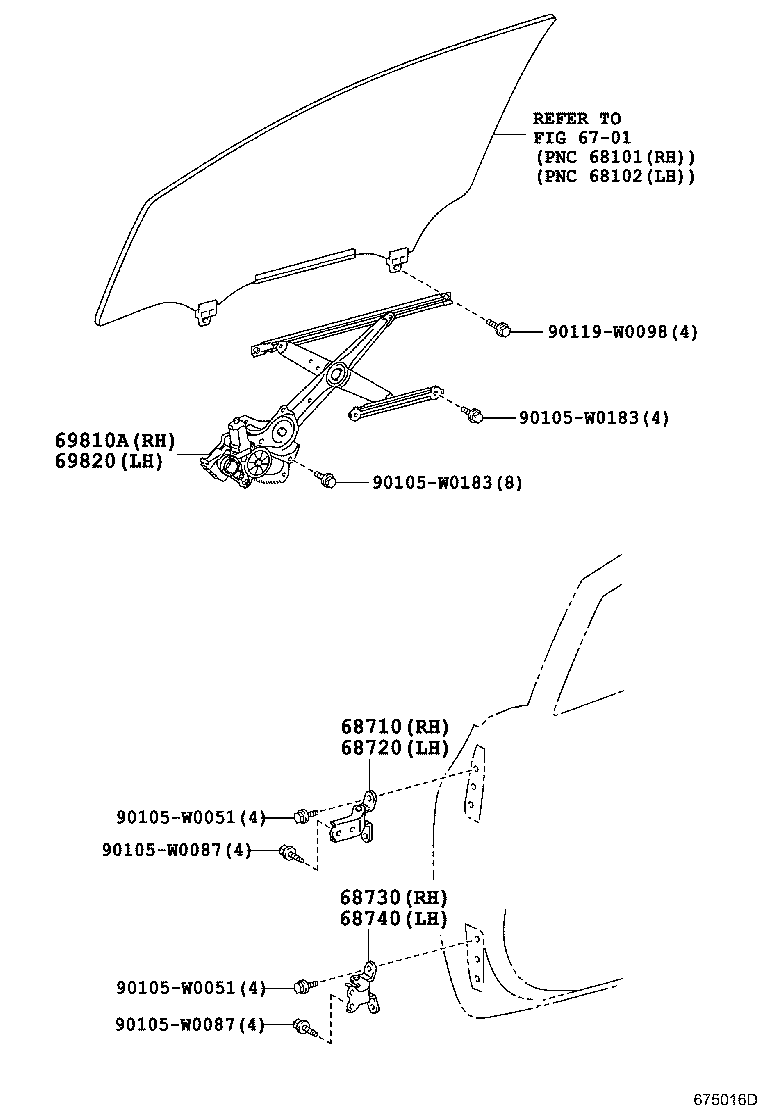

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69810A 69820 90105W0051 90105W0051 90105W0087 90105W0087 90105W0183 90105W0183 90119W0098
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02060

ADE15#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02060

ADE15#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02050

ADE15#

(L)

 1
68730-12120

ADE15#

(J)

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02050

ADE15#

(L)

 1
68740-12120

ADE15#

(J)

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-02320

ADE15#..LHD

 1
69810-02310

ADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-02330

ADE15#..LHD

 1
69820-02330

ADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150

 1
Common parts
90105-W0051
90105-W0087
90105-W0183
90119-W0098
Linked diagrams
6701
