ADE150L-DGFNXW (2009)
Toyota Auris/Hybrid (Ukp)
(0702- )ADE15#,NDE150,NRE150,ZRE15#,ZZE150

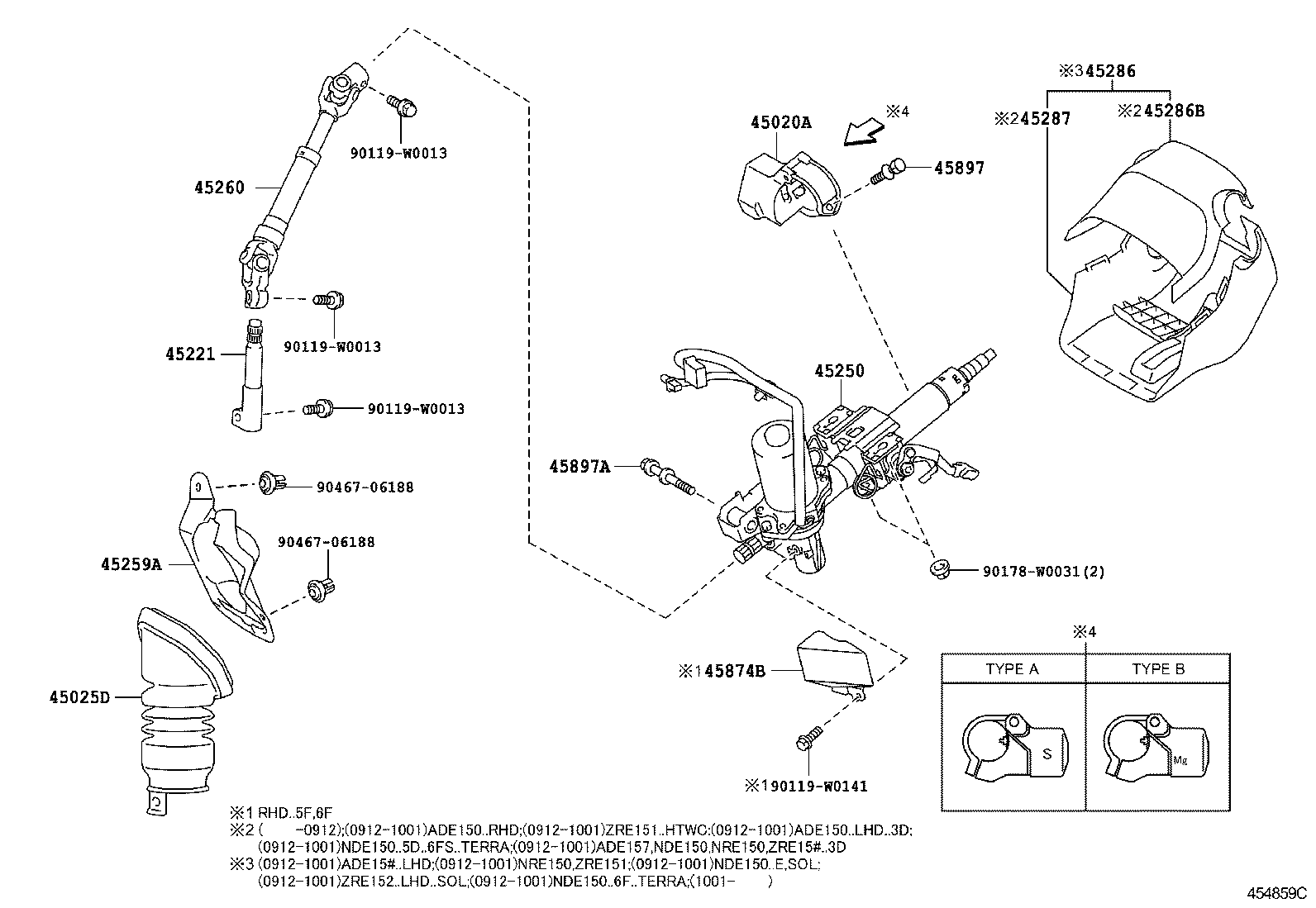

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-02170 |
ADE15#..LHD |
1 | ||
| 45020-02230 |
ADE15#,NDE150,NRE150,ZRE15#..LHD..MTM MARK = 45020-0203 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-02090 |
ADE15#..LHD |
1 | ||
| 45025-02090 |
NDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-02050 |
ADE15# |
1 | ||
| 45221-02050 |
ADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-02690 |
ADE15#,NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 45250-02680 |
ADE15#,ZRE151..LHD..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-02080 |
NDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL) |
1 | ||
| 45259-02080 |
ADE15#..LHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-02080 |
ADE15#..LHD |
1 | ||
| 45260-02080 |
NDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-02935B0 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE150,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-02936B0 |
ADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..E,SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-02240B0 |
ADE15#..5D..SOL;ADE15#..LHD..3D..SOL STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM0#,1#,4# |
1 | ||
| 45286-02250B0 |
ADE15#..5D..SOL;ADE15#..LHD..3D..SOL DK.GRAY,TRIM0#,1#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-02230B0 |
ADE15#..5D..SOL;ADE15#..LHD..3D..SOL STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM0#,1#,4# |
1 | ||
| 45287-02240B0 |
ADE15#..5D..SOL;ADE15#..LHD..3D..SOL DK.GRAY,TRIM0#,1#,4# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ADE15#..LHD |
1 | ||
| 45897-12020 |
ADE15#,ZRE15#..LHD..3D..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 45897-12050 |
NDE150..5D..6FS..TERRA;ADE15#,NDE150,NRE150,ZRE15#..LHD..3D |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ADE15#..LHD |
1 | ||
| 45897-12020 |
ADE15#,ZRE15#..LHD..3D..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 45897-12050 |
NDE150..5D..6FS..TERRA;ADE15#,NDE150,NRE150,ZRE15#..LHD..3D |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
ADE15#,NDE150,ZRE151,ZZE150 |
1 | ||
| 45897-20020 |
ADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150 |
1 | ||
| Common parts | ||||
| 90119-W0013 | ||||
| 90119-W0141 | ||||
| 90178-W0031 | ||||
| 90467-06188 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0702- )ADE15#,ZRE15#..SOL
STARTING SYSTEM-PUSH BUTTON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-02200 |
ADE15#..LHD..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-02090 |
ADE15#..LHD |
1 | ||
| 45025-02090 |
NDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-02050 |
ADE15# |
1 | ||
| 45221-02050 |
ADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-02690 |
ADE15#,NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 45250-02680 |
ADE15#,ZRE151..LHD..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-02080 |
NDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL) |
1 | ||
| 45259-02080 |
ADE15#..LHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-02080 |
ADE15#..LHD |
1 | ||
| 45260-02080 |
NDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-02935B0 |
ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE150,ZRE152..LHD..SOL STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM1#,4# |
1 | ||
| 45286-02936B0 |
ADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..E,SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-02240B0 |
ADE15#..5D..SOL;ADE15#..LHD..3D..SOL STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM0#,1#,4# |
1 | ||
| 45286-02250B0 |
ADE15#..5D..SOL;ADE15#..LHD..3D..SOL DK.GRAY,TRIM0#,1#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-02230B0 |
ADE15#..5D..SOL;ADE15#..LHD..3D..SOL STARTING SYSTEM-PUSH BUTTON,DK.GRAY,TRIM0#,1#,4# |
1 | ||
| 45287-02240B0 |
ADE15#..5D..SOL;ADE15#..LHD..3D..SOL DK.GRAY,TRIM0#,1#,4# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ADE15#..LHD |
1 | ||
| 45897-12020 |
ADE15#,ZRE15#..LHD..3D..SOL STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 45897-12050 |
NDE150..5D..6FS..TERRA;ADE15#,NDE150,NRE150,ZRE15#..LHD..3D |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
ADE15#,NDE150,ZRE151,ZZE150 |
1 | ||
| 45897-20020 |
ADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150 |
1 | ||
| Common parts | ||||
| 90119-W0013 | ||||
| 90119-W0141 | ||||
| 90178-W0031 | ||||
| 90467-06188 | ||||
