ADE150L-DGFNXW (2009)

Toyota Auris/Hybrid (Ukp)

Production Mar 2009 - Jan 2010
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0702- )ADE15#

Click highlighted areas on diagram

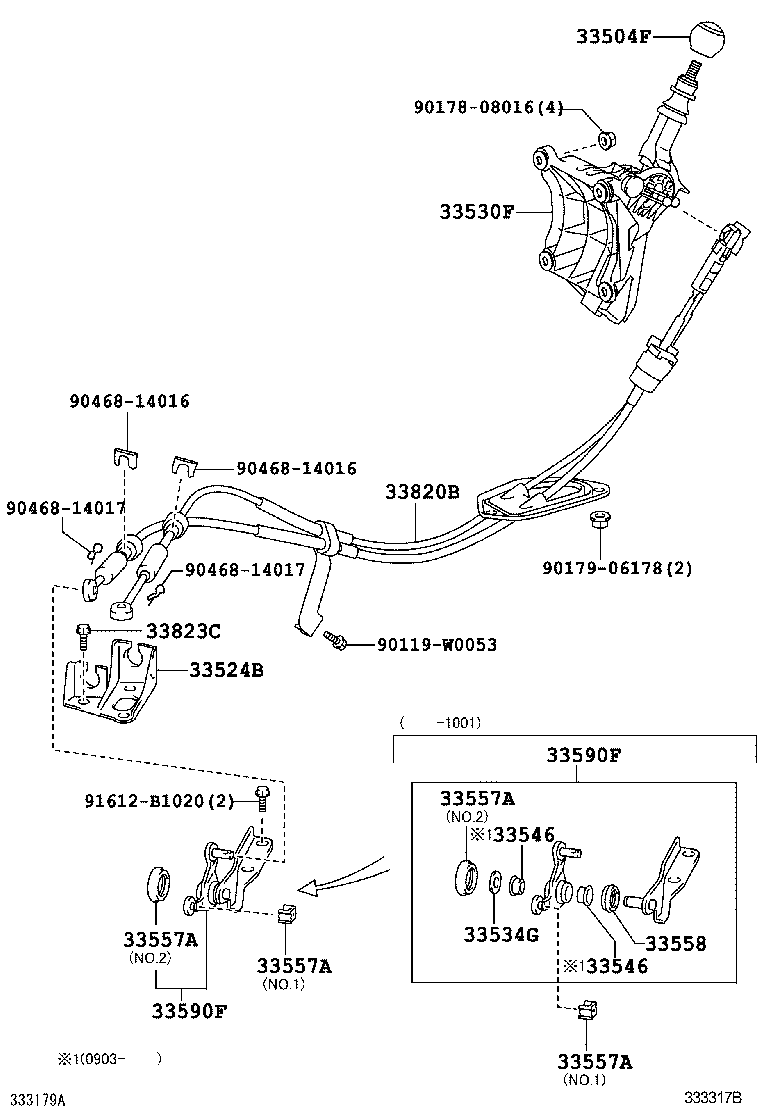

diagram 33504F 33524B 33530F 33534G 33546 33546 33557A 33557A 33557A 33557A 33558 33590F 33590F 33820B 33823C 90119W0053 9017808016 9017906178 9046814016 9046814016 9046814017 9046814017 91612B1020
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02150B1

ADE15#..SOL

DK.GRAY,TRIM1#,4#

 1
33524B - BRACKET, CONTROL CABLE
33524-12090

ADE15#

 1
33524-12090

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-02210

ADE15#

 1
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

 1
33546 - BUSH(FOR CONTROL SHIFT LEVER RETAINER)
33546-20020

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

 2
33546 - BUSH(FOR CONTROL SHIFT LEVER RETAINER)
33546-20020

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

 2
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-33010

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

NO.1

 1
33557-20010

ADE15#

NO.2

 1
33557-20010

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

NO.2

 1
33557-33010

ADE15#

NO.1

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-33010

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

NO.1

 1
33557-20010

ADE15#

NO.2

 1
33557-20010

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

NO.2

 1
33557-33010

ADE15#

NO.1

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-33010

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

NO.1

 1
33557-20010

ADE15#

NO.2

 1
33557-20010

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

NO.2

 1
33557-33010

ADE15#

NO.1

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-33010

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

NO.1

 1
33557-20010

ADE15#

NO.2

 1
33557-20010

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

NO.2

 1
33557-33010

ADE15#

NO.1

 1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-10030

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

 1
33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
33590-20040

ADE15#

 1
33590-20040

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

 1
33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
33590-20040

ADE15#

 1
33590-20040

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02490

ADE15#

 1
33820-02490

ADE157..3D;ADE150..RHD;ADE150..LHD..3D

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-G0820

ADE15#

 3
91611-G0820

ADE15#

 3
Common parts
90119-W0053
90178-08016
90179-06178
90468-14016
90468-14017
91612-B1020
