ZZE150R-AHMNKW (2006)

Toyota Auris/Corolla (Jpp)

Production Oct 2006 - Dec 2008
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0812)ZZE150

Click highlighted areas on diagram

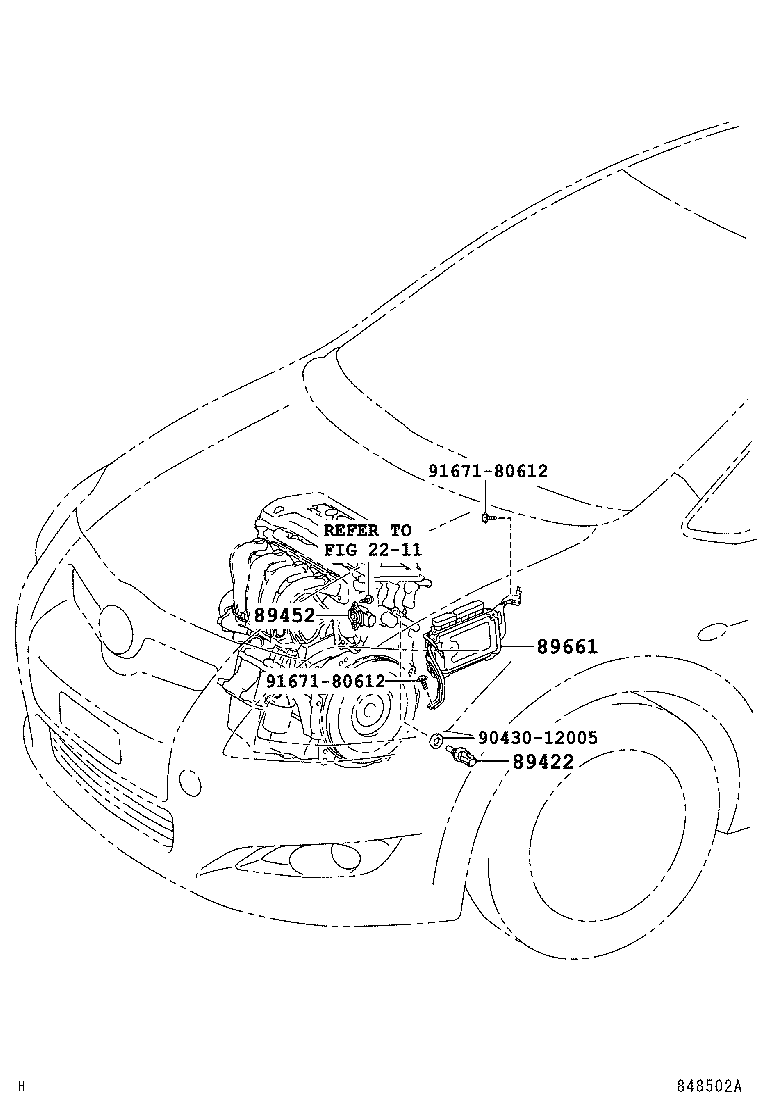

diagram 2211 89422 89452 89661 9043012005 9167180612 9167180612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

ZZE150

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

ZZE150

 1
89661 - COMPUTER, ENGINE CONTROL
89660-12D50

ZZE150

EXHAUST EMISSION CONTROL-ECE STEP4 WITHOUT(OBD),P/N LABEL=8966012D50

 1
89660-12D40

ZZE150

P/N LABEL=8966012D40

 1
Common parts
90430-12005
91671-80612
Linked diagrams
2211
