ZZE150L-AHMDKW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Dec 2008
Engine
4ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610-0812)4ZZFE

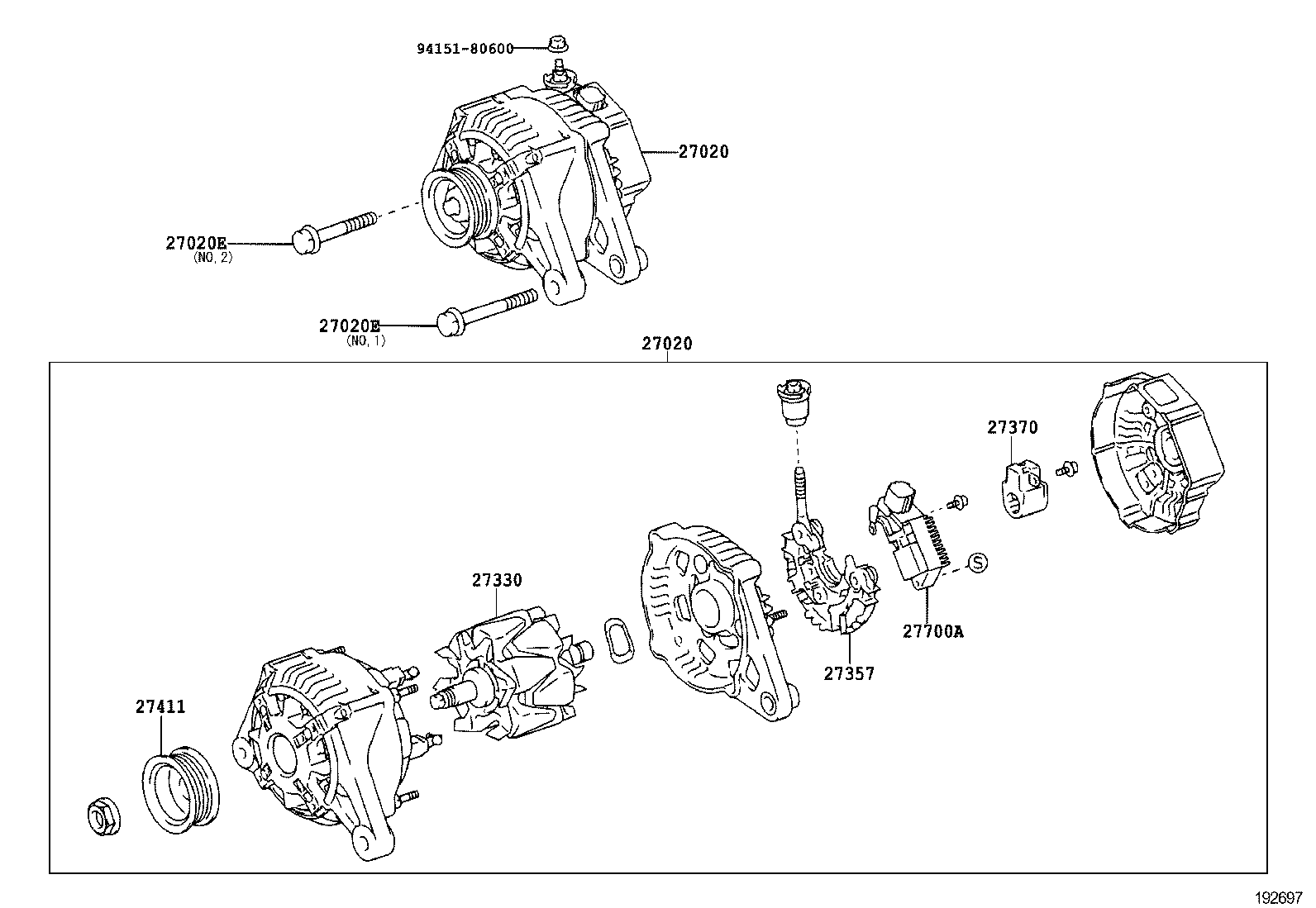

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-22260 |
4ZZFE..ZZE150 12V 80A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-22260 |
4ZZFE..ZZE150 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 91511-80830 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
4ZZFE..ZZE150 NO.1 |
1 | ||
| 91511-80830 |
4ZZFE..ZZE150 NO.2 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-62220 |
4ZZFE..ZZE150 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-22200 |
4ZZFE..ZZE150 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-23120 |
4ZZFE..ZZE150 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-22210 |
4ZZFE..ZZE150 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-75030 |
4ZZFE..ZZE150 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
