ZRE151R-AHMNKW (2006)
Toyota Auris/Corolla (Jpp)

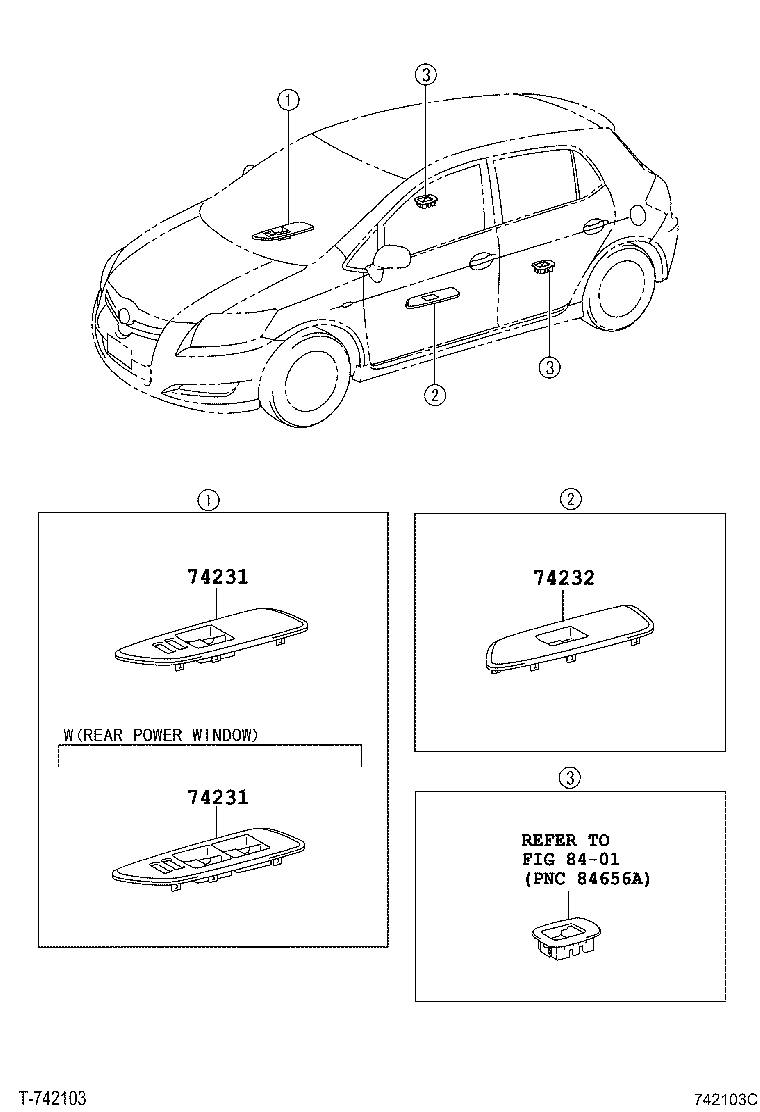

ILLUST NO. 1 OF 2(0610- )RHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-12770B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 74231-12770E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-12770B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 74231-12770E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-12570B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 74232-12570E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0610- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-12A90B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) LT.GRAY,TRIM1# |
1 | ||
| 74310-12A90E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM4# |
1 | ||
| 74317-52010B1 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS LT.GRAY,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM4# |
1 | ||
| 74318-52020B1 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-12A40E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 74320-12A40B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040B1 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS LT.GRAY,TRIM1# |
2 | ||
| 74348-33040E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM4# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM4# |
4 | ||
| 74610-52020B1 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS LT.GRAY,TRIM1# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74610-52020B1 |
NDE150,ZRE151,ZZE150 LT.GRAY,TRIM1# |
8 | ||
| 74612-52030E0 |
NDE150,ZRE151,ZZE150..SOL GREGE,TRIM4# |
8 | ||
| 74645A - COVER, DOOR ASSIST GRIP, RH | ||||
| 74645-12020 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
2 | ||
| 74646 - COVER, DOOR ASSIST GRIP, LH | ||||
| 74646-12020 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS |
2 | ||
