ZRE151R-AHGNKW (2006)
Toyota Auris/Corolla (Jpp)

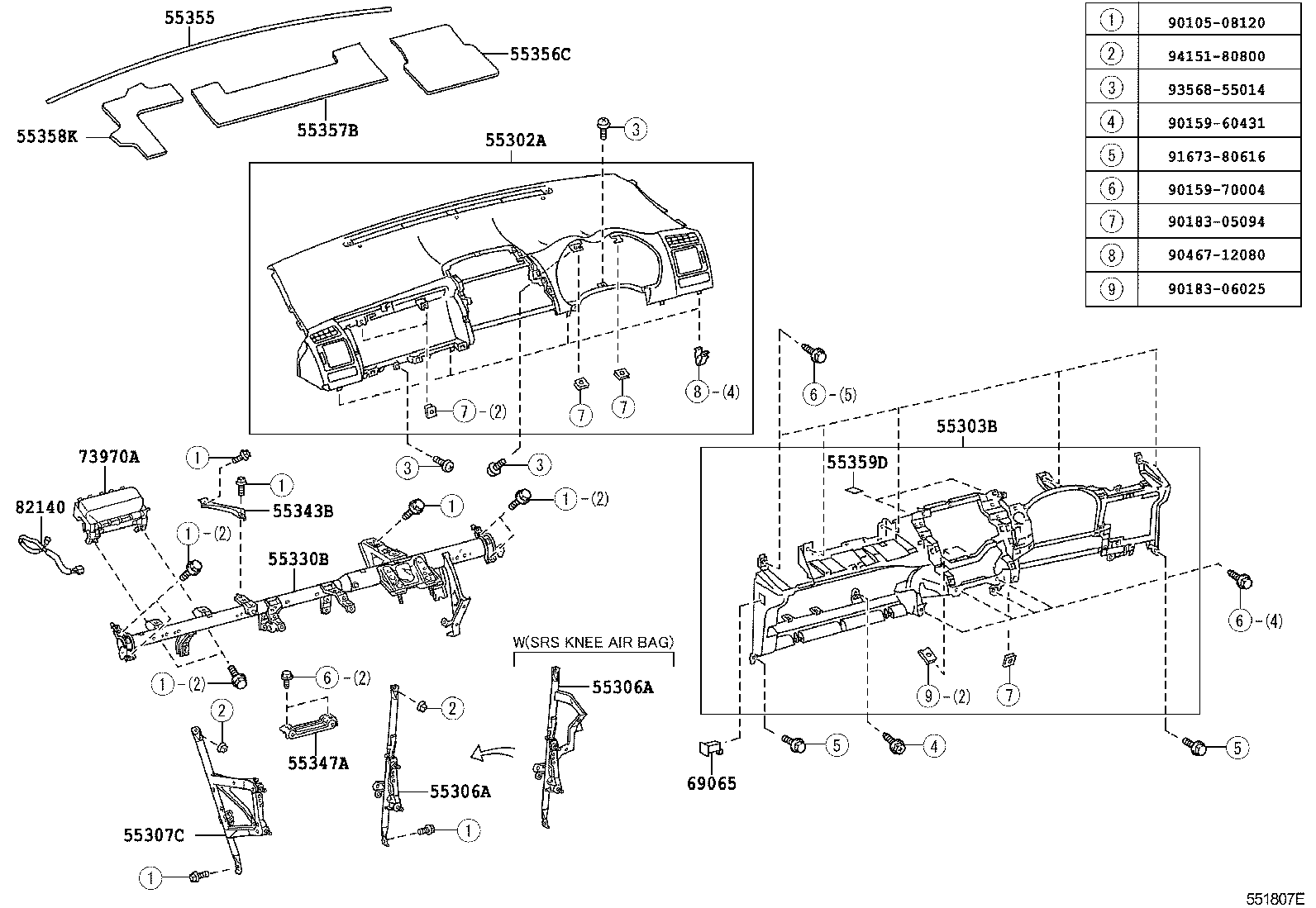

ILLUST NO. 1 OF 2(0610- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-12080B1 |
ADE150,NDE150,ZRE151,ZZE150..RHD DK.GRAY,TRIM1# |
1 | ||
| 55302-12080E1 |
ADE150,NDE150,ZRE151,ZZE150..RHD..SOL GREGE,TRIM4# |
1 | ||
| 55302-12080B1 |
ADE150,NDE150,ZRE151,ZZE150..RHD DK.GRAY,TRIM1# |
1 | ||
| 55302-12080E1 |
ADE150,NDE150,ZRE151,ZZE150..RHD..SOL GREGE,TRIM4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-12330B0 |
ADE150,NDE150,ZRE151,ZZE150..RHD..SOL DK.GRAY,TRIM1#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55307-12310 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 55306-12330 |
ADE150,NDE150,ZRE151,ZZE150..RHD SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 55306-12331 |
NDE150,ZRE151,ZZE150..RHD SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 55307-12311 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55307-12310 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 55306-12330 |
ADE150,NDE150,ZRE151,ZZE150..RHD SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 55306-12331 |
NDE150,ZRE151,ZZE150..RHD SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 55307-12311 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12300 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 55307-12301 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-12660 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1 | ||||
| 55349-12121 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55349-12120 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-12130 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-12090 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-12080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-12090 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-42010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 69065-53010 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-12110 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-1A200 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90183-05094 | ||||
| 90183-06025 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||

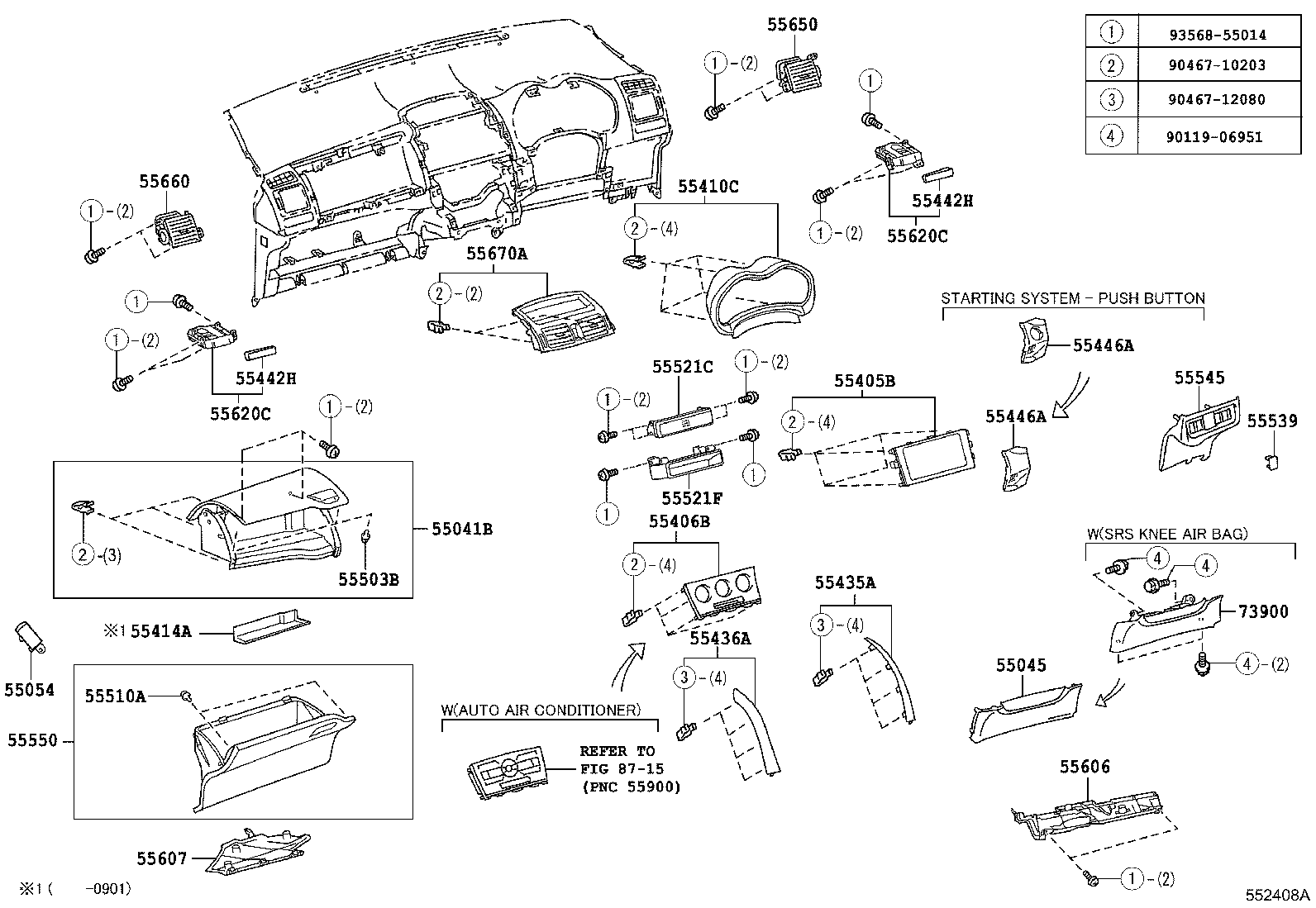

ILLUST NO. 2 OF 2(0610-0910)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-12010B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 55041-12010E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-12340B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12A00 |
NDE150,ZRE151,ZZE150..SOL AUDIO-RADIOLESS 6SPEAKER |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-12420 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL |
1 | ||
| 55406-12420 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12A00E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 55410-12A00B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-12190 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-12230E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4#,RH |
1 | ||
| 55442-12230B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1#,RH |
1 | ||
| 55442-12260B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1#,LH |
1 | ||
| 55442-12260E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4#,LH |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-12230E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4#,RH |
1 | ||
| 55442-12230B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1#,RH |
1 | ||
| 55442-12260B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1#,LH |
1 | ||
| 55442-12260E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4#,LH |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12090E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM42 |
1 | ||
| 55446-12080B0 |
ADE150,ZRE151..RHD..(DCR,HTWC) STARTING SYSTEM-PUSH BUTTON(SMART ENTRY),DK.GRAY,TRIM1#,42 |
1 | ||
| 55446-12090B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1#,42 |
1 | ||
| 55446-12080E0 |
ADE150,ZRE151..RHD..(DCR,HTWC) STARTING SYSTEM-PUSH BUTTON(SMART ENTRY),GREGE,TRIM42 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-12090E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM42 |
1 | ||
| 55446-12080B0 |
ADE150,ZRE151..RHD..(DCR,HTWC) STARTING SYSTEM-PUSH BUTTON(SMART ENTRY),DK.GRAY,TRIM1#,42 |
1 | ||
| 55446-12090B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) DK.GRAY,TRIM1#,42 |
1 | ||
| 55446-12080E0 |
ADE150,ZRE151..RHD..(DCR,HTWC) STARTING SYSTEM-PUSH BUTTON(SMART ENTRY),GREGE,TRIM42 |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-12190 |
NDE150,ZRE151,ZZE150..SOL AUDIO-RADIOLESS 6SPEAKER |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-52020 |
NDE150,ZRE151,ZZE150..SOL AUDIO-RADIOLESS 6SPEAKER |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL DK.GRAY,TRIM1#,42 |
1 | ||
| 55539-52060E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL VSC-WITH(W/CUT OFF SWITCH),GREGE,TRIM42 |
1 | ||
| 55539-52060B0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL VSC-WITH(W/CUT OFF SWITCH),DK.GRAY,TRIM1#,42 |
1 | ||
| 55539-52060E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM42 |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-12030E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 55545-12030B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12420B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1# |
1 | ||
| 55550-12420E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-12060 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-12060 |
NDE150,ZRE151,ZZE150..RHD |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-12130E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4#,LH |
1 | ||
| 55620-12111E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4#,RH |
1 | ||
| 55620-12111B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-12130B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1#,LH |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-12130E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4#,LH |
1 | ||
| 55620-12111E0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) GREGE,TRIM4#,RH |
1 | ||
| 55620-12111B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1#,RH |
1 | ||
| 55620-12130B0 |
NDE150..RHD..(5F,5FS);ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC) DK.GRAY,TRIM1#,LH |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12290E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM4# |
1 | ||
| 55650-12290B0 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS DK.GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12360B0 |
ADE150,ZZE150;NDE150,ZRE151..5F,5FS DK.GRAY,TRIM1# |
1 | ||
| 55660-12360E0 |
ADE150,ZZE150..SOL;NDE150,ZRE151..(5F,5FS)..SOL GREGE,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-12320 |
NDE150,ZRE151,ZZE150..SOL |
1 | ||
| 55670-12330 |
NDE150,ZRE151,ZZE150..SOL AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-12010B0 |
NDE150..RHD..(5F,5FS)..SOL;ADE150,ZRE151,ZZE150..RHD..SOL..(DCR,HTWC) SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
