ZRE151R-AHGNKW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Dec 2008
Engine
1ZRFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610-0812)ZRE151..RHD

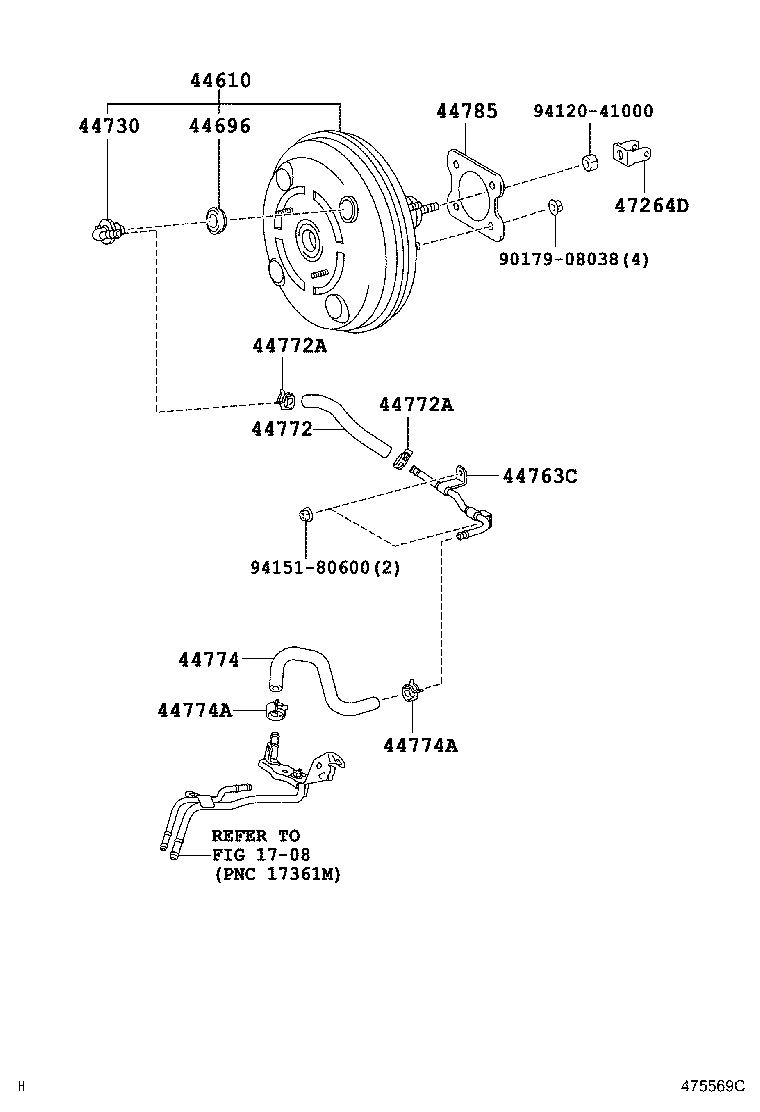

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-12A40 |
ZRE151,ZZE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 44610-12D50 |
ZRE151,ZZE150..RHD |
1 | ||
| 44610-12D51 |
ZRE151,ZZE150..RHD |
1 | ||
| 44610-12A41 |
ZRE151,ZZE150..RHD VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ZRE151,ZZE150 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-12070 |
ZRE151,ZZE150..RHD |
1 | ||
| 44763C - TUBE, HOSE TO HOSE, NO.2 | ||||
| 44763-12440 |
ZRE151..RHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-12600 |
ZRE151,ZZE150..RHD |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 96133-41500 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-12560 |
ZRE151..RHD |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ADE150..LHD;NDE150,ZRE151,ZZE150..5F,5FS |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
ADE150..LHD;NDE150,ZRE151,ZZE150..5F,5FS |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-63020 |
ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1708 | ||||
