ZRE151R-AHGNKW (2006)
Toyota Auris/Corolla (Jpp)
Production
Oct 2006
-
Dec 2008
Engine
1ZRFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610-0812)NDE150,ZRE151,ZZE150

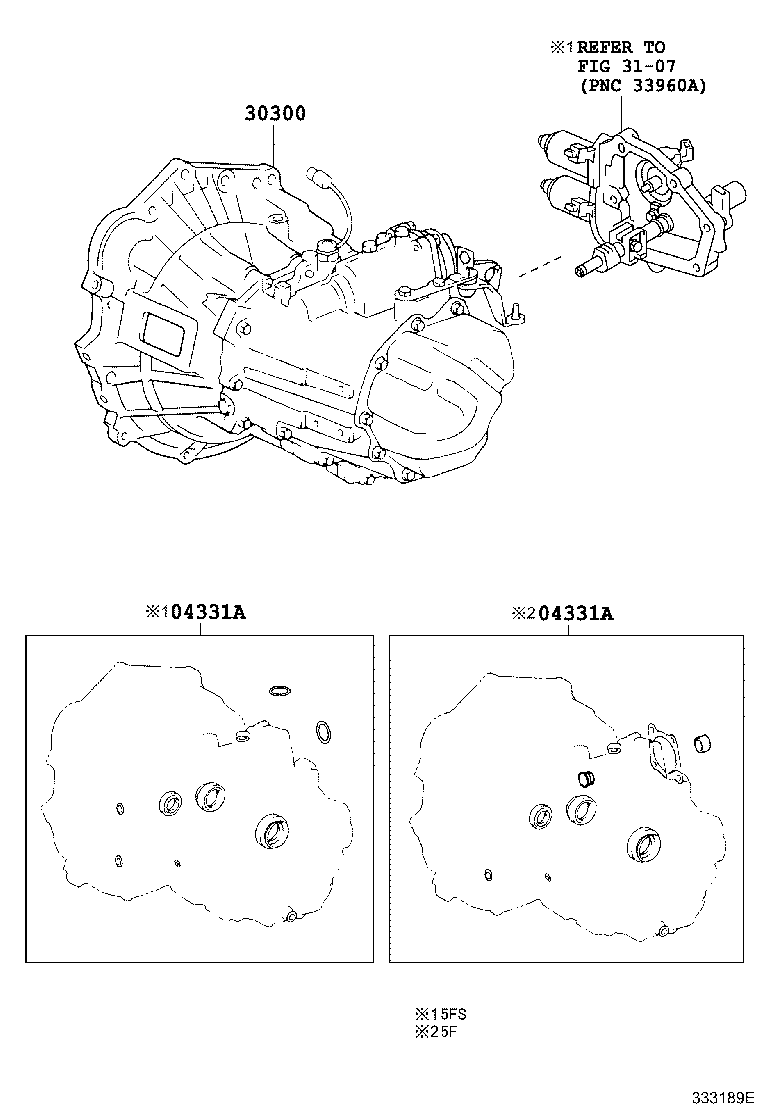

Click highlighted areas on diagram
C50,C53,C50A,C53A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04331A - GASKET KIT, TRANSAXLE OVERHAUL(MTM) | ||||
| 04331-12670 |
ZRE151..5F |
1 | ||
| 04331-12660 |
ZRE151..5FS |
1 | ||
| 04331A - GASKET KIT, TRANSAXLE OVERHAUL(MTM) | ||||
| 04331-12670 |
ZRE151..5F |
1 | ||
| 04331-12660 |
ZRE151..5FS |
1 | ||
| 30300 - TRANSAXLE ASSY, MANUAL | ||||
| 30340-12020 |
ZRE151..5FS C50A |
1 | ||
| 30300-12A90 |
ZRE151..5F C50 |
1 | ||
| Linked diagrams | ||||
| 3107 | ||||
