ZRE151L-AHLDPW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFAE
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )6FS

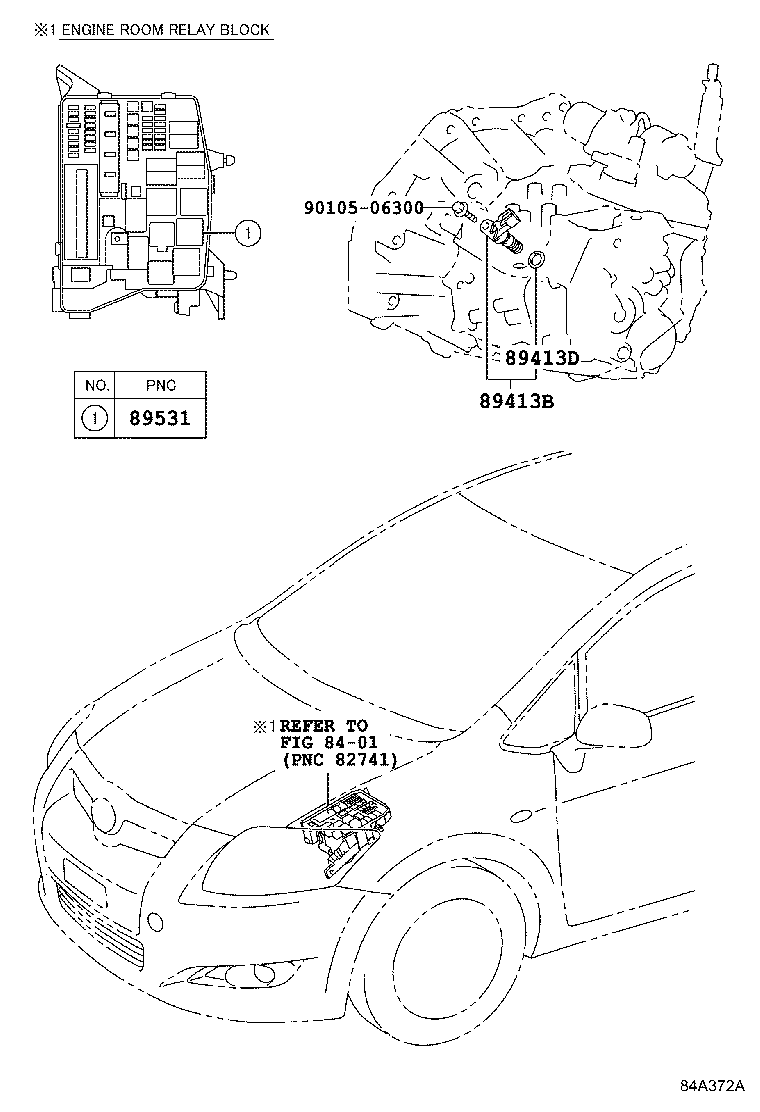

Click highlighted areas on diagram

diagram 8401 89413B 89413D 89531 9010506300
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-22010

NDE150,ZRE151..6FS

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NDE150,ZRE151..6FS

 1
89531 - RELAY, TRANSMISSION CONTROL
90987-02025

NDE150,ZRE151..6FS

 1
Common parts
90105-06300
Linked diagrams
8401
