ZRE151L-AHLDPW (2008)
Toyota Auris/Corolla (Jpp)
Production
Dec 2008
-
Oct 2009
Engine
1ZRFAE
Transmission
6FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610-0910)5F,6F

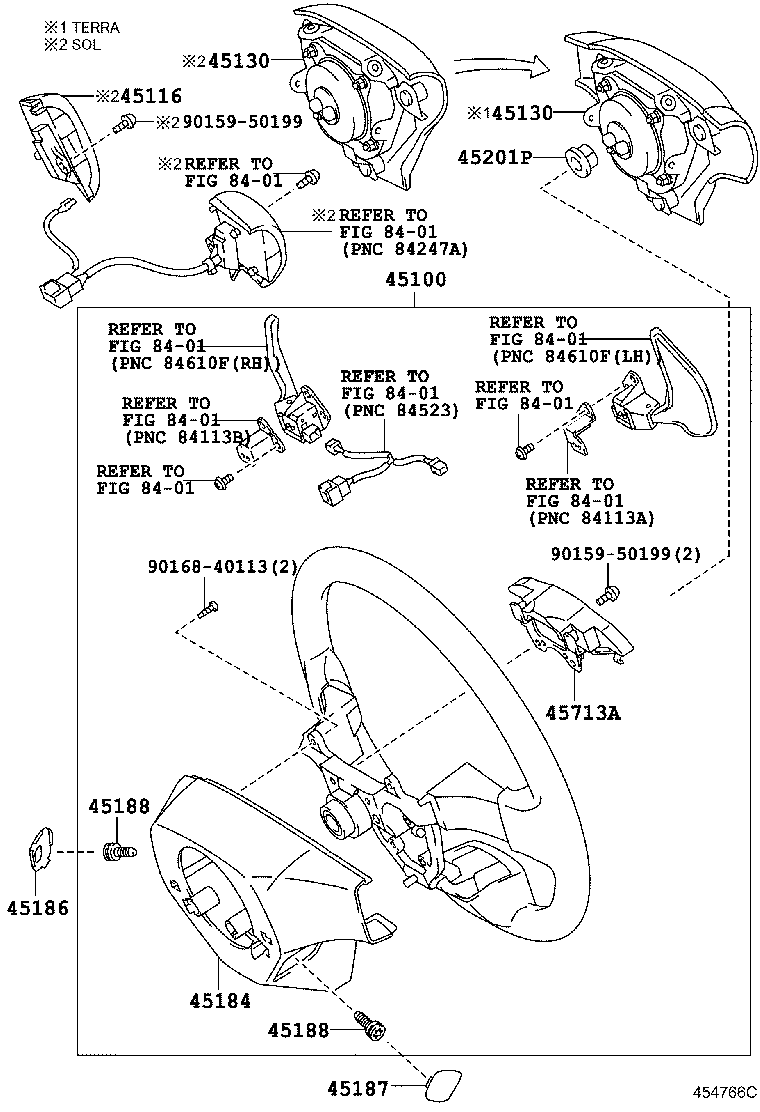

Click highlighted areas on diagram
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12D70B0 |
NDE150,ZRE151..6FS..TERRA 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-12350B0 |
NDE150,ZRE151..6FS..TERRA DK.GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-12080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0610-0910)5FS,6FS
Click highlighted areas on diagram
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12D70B0 |
NDE150,ZRE151..6FS..TERRA 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-12350B0 |
NDE150,ZRE151..6FS..TERRA DK.GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-12080 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||
