ZRE151L-AHLDPW (2008)
Toyota Auris/Corolla (Jpp)
(0812- )6FS
EC60A,EC65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-08002 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90331-25005 |
NDE150,ZRE151..6FS |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
NDE150,ZRE151..6FS |
1 | ||
| 90311-25028 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-12180 |
ZRE15#..6F *206 |
1 | ||
| 31115-20110 |
ZRE151..6F *201 |
1 | ||
| 31105-12220 |
NDE150,ZRE151 |
1 | ||
| 31115-20110 |
ZRE151..6FS |
1 | ||
| 41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR | ||||
| 41300-12030 |
ZRE151..6FS |
1 | ||
| 41300-12070 |
ZRE15#..6F *206 |
1 | ||
| 41300-12030 |
ZRE151..6F *201 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38004 |
ZRE151,ZZE150 |
1 | ||
| 90366-40129 |
NDE150,ZRE151..6FS |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
ZRE151,ZZE150 |
1 | ||
| 90366-42009 |
NDE150,ZRE151..6FS |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
NDE150,ZRE151..6FS T=2.1 |
1 | ||
| 90560-41003 |
NDE150,ZRE151,ZZE150 T=2.1 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-41016 |
NDE150,ZRE151,ZZE150 T=2.20,MARK CC |
1 | ||
| 90564-41019 |
NDE150,ZRE151,ZZE150 T=2.35,MARK FF |
1 | ||
| 90564-41020 |
NDE150,ZRE151,ZZE150 T=2.40,MARK GG |
1 | ||
| 90564-41026 |
NDE150,ZRE151,ZZE150 T=2.70,MARK NN |
1 | ||
| 90564-41014 |
NDE150,ZRE151,ZZE150 T=2.10,MARK AA |
1 | ||
| 90564-41017 |
NDE150,ZRE151,ZZE150 T=2.25,MARK DD |
1 | ||
| 90564-41025 |
NDE150,ZRE151,ZZE150 T=2.65,MARK MM |
1 | ||
| 90564-41015 |
NDE150,ZRE151,ZZE150 T=2.15,MARK BB |
1 | ||
| 90564-41022 |
NDE150,ZRE151,ZZE150 T=2.50,MARK JJ |
1 | ||
| 90564-41018 |
NDE150,ZRE151,ZZE150 T=2.30,MARK EE |
1 | ||
| 90564-41021 |
NDE150,ZRE151,ZZE150 T=2.45,MARK HH |
1 | ||
| 90564-41028 |
NDE150,ZRE151,ZZE150 T=2.80,MARK QQ |
1 | ||
| 90564-41023 |
NDE150,ZRE151,ZZE150 T=2.55,MARK KK |
1 | ||
| 90564-41031 |
NDE150,ZRE151,ZZE150 T=2.95,MARK TT |
1 | ||
| 90564-41029 |
NDE150,ZRE151,ZZE150 T=2.85,MARK RR |
1 | ||
| 90564-41030 |
NDE150,ZRE151,ZZE150 T=2.90,MARK SS |
1 | ||
| 90564-41032 |
NDE150,ZRE151,ZZE150 T=3.00,MARK UU |
1 | ||
| 90564-41024 |
NDE150,ZRE151,ZZE150 T=2.60,MARK LL |
1 | ||
| 90564-41027 |
NDE150,ZRE151,ZZE150 T=2.75,MARK PP |
1 | ||
| 90564-44009 |
NDE150,ZRE151..6FS T=2.125, MARK 1 |
1 | ||
| 90564-44010 |
NDE150,ZRE151..6FS T=2.150, MARK 2 |
1 | ||
| 90564-44013 |
NDE150,ZRE151..6FS T=2.225, MARK 5 |
1 | ||
| 90564-44008 |
NDE150,ZRE151..6FS T=2.100, MARK 0 |
1 | ||
| 90564-44014 |
NDE150,ZRE151..6FS T=2.250, MARK 6 |
1 | ||
| 90564-44023 |
NDE150,ZRE151..6FS T=2.475, MARK F |
1 | ||
| 90564-44011 |
NDE150,ZRE151..6FS T=2.175, MARK 3 |
1 | ||
| 90564-44018 |
NDE150,ZRE151..6FS T=2.350, MARK A |
1 | ||
| 90564-44015 |
NDE150,ZRE151..6FS T=2.275, MARK 7 |
1 | ||
| 90564-44016 |
NDE150,ZRE151..6FS T=2.300, MARK 8 |
1 | ||
| 90564-44019 |
NDE150,ZRE151..6FS T=2.375, MARK B |
1 | ||
| 90564-44022 |
NDE150,ZRE151..6FS T=2.450, MARK E |
1 | ||
| 90564-44021 |
NDE150,ZRE151..6FS T=2.425, MARK D |
1 | ||
| 90564-44020 |
NDE150,ZRE151..6FS T=2.400, MARK C |
1 | ||
| 90564-44031 |
NDE150,ZRE151..6FS T=2.675, MARK P |
1 | ||
| 90564-44030 |
NDE150,ZRE151..6FS T=2.650, MARK N |
1 | ||
| 90564-44028 |
NDE150,ZRE151..6FS T=2.600, MARK L |
1 | ||
| 90564-44017 |
NDE150,ZRE151..6FS T=2.325, MARK 9 |
1 | ||
| 90564-44032 |
NDE150,ZRE151..6FS T=2.700, MARK Q |
1 | ||
| 90564-44027 |
NDE150,ZRE151..6FS T=2.575, MARK K |
1 | ||
| 90564-44024 |
NDE150,ZRE151..6FS T=2.500, MARK G |
1 | ||
| 90564-44036 |
NDE150,ZRE151..6FS T=2.800, MARK U |
1 | ||
| 90564-44012 |
NDE150,ZRE151..6FS T=2.200, MARK 4 |
1 | ||
| 90564-44033 |
NDE150,ZRE151..6FS T=2.725, MARK R |
1 | ||
| 90564-44025 |
NDE150,ZRE151..6FS T=2.525, MARK H |
1 | ||
| 90564-44038 |
NDE150,ZRE151..6FS T=2.850, MARK W |
1 | ||
| 90564-44034 |
NDE150,ZRE151..6FS T=2.750, MARK S |
1 | ||
| 90564-44037 |
NDE150,ZRE151..6FS T=2.825, MARK V |
1 | ||
| 90564-44029 |
NDE150,ZRE151..6FS T=2.625, MARK M |
1 | ||
| 90564-44026 |
NDE150,ZRE151..6FS T=2.550, MARK J |
1 | ||
| 90564-44035 |
NDE150,ZRE151..6FS T=2.775, MARK T |
1 | ||
| 41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON | ||||
| 90366-40130 |
NDE150,ZRE151..6FS |
1 | ||
| 41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR | ||||
| 90366-42010 |
NDE150,ZRE151..6FS |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-20130 |
NDE150,ZRE151..6F *201 |
2 | ||
| 41331-20130 |
NDE150,ZRE151..6FS |
2 | ||
| 41331-12150 |
NDE150,ZRE15#..6F *206 |
2 | ||
| 41331-12011 |
ZRE151,ZZE150 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-20130 |
NDE150,ZRE151..6F *201 |
2 | ||
| 41331-20130 |
NDE150,ZRE151..6FS |
2 | ||
| 41331-12150 |
NDE150,ZRE15#..6F *206 |
2 | ||
| 41331-12011 |
ZRE151,ZZE150 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12100 |
NDE150,ZRE15#..6F *206 |
2 | ||
| 41341-12030 |
ZRE151,ZZE150 |
2 | ||
| 41341-20050 |
NDE150,ZRE151..6F *201 |
2 | ||
| 41341-20050 |
NDE150,ZRE151..6FS |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12100 |
NDE150,ZRE15#..6F *206 |
2 | ||
| 41341-12030 |
ZRE151,ZZE150 |
2 | ||
| 41341-20050 |
NDE150,ZRE151..6F *201 |
2 | ||
| 41341-20050 |
NDE150,ZRE151..6FS |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90250-06058 |
ADE150..DCRL;NDE150,ZRE151..6FS |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-32020 |
NDE150,ZRE151..6FS |
1 | ||
| 41342-12140 |
ZRE151,ZZE150 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
ZRE151,ZZE150 |
2 | ||
| 41351-32010 |
NDE150,ZRE151..6F *201 |
2 | ||
| 41351-32010 |
NDE150,ZRE15#..6F *206 |
2 | ||
| 41351-32010 |
NDE150,ZRE151..6FS |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
ZRE151,ZZE150 |
2 | ||
| 41351-32010 |
NDE150,ZRE151..6F *201 |
2 | ||
| 41351-32010 |
NDE150,ZRE15#..6F *206 |
2 | ||
| 41351-32010 |
NDE150,ZRE151..6FS |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
NDE150,ZRE151,ZZE150 T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
NDE150,ZRE151,ZZE150 T=1.20,MARK 04 |
2 | ||
| 41361-22020 |
NDE150,ZRE151,ZZE150 T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NDE150,ZRE151,ZZE150 T=1.10,MARK 03 |
2 | ||
| 41361-22140 |
NDE150,ZRE151,ZZE150 T=0.95,MARK 14 |
2 | ||
| 41361-22160 |
NDE150,ZRE151,ZZE150 T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
NDE150,ZRE151..6FS T=0.95,MARK 14 |
2 | ||
| 41361-22150 |
NDE150,ZRE151..6FS T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
NDE150,ZRE151..6FS T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
NDE150,ZRE151..6FS T=1.15,MARK 16 |
2 | ||
| 41361-22020 |
NDE150,ZRE151..6FS T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NDE150,ZRE151..6FS T=1.10,MARK 03 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
NDE150,ZRE151,ZZE150 T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
NDE150,ZRE151,ZZE150 T=1.20,MARK 04 |
2 | ||
| 41361-22020 |
NDE150,ZRE151,ZZE150 T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NDE150,ZRE151,ZZE150 T=1.10,MARK 03 |
2 | ||
| 41361-22140 |
NDE150,ZRE151,ZZE150 T=0.95,MARK 14 |
2 | ||
| 41361-22160 |
NDE150,ZRE151,ZZE150 T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
NDE150,ZRE151..6FS T=0.95,MARK 14 |
2 | ||
| 41361-22150 |
NDE150,ZRE151..6FS T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
NDE150,ZRE151..6FS T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
NDE150,ZRE151..6FS T=1.15,MARK 16 |
2 | ||
| 41361-22020 |
NDE150,ZRE151..6FS T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NDE150,ZRE151..6FS T=1.10,MARK 03 |
2 | ||

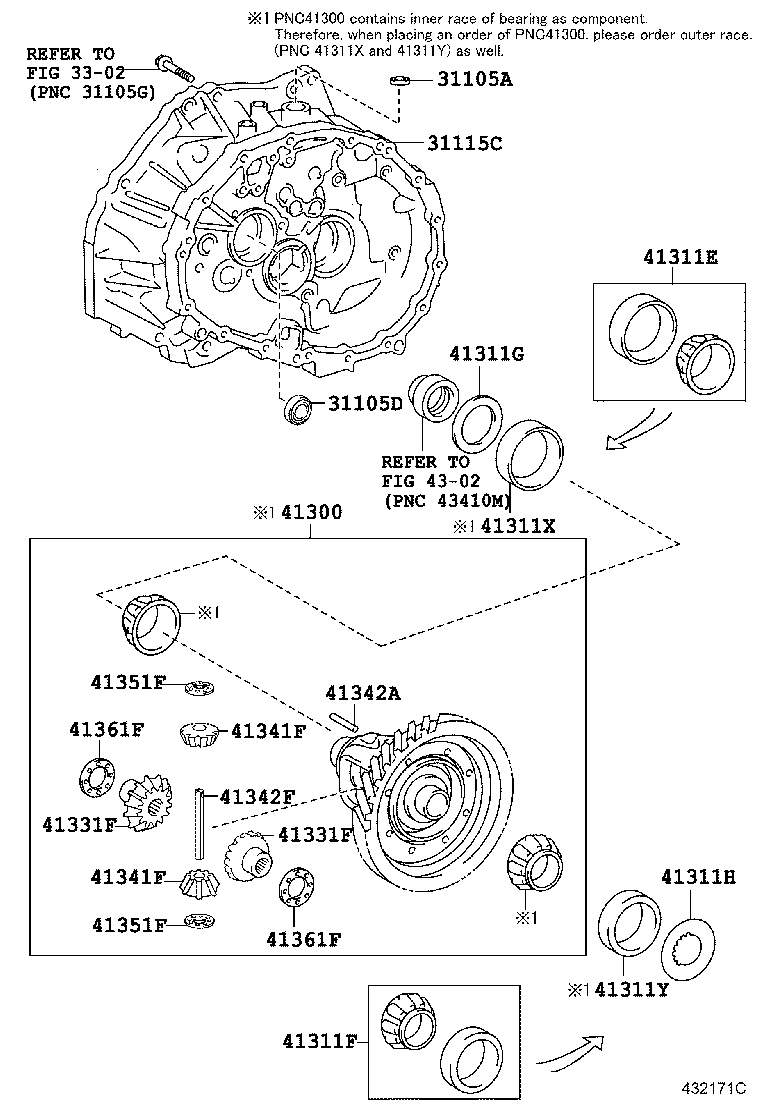

| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
