ZRE151L-AHLDPW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFAE
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )6FS

Click highlighted areas on diagram

EC60A,EC65A

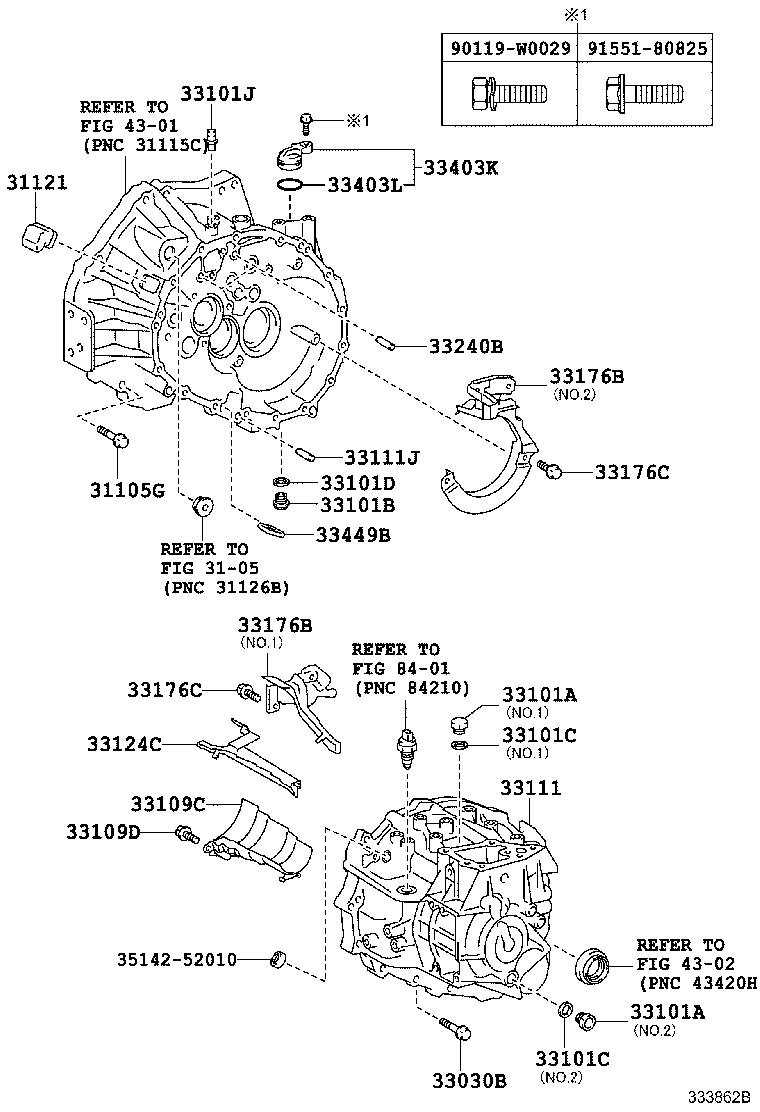

diagram 3105 31105G 31121 33030B 33101A 33101A 33101B 33101C 33101C 33101D 33101J 33109C 33109D 33111 33111J 33124C 33176B 33176B 33176C 33176C 33240B 33403K 33403L 33449B 3514252010 4301 4302 8401 90119W0029 9155180825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61045

NDE150,ZRE151

*10-1.25PX45-30

 7
91552-81045

NDE150,ZRE15#

*10-1.25PX45-26

 7
31121 - COVER, CLUTCH HOUSING, NO.1
31121-52020

NDE150,ZRE151..6FS

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08353

NDE150,ZRE151,ZZE150

*8-1.25PX50-30,NO.1

 13
91551-10840

NDE150,ZRE151..6FS

*8-1.25PX40-22

 16
90105-08430

NDE150,ZRE151,ZZE150

*8-1.25PX45-27.5,NO.2

 3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NDE150,ZRE151,ZZE150

 1
90341-18033

NDE150,ZRE151..6FS

NO.2

 1
90341-14032

NDE150,ZRE151..6FS

NO.1

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NDE150,ZRE151,ZZE150

 1
90341-18033

NDE150,ZRE151..6FS

NO.2

 1
90341-14032

NDE150,ZRE151..6FS

NO.1

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18016

NDE150,ZRE151..6FS

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

NDE150,ZRE151,ZZE150

 1
90430-18008

NDE150,ZRE151..6FS

NO.2

 1
90430-14003

NDE150,ZRE151..6FS

NO.1

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

NDE150,ZRE151,ZZE150

 1
90430-18008

NDE150,ZRE151..6FS

NO.2

 1
90430-14003

NDE150,ZRE151..6FS

NO.1

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
90430-18008

NDE150,ZRE151..6FS

 1
33101J - PLUG, BREATHER
90930-03133

NDE150,ZRE151..6FS

 1
33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109-20020

NDE150,ZRE151..6FS

 1
33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
91551-80816

NDE150,ZRE151..6FS

 4
33111 - CASE, MANUAL TRANSMISSION
33111-52130

NDE150,ZRE151..6FS

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NDE150,ZRE151,ZZE150

L=23,OD=8

 4
90250-08054

NDE150,ZRE151..6FS

L=23,OD=8

 3
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

NDE150,ZRE151,ZZE150

 1
33124-52030

NDE150,ZRE151..6FS

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-20090

NDE150,ZRE151..6FS

NO.2

 1
33176-20080

NDE150,ZRE151..6FS

NO.1

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-20090

NDE150,ZRE151..6FS

NO.2

 1
33176-20080

NDE150,ZRE151..6FS

NO.1

 1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91551-80816

NDE150,ZRE151..6FS

 6
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91551-80816

NDE150,ZRE151..6FS

 6
33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
90250-08054

NDE150,ZRE151..6FS

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

NDE150,ZRE151,ZZE150

 1
33403L - RING, O
96711-24030

NDE150,ZRE151,ZZE150

 1
33449B - MAGNET, TRANSMISSION
33449-20010

NDE150,ZRE151..6FS

 1
Common parts
35142-52010
90119-W0029
91551-80825
Linked diagrams
3105
4301
4302
8401
