ZRE151L-AHLDPW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFAE
Transmission 6FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )6FS

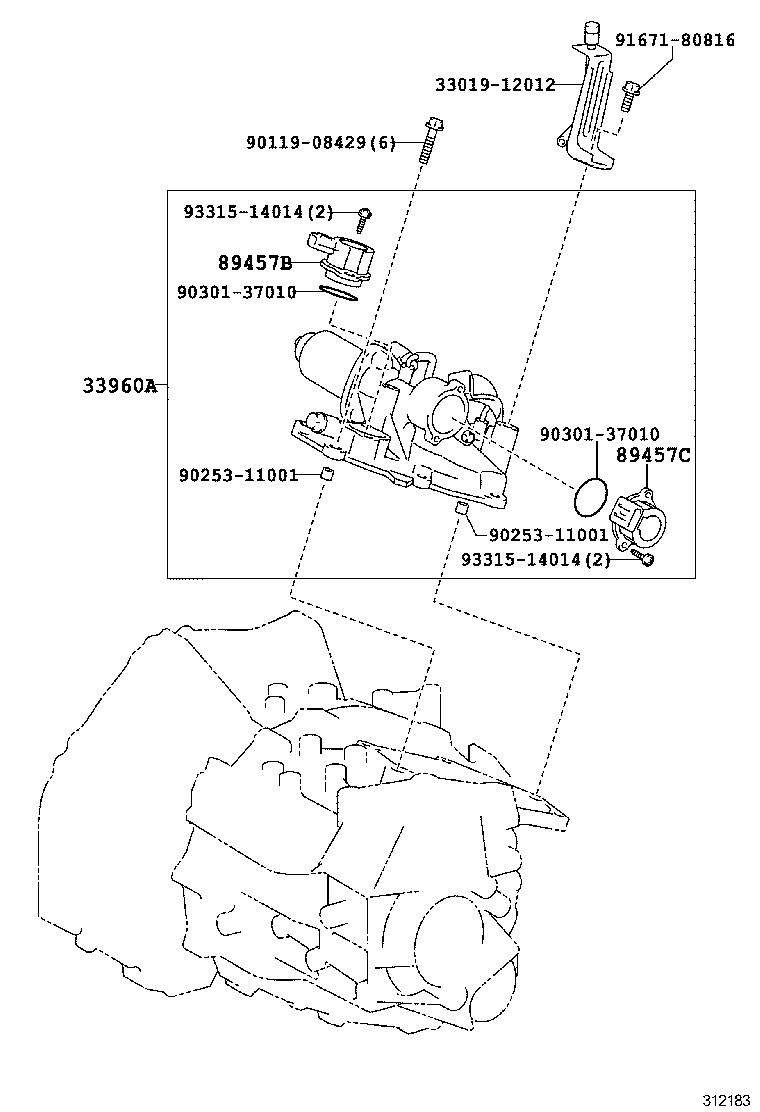

Click highlighted areas on diagram

diagram 3301912012 33960A 89457B 89457C 9011908429 9025311001 9025311001 9030137010 9030137010 9167180816 9331514014 9331514014
Part # Description Qty Price
33960A - ACTUATOR ASSY, SHIFT & SELECT
33960-12022

NDE150,ZRE151..6FS

 1
89457B - STROKE SENSOR, SHIFT
89457-52010

NDE150,ZRE151..6FS

 1
89457C - STROKE SENSOR, SELECT
89457-12020

NDE150,ZRE151..6FS

 1
Common parts
33019-12012
90119-08429
90253-11001
90301-37010
91671-80816
93315-14014
