ZRE151L-AHLDPW (2008)
Toyota Auris/Corolla (Jpp)
Production
Dec 2008
-
Oct 2009
Engine
1ZRFAE
Transmission
6FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0812- )6FS

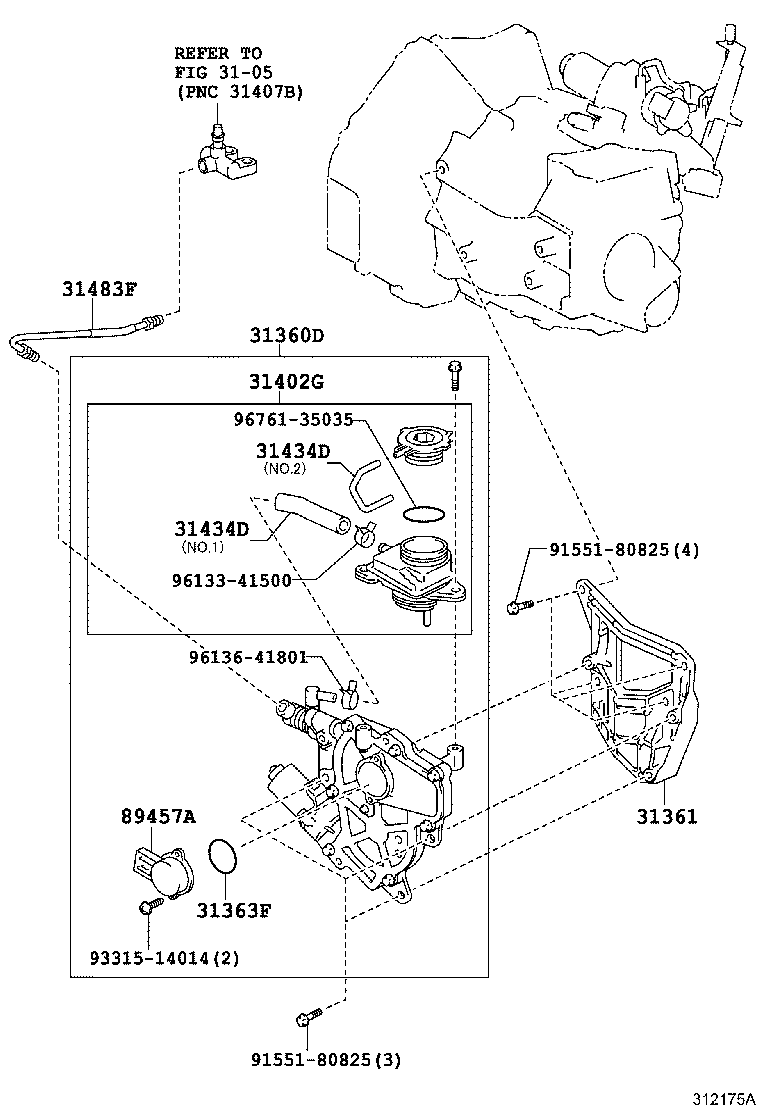

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31360D - ACTUATOR ASSY, CLUTCH | ||||
| 31360-52041 |
NDE150,ZRE151..6FS |
1 | ||
| 31361 - BRACKET, CLUTCH ACTUATOR, NO.1 | ||||
| 31361-12010 |
NDE150,ZRE151..6FS |
1 | ||
| 31363F - RING, O(FOR CLUTCH ACTUATOR ACCUMULATOR) | ||||
| 90301-37010 |
NDE150,ZRE151..6FS |
1 | ||
| 31402G - RESERVOIR SET, MASTER CYLINDER | ||||
| 31402-52011 |
NDE150,ZRE151..6FS |
1 | ||
| 31434D - TUBE, CLUTCH RESERVOIR | ||||
| 31434-52120 |
NDE150,ZRE151..6FS NO.1 |
1 | ||
| 31435-52010 |
NDE150,ZRE151..6FS NO.2 |
1 | ||
| 31434D - TUBE, CLUTCH RESERVOIR | ||||
| 31434-52120 |
NDE150,ZRE151..6FS NO.1 |
1 | ||
| 31435-52010 |
NDE150,ZRE151..6FS NO.2 |
1 | ||
| 31483F - TUBE, BLEEDER CLUTCH RELEASE | ||||
| 31483-12160 |
NDE150,ZRE151..6FS |
1 | ||
| 89457A - STROKE SENSOR, CLUTCH | ||||
| 89457-52010 |
NDE150,ZRE151..6FS |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| 93315-14014 | ||||
| 96133-41500 | ||||
| 96136-41801 | ||||
| 96761-35035 | ||||
| Linked diagrams | ||||
| 3105 | ||||
