ZRE151L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)
ILLUST NO. 4 OF 8(0610- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12B10 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82151-12B20 |
NDE150,ZRE151,ZZE150..LHD OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER |
1 | ||
| 82151-12N80 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12B30 |
NDE150,ZRE151,ZZE150..LHD..SOL |
1 | ||
| 82152-12B40 |
ZRE151..LHD..SOL STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82152-12N30 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12530 |
NDE150,ZRE151,ZZE150..SOL |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12480 |
NDE150,ZRE151,ZZE150..SOL |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12590 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12660 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-12410 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

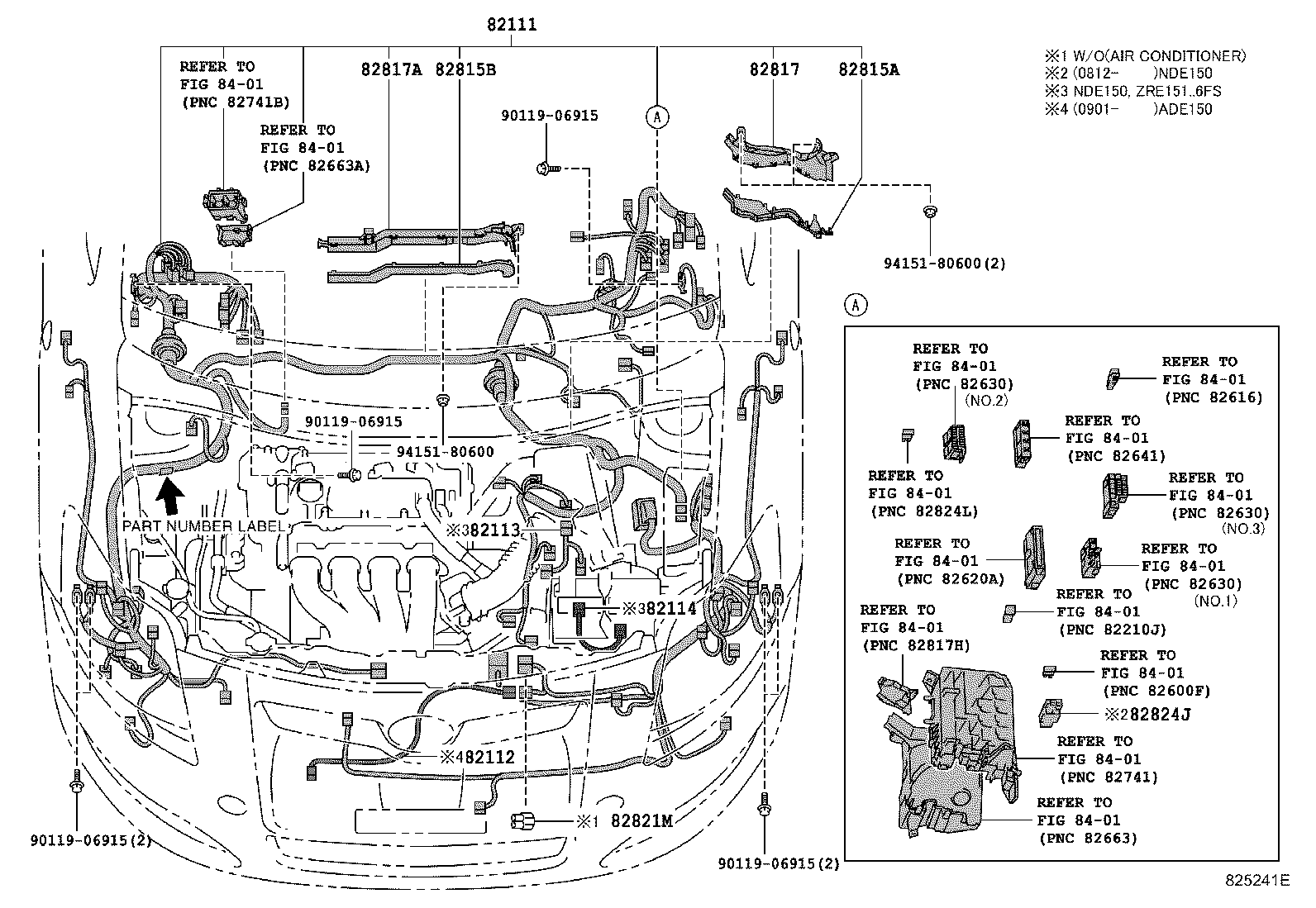

ILLUST NO. 1 OF 8(0610- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1EF40 |
ZRE151..HTWC |
1 | ||
| 82111-1EF40 |
ZRE151..HTWC PART NUMBER LABEL=82111-1EF40 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12130 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12140 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12A90 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B00 |
ZRE151,ZZE150..LHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 8(0610- )ZRE151..HTWC
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12L20 |
ZRE151..HTWC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12460 |
ZRE151,ZZE150 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZRE151 |
1 | ||
| 82124-02090 |
ZRE15# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-12440 |
ZRE151,ZZE150 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12860 |
ZRE151 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12B90 |
ZRE151,ZZE150 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
ZRE151 |
1 | ||
| 82821-12560 |
ZRE151..HTWC |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
ZRE151..HTWC |
1 | ||
| 82823-12090 |
ZRE151,ZZE150 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 82712-12070 | ||||
| 82815-12170 | ||||
| 90119-06915 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||

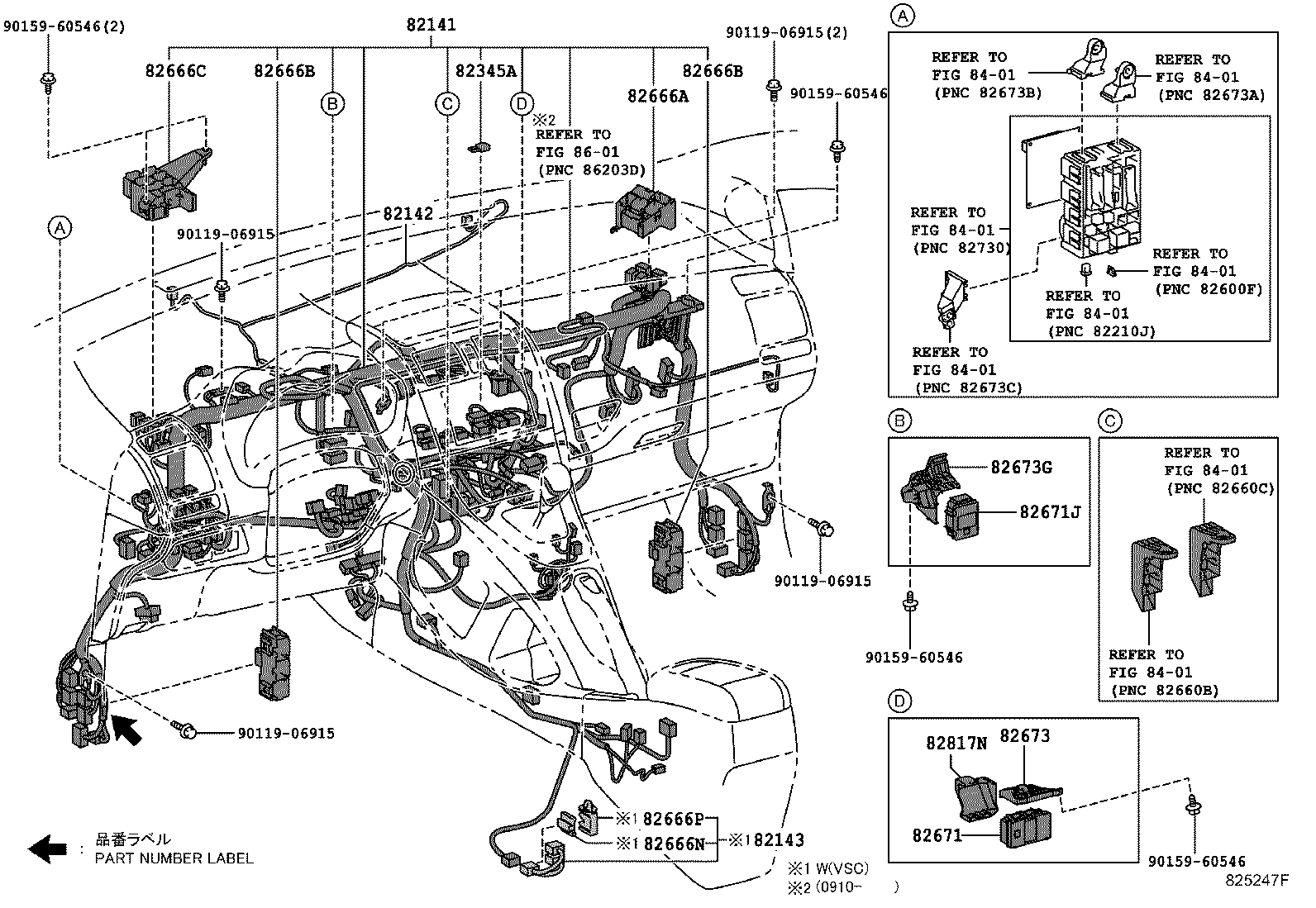

ILLUST NO. 3 OF 8(0610- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1KE60 |
ADE150,ZRE15#..LHD..6F..SOL..(DCRL,HTWC,HTWVM) AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82141-1KF20 |
ADE150,ZRE15#..LHD..6F..SOL..(DCRL,HTWC,HTWVM) INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82141-1KE60 |
ADE150,ZRE15#..LHD..6F..SOL..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82141-1HY00 OR -1KE60 |
1 | ||
| 82141-1KF20 |
ADE150,ZRE15#..LHD..6F..SOL..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82141-1HY60 OR -1KF20 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12380 |
NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82142-12370 |
NDE150,ZRE151,ZZE150..SOL INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER (DUAL MODE CONTROL) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-12210 |
ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82143-12210 |
ZRE151..LHD..SOL VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH |
1 | ||
| 82143-12210 |
ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82143-12210 |
ZRE151..LHD..SOL COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12350 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12380 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-21040 |
NDE150,ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82666-21040 |
ZRE151..LHD..SOL VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH |
1 | ||
| 82666-21040 |
NDE150,ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82666-21040 |
ZRE151..LHD..SOL COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-35040 |
NDE150,ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82666-35040 |
ZRE151..LHD..SOL COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH |
1 | ||
| 82666-35040 |
NDE150,ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82666-35040 |
ZRE151..LHD..SOL VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12260 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-12250 |
NDE150..LHD;ZRE151..5FS..TERRA;ZRE151,ZZE150..LHD..SOL |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-12140 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82673G - BRACKET, JUNCTION BLOCK | ||||
| 82673-12130 |
NDE150..LHD;ZRE151..5FS..TERRA;ZRE151,ZZE150..LHD..SOL |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12D10 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60546 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

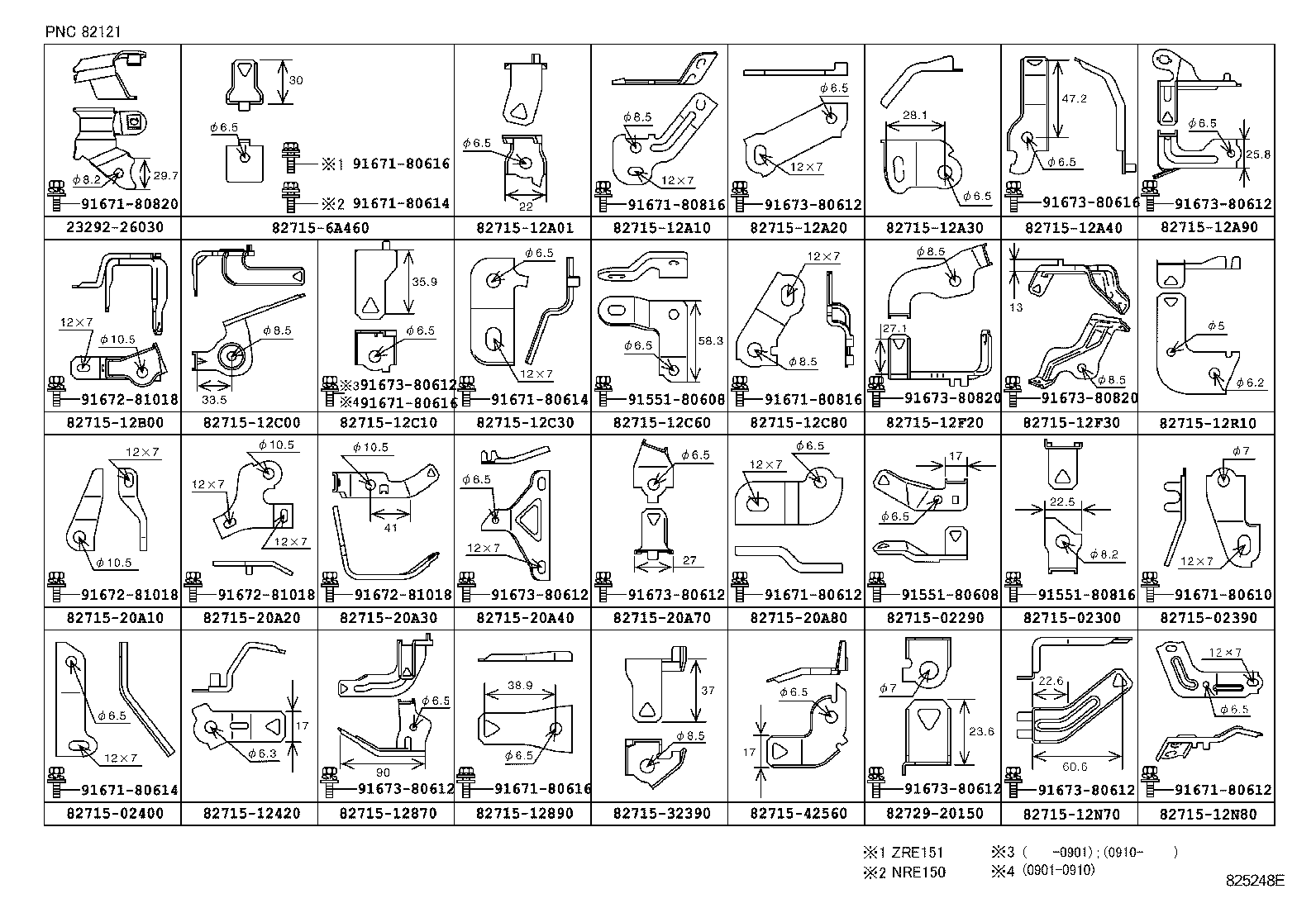

ILLUST NO. 6 OF 8(0610- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23292-26030 | ||||
| 82715-02290 | ||||
| 82715-02300 | ||||
| 82715-02390 | ||||
| 82715-02400 | ||||
| 82715-12420 | ||||
| 82715-12870 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A10 | ||||
| 82715-12A20 | ||||
| 82715-12A30 | ||||
| 82715-12A40 | ||||
| 82715-12A90 | ||||
| 82715-12B00 | ||||
| 82715-12C00 | ||||
| 82715-12C10 | ||||
| 82715-12C30 | ||||
| 82715-12C60 | ||||
| 82715-12C80 | ||||
| 82715-12F20 | ||||
| 82715-12F30 | ||||
| 82715-12N70 | ||||
| 82715-12N80 | ||||
| 82715-12R10 | ||||
| 82715-20A10 | ||||
| 82715-20A20 | ||||
| 82715-20A30 | ||||
| 82715-20A40 | ||||
| 82715-20A70 | ||||
| 82715-20A80 | ||||
| 82715-32390 | ||||
| 82715-42560 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 91551-80608 | ||||
| 91551-80816 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
ILLUST NO. 6 OF 8(0610- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 53614-12040 | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-12840 | ||||
| 82715-12E20 | ||||
| 82715-12F40 | ||||
| 82715-12L40 | ||||
| 82715-12L90 | ||||
| 82715-12N20 | ||||
| 82715-12N30 | ||||
| 82715-12N40 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 7 OF 8(0610- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52130 | ||||
| 82824-60460 | ||||
| 90080-98298 | ||||
| 90980-10795 | ||||
| 90980-10860 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11075 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-11967 | ||||
| 90980-WA052 | ||||
ILLUST NO. 6 OF 8(0610- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82715-12A50 | ||||
| 82715-12B70 | ||||
| 82715-12B80 | ||||
| 82715-12C70 | ||||
| 82715-12G00 | ||||
| 82715-12N00 | ||||
| 82715-12N40 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P10 | ||||
| 82715-12P20 | ||||
| 82715-12P30 | ||||
| 82715-12P50 | ||||
| 82715-12P60 | ||||
| 82715-12P70 | ||||
| 82715-12P80 | ||||
| 82715-12P90 | ||||
| 82715-12Q30 | ||||
| 82715-12Q41 | ||||
| 82715-12Q60 | ||||
| 82715-12Q70 | ||||
| 82715-28L90 | ||||
| 82715-42740 | ||||
| 82715-52S30 | ||||
| 82715-52U00 | ||||
| 90119-08C59 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||

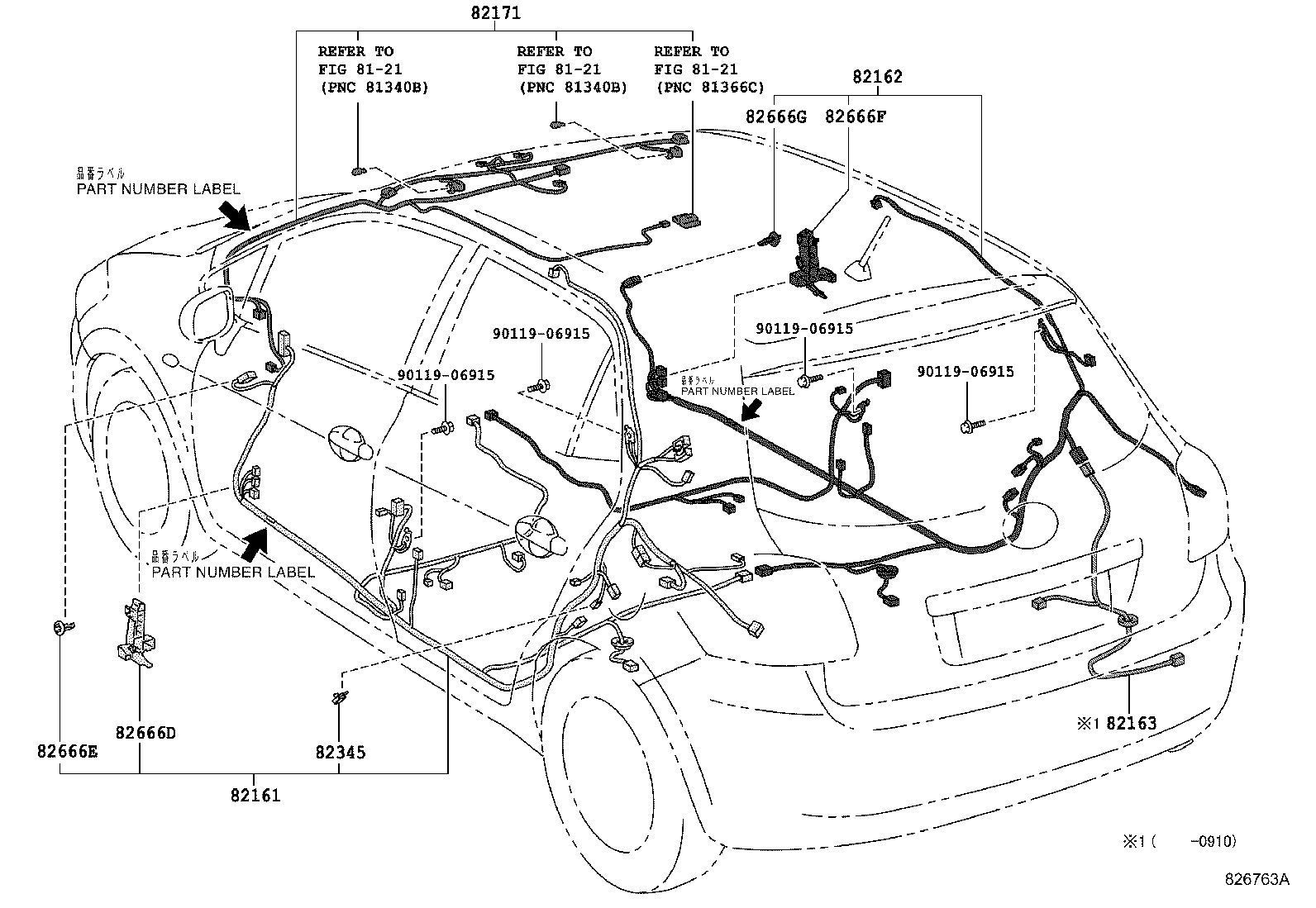

ILLUST NO. 5 OF 8(0610- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-12C50 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82161-12C70 |
NDE150,ZRE151,ZZE150..LHD..SOL SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 82161-12C50 |
NDE150,ZRE151,ZZE150..LHD PART NUMBER LABEL=82161-12C50 |
1 | ||
| 82161-12C70 |
NDE150,ZRE151,ZZE150..LHD..SOL PART NUMBER LABEL=82161-12C70 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12630 |
NDE150,ZRE151,ZZE150..LHD |
1 | ||
| 82162-12650 |
NDE150,ZRE151,ZZE150..LHD..SOL SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 82162-12670 |
ZRE151..LHD..SOL SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82162-12660 |
ZRE151..LHD..SOL STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82162-12J70 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82162-12630 |
NDE150,ZRE151,ZZE150..LHD PART NUMBER LABEL=82162-12630 |
1 | ||
| 82162-12660 |
ZRE151..LHD..SOL PART NUMBER LABEL=82162-12660 |
1 | ||
| 82162-12670 |
ZRE151..LHD..SOL PART NUMBER LABEL=82162-12670 |
1 | ||
| 82162-12650 |
NDE150,ZRE151,ZZE150..LHD..SOL PART NUMBER LABEL=82162-12650 |
1 | ||
| 82162-12J80 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82162-12J80 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82162-12J80 |
1 | ||
| 82162-12J70 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82162-12J70 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-12130 |
ZRE151..LHD..SOL HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82163-12190 |
ZRE151..SOL STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82163-12130 |
ZRE151..LHD..SOL HEADLAMP-DISCHARGE |
1 | ||
| 82163-12190 |
ADE150,ZRE15#..SOL..(DCRL,HTWC,HTWVM) STARTING SYSTEM-PUSH BUTTON(SMART ENTRY) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12A30 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) AUDIO-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-12A90 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) MOON ROOF-WITH(TILT & SLIDE)&AUDIO-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-12A50 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-12C40 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUDIO-MAP NAVIGATION 6SPEAKER |
1 | ||
| 82171-12A90 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82171-12A90 |
1 | ||
| 82171-12A50 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82171-12A50 |
1 | ||
| 82171-12A30 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82171-12A30 |
1 | ||
| 82171-12C40 |
ADE150,ZRE15#..LHD..SOL..(DCRL,HTWC,HTWVM) PART NUMBER LABEL=82171-12C40 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12400 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-12370 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 8 OF 8(0610- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11856 | ||||
| 90980-11909 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
