ZRE151L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)

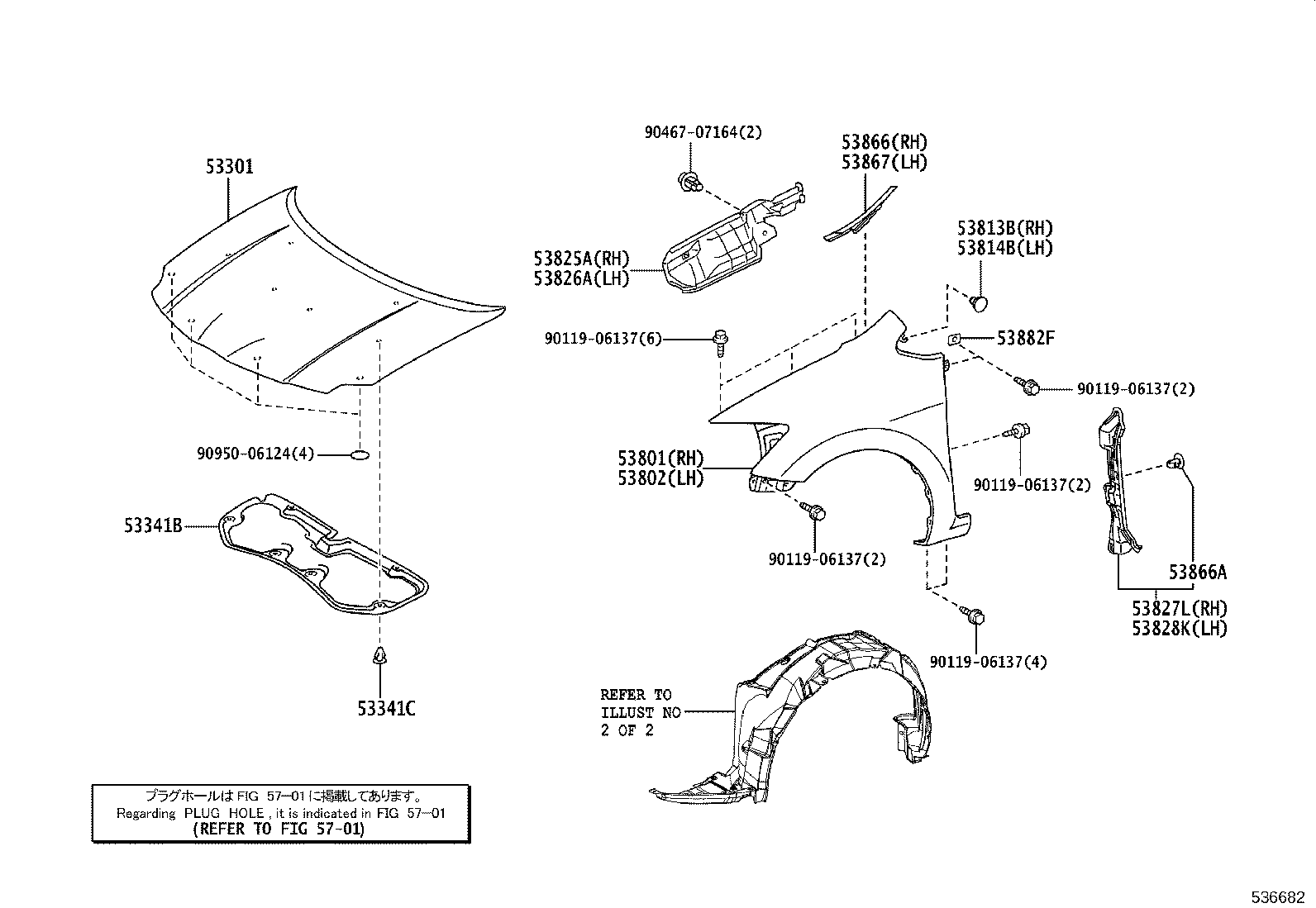

ILLUST NO. 1 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53341B - INSULATOR, HOOD | ||||
| 53341-12240 |
NDE150,ZRE151 |
1 | ||
| 53341-12240 |
NDE150;ADE150,ZRE15#..DCRL,HTWC,HTWVM |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
NDE150;ADE150,ZRE15#..DCRL,HTWC,HTWVM (J) |
6 | ||
| 90467-09050 |
NDE150,ZRE151 (L) |
6 | ||
| 90467-W0003 |
NDE150,ZRE151 (J) |
6 | ||
| 90467-W0003 |
NDE150;ADE150,ZRE15#..DCRL,HTWC,HTWVM (L) |
6 | ||
| 53813B - EXTENSION, FRONT FENDER, RH | ||||
| 53813-52020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 53814B - EXTENSION, FRONT FENDER, LH | ||||
| 53813-52020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-12020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-12030 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 90467-08136 |
ADE150,NDE150,ZRE151,ZZE150 |
2 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NDE150,ZRE151,ZZE150 |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90467-07164 | ||||
| 90950-06124 | ||||
| Linked diagrams | ||||
| 5701 | ||||

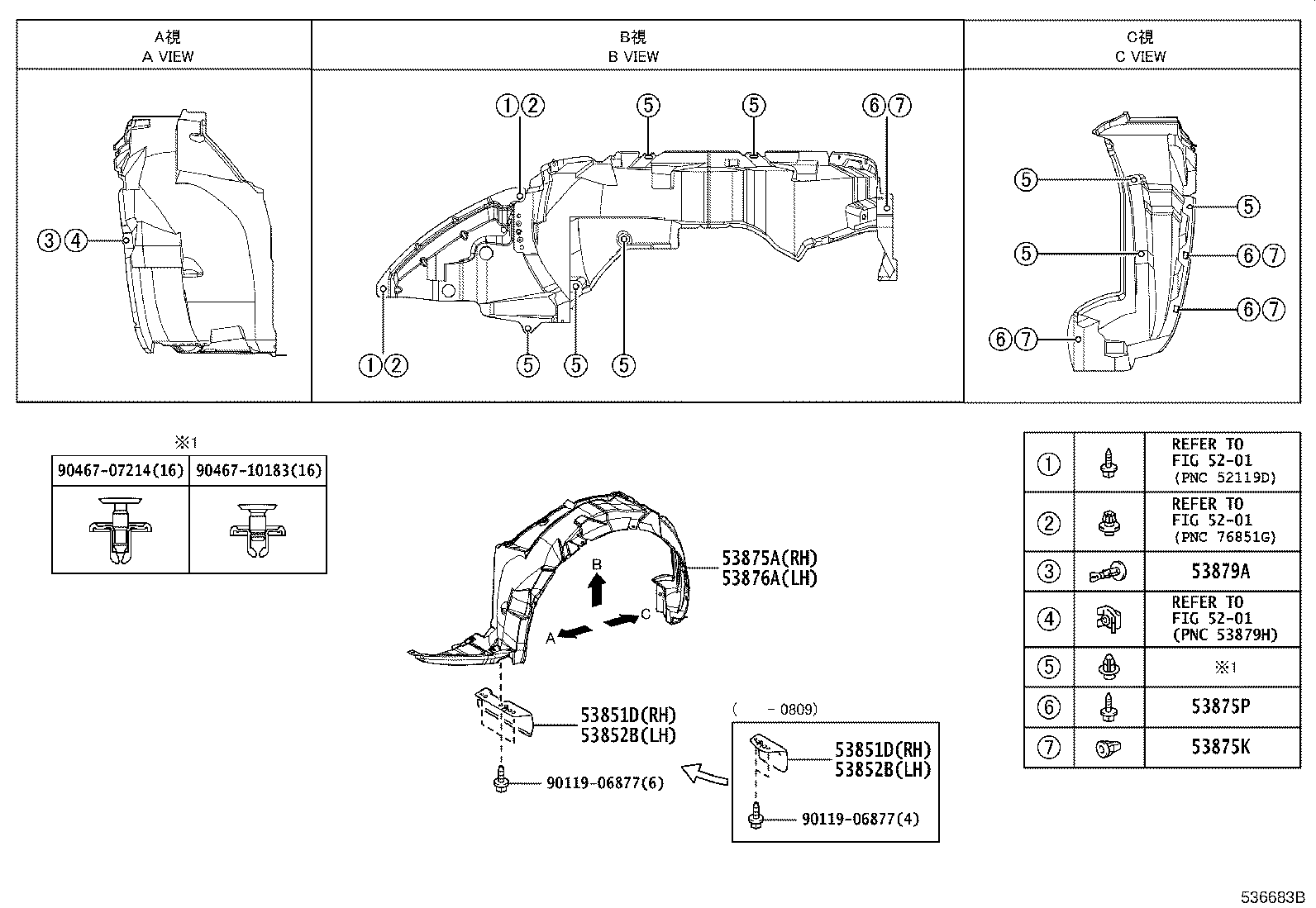

ILLUST NO. 2 OF 2(0610- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-12080 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-12080 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-12070 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-12070 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-12390 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 53875-12510 |
NRE150,ZRE15# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-12380 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 53876-12490 |
NRE150,ZRE15# |
1 | ||
| Common parts | ||||
| 90119-06877 | ||||
| 90467-07214 | ||||
| 90467-10183 | ||||
| Linked diagrams | ||||
| 5201 | ||||
