ZRE151L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

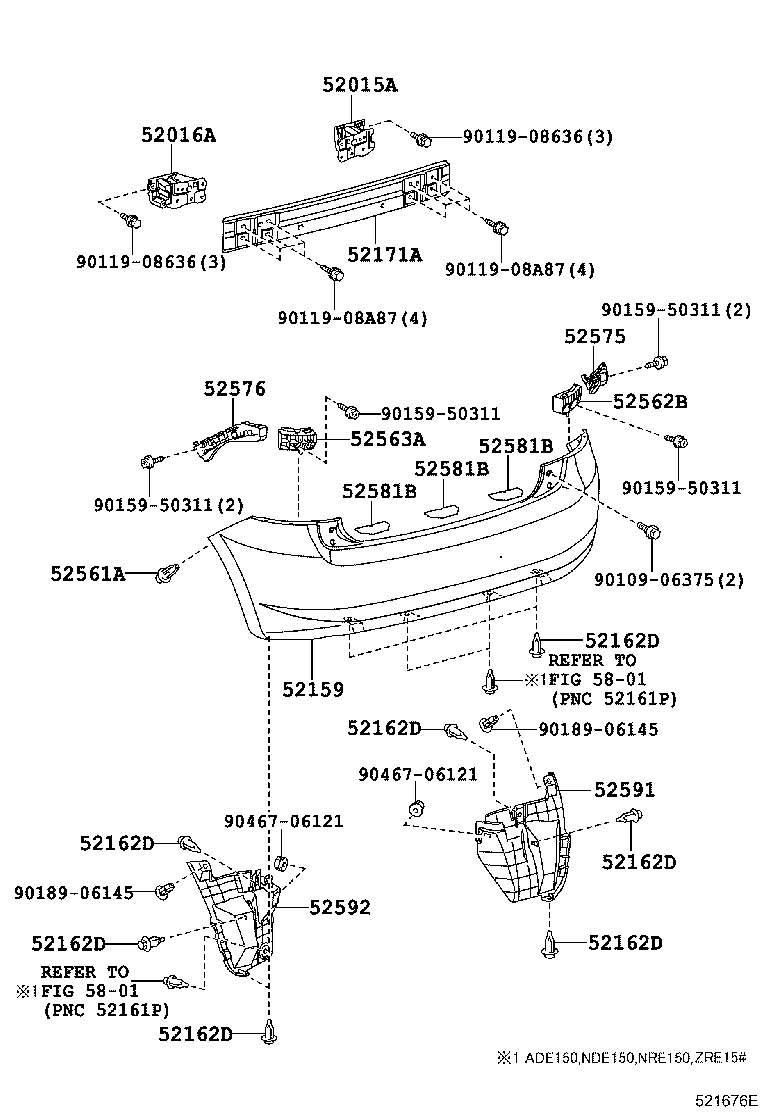

Click highlighted areas on diagram

diagram 52015A 52016A 52159 52162D 52162D 52162D 52162D 52162D 52162D 52162D 52171A 52561A 52562B 52563A 52575 52576 52581B 52581B 52581B 52591 52592 5801 5801 9010906375 9011908636 9011908636 9011908A87 9011908A87 9015950311 9015950311 9015950311 9015950311 9018906145 9018906145 9046706121 9046706121
Part # Description Qty Price
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-12240

NDE150,ZRE151,ZZE150

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-12110

NDE150,ZRE151,ZZE150

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-12030

NDE150,ZRE151,ZZE150

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-12150

NDE150,ZRE151,ZZE150

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-12150

NDE150,ZRE151,ZZE150

 1
52581B - PROTECTOR, REAR BUMPER
52581-13030

NDE150,ZRE151,ZZE150

 3
52581B - PROTECTOR, REAR BUMPER
52581-13030

NDE150,ZRE151,ZZE150

 3
52581B - PROTECTOR, REAR BUMPER
52581-13030

NDE150,ZRE151,ZZE150

 3
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12180

NDE150,ZRE151,ZZE150

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-12100

NDE150,ZRE151,ZZE150

 1
Common parts
90109-06375
90119-08636
90119-08A87
90159-50311
90189-06145
90467-06121
Linked diagrams
5801
