ZRE151L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)5F,6F

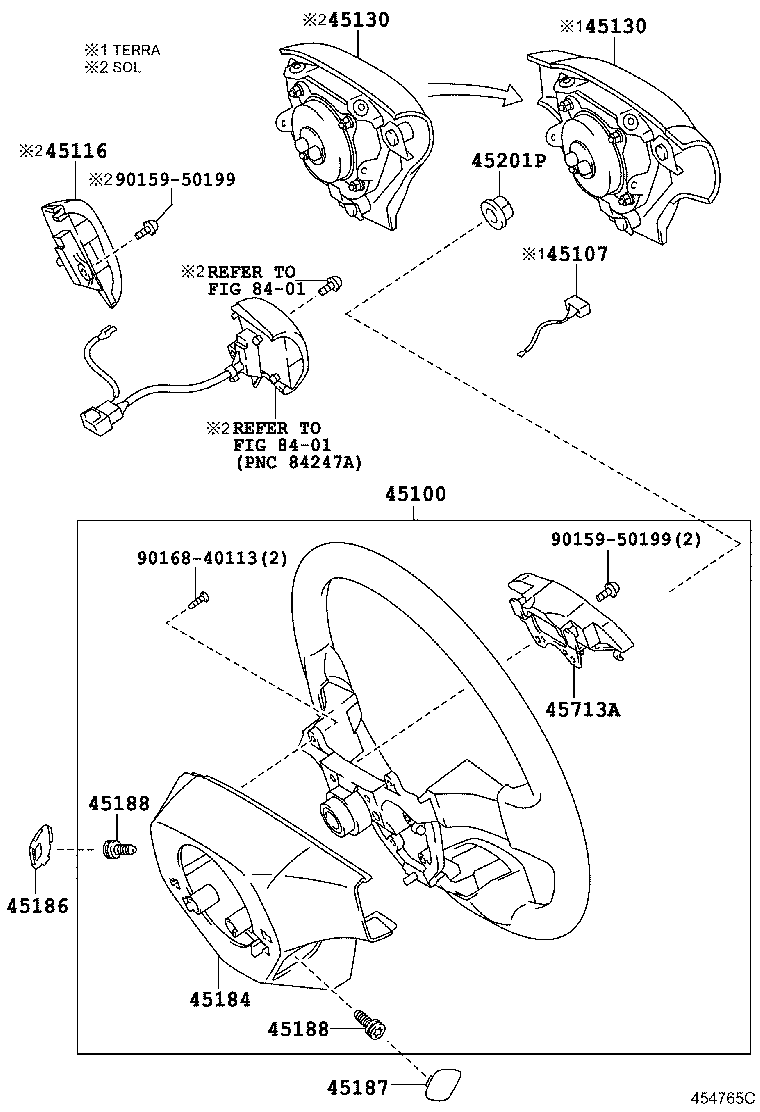

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45107 45116 45130 45130 45184 45186 45187 45188 45188 45201P 45713A 8401 8401 9015950199 9015950199 9016840113
Part # Description Qty Price
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-52030

NDE150,ZRE151,ZZE150..SOL

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-12010B0

ADE150,ZRE15#..SOL..(DCRL,HTWC,HTWVM)

CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

NDE150,ZRE151,ZZE150

 1
45713A - DAMPER, STEERING SHAKE
45713-12080

NDE150,ZRE151,ZZE150

 1
Common parts
90159-50199
90168-40113
Linked diagrams
8401
