ZRE151L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

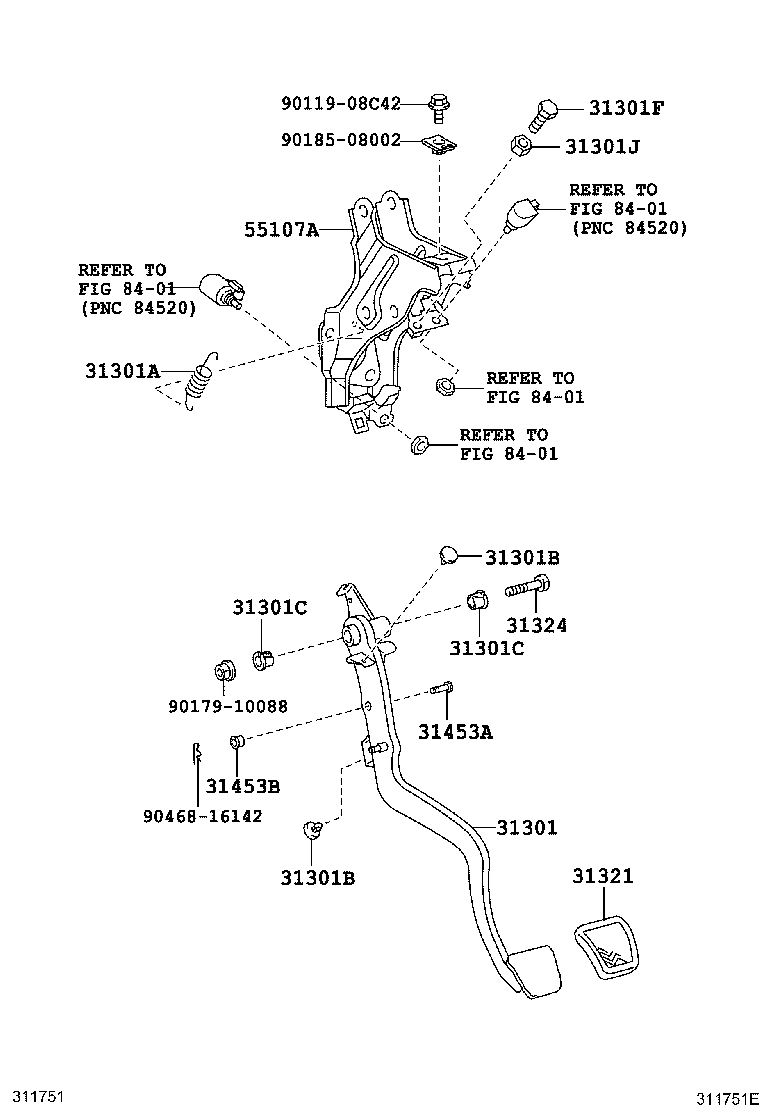

ILLUST NO. 1 OF 2(0610- )NRE150,ZRE151,ZZE150..LHD..5F,6F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31453A 31453B 55107A 8401 8401 8401 8401 9011908C42 9017910088 9018508002 9046816142
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12511

NRE150,ZRE151..LHD..6F

 1
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10055

ADE150,NDE150,NRE150,ZRE15#..LHD..6F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
46441-12020

ADE150,NDE150,NRE150,ZRE15#..LHD..6F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12281

NRE150,ZRE151..LHD..6F

 1
Common parts
90119-08C42
90179-10088
90185-08002
90468-16142
Linked diagrams
8401

ILLUST NO. 2 OF 2(0812- )ZRE15#..LHD..6F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481M 31483E 31483E 31484 31485 9046110753 9046110753 9046110753 9046110836 9046808040 9046808040 9155180820 9167180616 9167180816 9167180816 9167180816 9167180816
Part # Description Qty Price
Common parts
90461-10753
90461-10836
90468-08040
91551-80820
91671-80616
91671-80816
Linked diagrams
3103
3105
