ZRE151L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)
(0610- )1ZR#,2ZRFAE

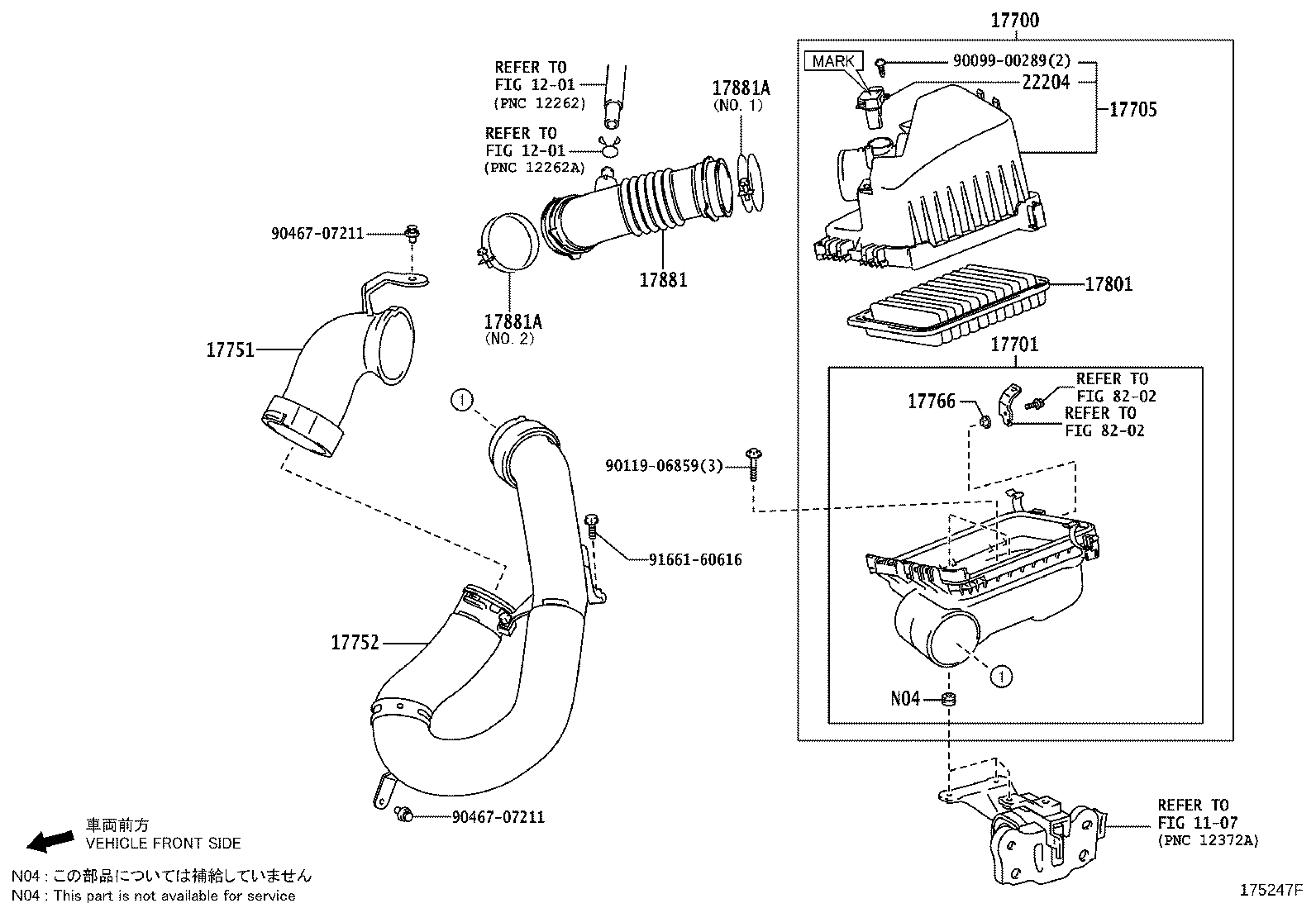

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-37230 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| 17700-22200 |
1ZRFE..ZRE151 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-21110 |
1ZRFE,4ZZFE..ZRE151,ZZE150 |
1 | ||
| 17701-21110 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-22220 |
1ZRFE..ZRE151 |
1 | ||
| 17705-37110 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-37050 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| 17751-37050 |
1ZRFE..ZRE151 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-37030 |
1ZRFE..ZRE151 |
1 | ||
| 17752-37030 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| 17766 - STAY, AIR CLEANER, NO.2 | ||||
| 17706-22010 |
1ZRFE,4ZZFE..ZRE151,ZZE150 |
1 | ||
| 17706-21010 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| 17706-22010 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-21050 |
1ZRFE,4ZZFE..ZRE151,ZZE150 |
1 | ||
| 17801-21050 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-22110 |
1ZRFE..ZRE151 |
1 | ||
| 17880-22040 |
1ZRFE..ZRE151 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
1ZR#,2ZRFAE..ZRE15# NO.2 |
1 | ||
| 96111-10830 |
1ZRFE..ZRE151 NO.1 |
1 | ||
| 96111-10780 |
1ZRFE..ZRE151 NO.2 |
1 | ||
| 96111-10750 |
1ZR#,2ZRFAE..ZRE15# NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
1ZR#,2ZRFAE..ZRE15# NO.2 |
1 | ||
| 96111-10830 |
1ZRFE..ZRE151 NO.1 |
1 | ||
| 96111-10780 |
1ZRFE..ZRE151 NO.2 |
1 | ||
| 96111-10750 |
1ZR#,2ZRFAE..ZRE15# NO.1 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-31010 |
1ZRFE,4ZZFE..ZRE151,ZZE150 |
1 | ||
| 22204-37010 |
1ZR#,2ZRFAE..ZRE15# |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90467-07211 | ||||
| 91661-60616 | ||||
