ZRE151L-AHFDPW (2008)
Toyota Auris/Corolla (Jpp)
Production
Dec 2008
-
Oct 2009
Engine
1ZRFAE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0610- )

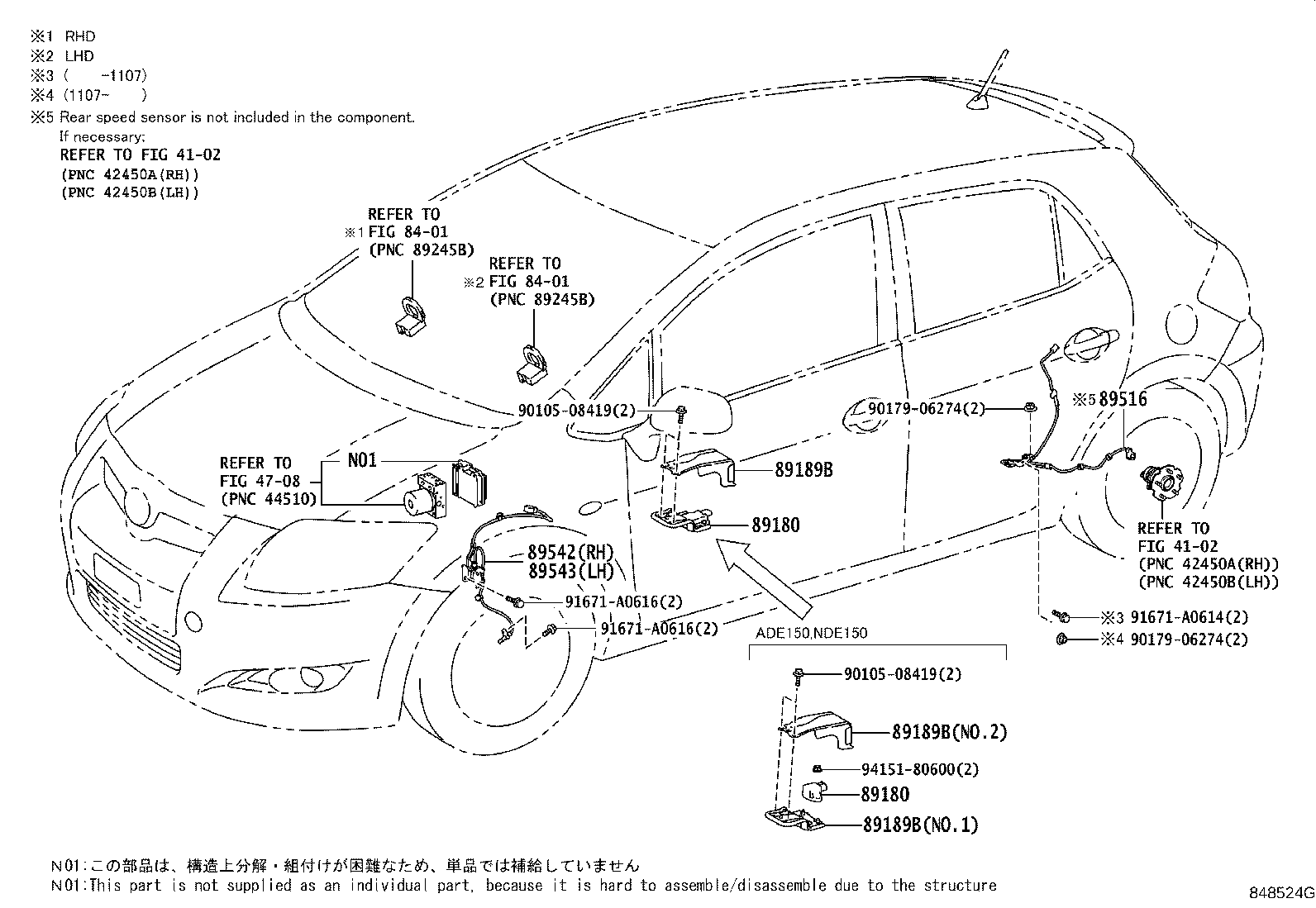

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-12061 |
ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-12061 |
ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-12091 |
ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-12091 |
ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-12091 |
ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-12061 |
ADE150,NDE150,ZRE151,ZZE150 LH |
1 | ||
| 89516-12051 |
ADE150,NDE150,ZRE151,ZZE150 RH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-12080 |
ZRE151,ZZE150 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-12080 |
ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90105-08419 | ||||
| 90179-06274 | ||||
| 91671-A0614 | ||||
| 91671-A0616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 4708 | ||||
| 8401 | ||||
