ZRE151L-AHFDPW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )ZRE151..LHD..HTWVM ; (0610- )ZRE151..LHD..5F,5FS ; (0610- )ADE150,

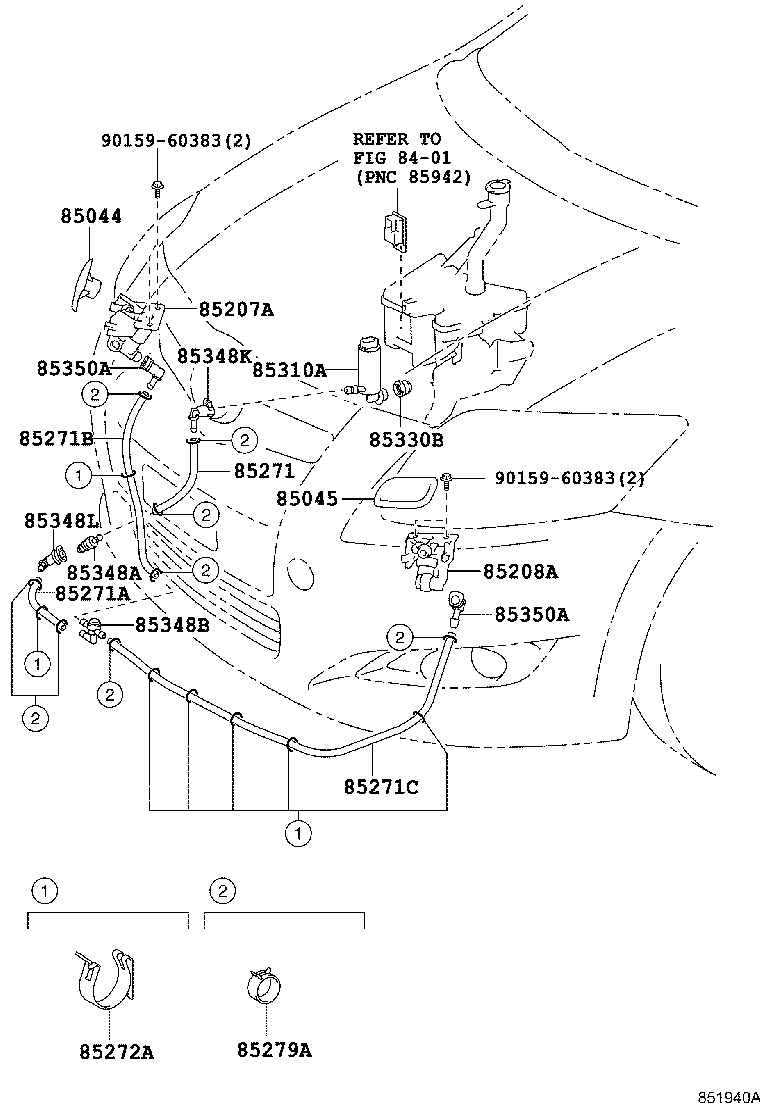

Click highlighted areas on diagram

diagram 8401 85044 85045 85207A 85208A 85271 85271A 85271B 85271C 85272A 85279A 85310A 85330B 85348A 85348B 85348K 85348L 85350A 85350A 9015960383 9015960383
Part # Description Qty Price
85271 - HOSE, HEADLAMP CLEANER, NO.1
85277-05050

NDE150,ZRE151,ZZE150..LHD

*H,L=440,HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85276-05050

NDE150,ZRE151,ZZE150..LHD

L=300,HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85277-05050

NDE150,ZRE151,ZZE150..LHD

*H,L=440,HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
85276-02050

NDE150,ZRE151,ZZE150..LHD

L=1380,HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
85272A - CLAMP, HEADLAMP CLEANER, NO.1
85272-05021

NDE150,ZRE151,ZZE150..LHD

HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 7
85279A - JOINT, HEADLAMP CLEANER HOSE
85279-05040

NDE150,ZRE151,ZZE150..LHD

HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 8
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
90069-44002

NDE150,ZRE151,ZZE150..LHD

HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85285-02060

NDE150,ZRE151,ZZE150..LHD

HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85286-05040

NDE150,ZRE151,ZZE150..LHD

HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85286-05040

NDE150,ZRE151,ZZE150..LHD

HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 1
85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3
85286-02060

NDE150,ZRE151,ZZE150..LHD

HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 2
85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3
85286-02060

NDE150,ZRE151,ZZE150..LHD

HEADLAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH

 2
Common parts
90159-60383
Linked diagrams
8401
