ZRE151L-AHFDPW (2008)
Toyota Auris/Corolla (Jpp)
(0610- )
W/O(HEAD LAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

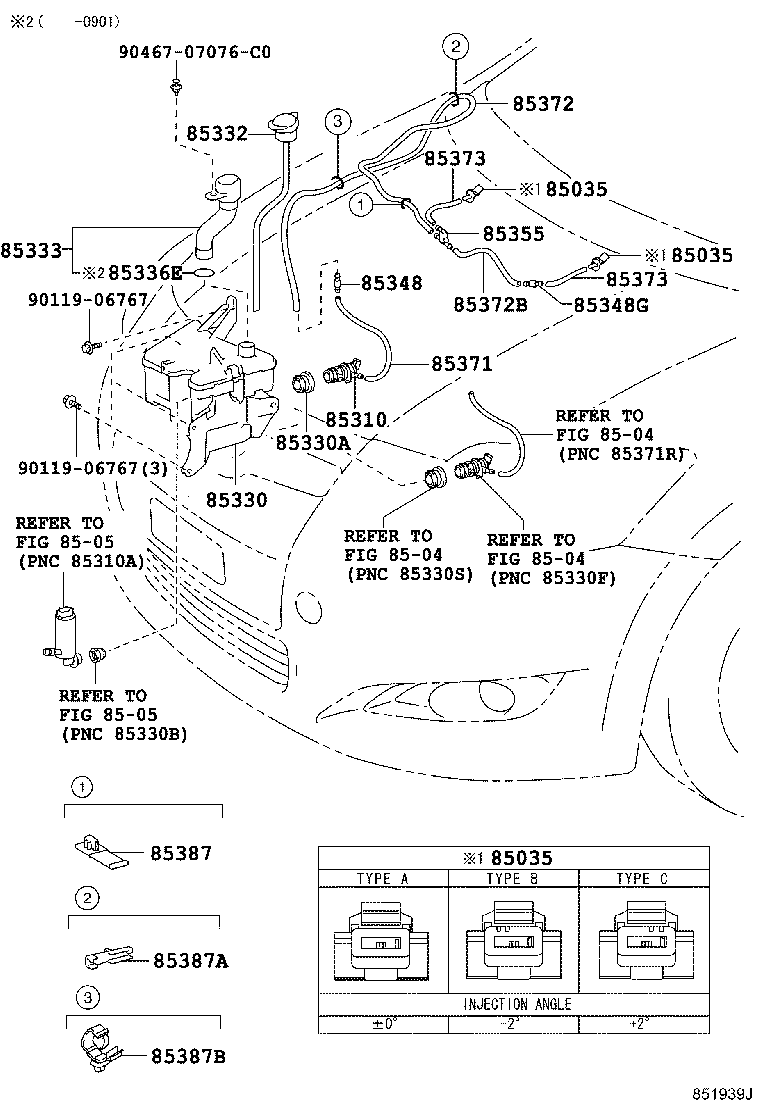

| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151,ZZE150 TYPE A:REFER ILLUST. |
2 | ||
| 85381-12340 |
NDE150,ZRE151,ZZE150 TYPE B:REFER ILLUST. |
2 | ||
| 85381-12350 |
NDE150,ZRE151,ZZE150 TYPE C:REFER ILLUST. |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151,ZZE150 TYPE A:REFER ILLUST. |
2 | ||
| 85381-12340 |
NDE150,ZRE151,ZZE150 TYPE B:REFER ILLUST. |
2 | ||
| 85381-12350 |
NDE150,ZRE151,ZZE150 TYPE C:REFER ILLUST. |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151,ZZE150 TYPE A:REFER ILLUST. |
2 | ||
| 85381-12340 |
NDE150,ZRE151,ZZE150 TYPE B:REFER ILLUST. |
2 | ||
| 85381-12350 |
NDE150,ZRE151,ZZE150 TYPE C:REFER ILLUST. |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-71010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85330-02030 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-12530 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12530 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85355-02060 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90069-20005 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-52190 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85356-02060 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85336G - GAGE, WATER LEVEL | ||||
| 85313-20130 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-05050 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85375-10260 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
NDE150,ZRE151,ZZE150 *H,L=100 |
1 | ||
| 90069-16009 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62030 |
NDE150,ZRE151,ZZE150 L=1820 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
NDE150,ZRE151,ZZE150 *H,L=355 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151,ZZE150 *H,L=125 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151,ZZE150 *H,L=125 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-12840 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||
(0610- )ZRE151..LHD..HTWVM ; (0610- )ZRE151..LHD..5F,5FS ; (0610- )ADE150,
W(HEAD LAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151,ZZE150 TYPE A:REFER ILLUST. |
2 | ||
| 85381-12340 |
NDE150,ZRE151,ZZE150 TYPE B:REFER ILLUST. |
2 | ||
| 85381-12350 |
NDE150,ZRE151,ZZE150 TYPE C:REFER ILLUST. |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151,ZZE150 TYPE A:REFER ILLUST. |
2 | ||
| 85381-12340 |
NDE150,ZRE151,ZZE150 TYPE B:REFER ILLUST. |
2 | ||
| 85381-12350 |
NDE150,ZRE151,ZZE150 TYPE C:REFER ILLUST. |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12330 |
NDE150,ZRE151,ZZE150 TYPE A:REFER ILLUST. |
2 | ||
| 85381-12340 |
NDE150,ZRE151,ZZE150 TYPE B:REFER ILLUST. |
2 | ||
| 85381-12350 |
NDE150,ZRE151,ZZE150 TYPE C:REFER ILLUST. |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-71010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85330-02030 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12530 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85355-02060 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90069-20005 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-52190 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85356-02060 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85359-02060 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-05050 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85375-10260 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
NDE150,ZRE151,ZZE150 *H,L=100 |
1 | ||
| 90069-16009 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62030 |
NDE150,ZRE151,ZZE150 L=1820 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
NDE150,ZRE151,ZZE150 *H,L=355 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151,ZZE150 *H,L=125 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
NDE150,ZRE151,ZZE150 *H,L=125 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 82711-1E020 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 85387-12840 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
NDE150,ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90467-07076C0 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8505 | ||||
