ZRE151L-AHFDPW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-0910)LHD..HTWVM

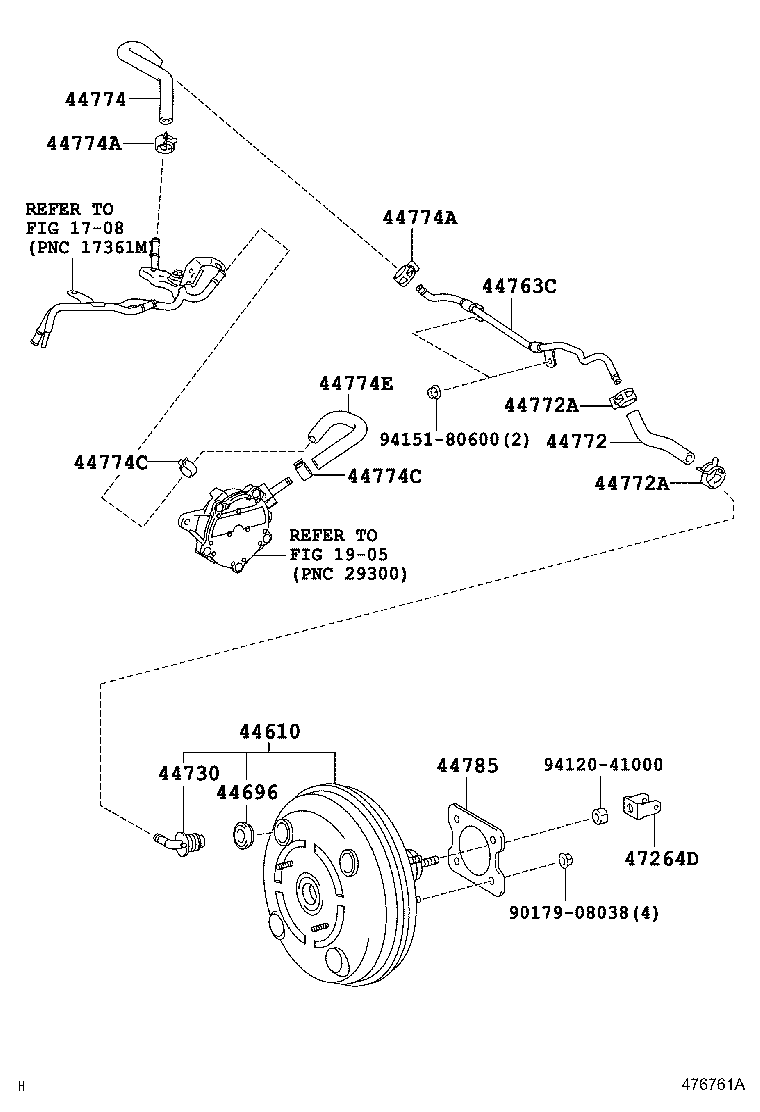

Click highlighted areas on diagram

diagram 1708 1905 44610 44696 44730 44763C 44772 44772A 44772A 44774 44774A 44774A 44774C 44774C 44774E 44785 47264D 9017908038 9412041000 9415180600
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-12A80

ZRE151,ZZE150..LHD

VSC-WITH(W/CUT OFF SWITCH)

 1
44610-12C10

ZRE151,ZZE150..LHD

 1
44610-12F71

ZRE15#..LHD..HTWVM

VSC-WITH(W/CUT OFF SWITCH)

 1
44610-12F71

ZRE15#..6F..TERRA..HTWVM

VSC-WITH

 1
44610-12F81

ZRE15#..LHD..HTWVM

 1
44696 - GROMMET, CHECK VALVE
90480-24439

ZRE151,ZZE150

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

ZRE151,ZZE150..LHD

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12400

ZRE151..LHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12510

ZRE151,ZZE150..LHD

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

NDE150,ZRE151,ZZE150

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

NDE150,ZRE151,ZZE150

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12530

ZRE15#..LHD

 1
44774-12530

ZRE151..LHD

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE15#;ADE150..LHD..DCRL

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE15#;ADE150..LHD..DCRL

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE15#..HTWVM

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

ZRE15#..HTWVM

 2
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-28320

ZRE15#..HTWVM

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

NDE150,ZRE151,ZZE150

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63020

ZRE151,ZZE150

 1
Common parts
90179-08038
94120-41000
94151-80600
Linked diagrams
1708
1905
