ZRE151L-AHFDPW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-0910)1ZRFAE,2ZRFAE

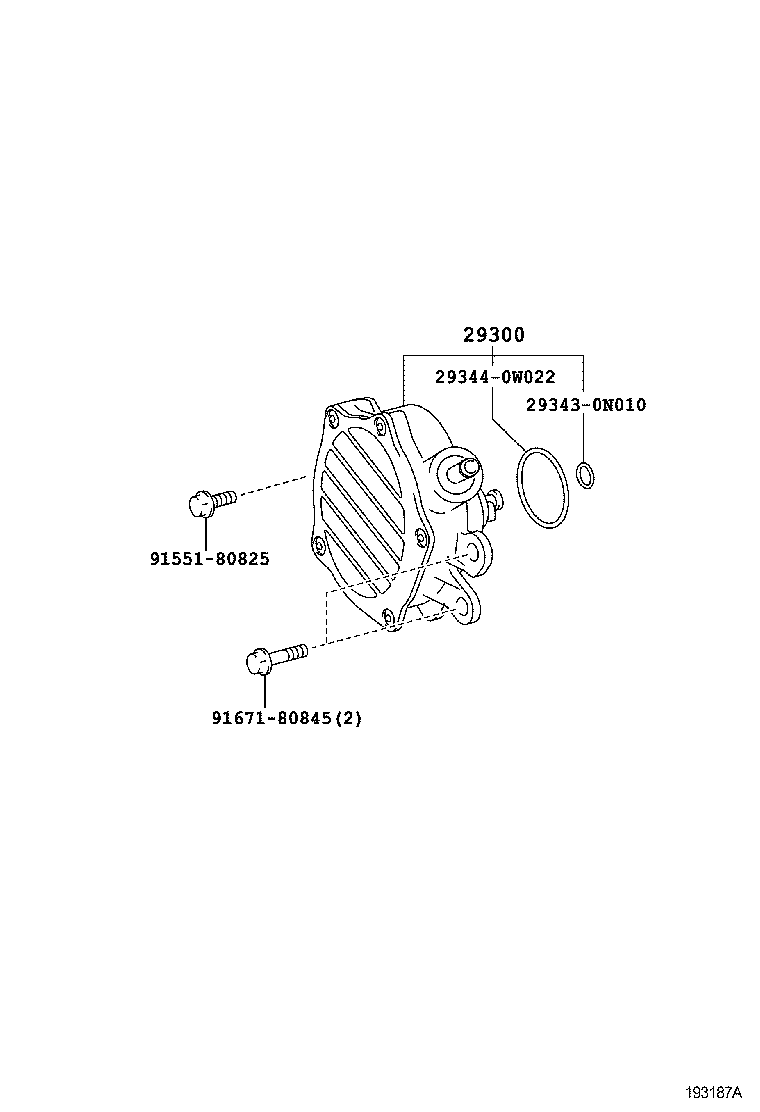

Click highlighted areas on diagram

diagram 29300 293430N010 293440W022 9155180825 9167180845
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0W022

1ZRFAE,2ZRFAE..ZRE15#

 1
Common parts
29343-0N010
29344-0W022
91551-80825
91671-80845
