ZRE151L-AHFDPW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )1ZRFAE,2ZRFAE

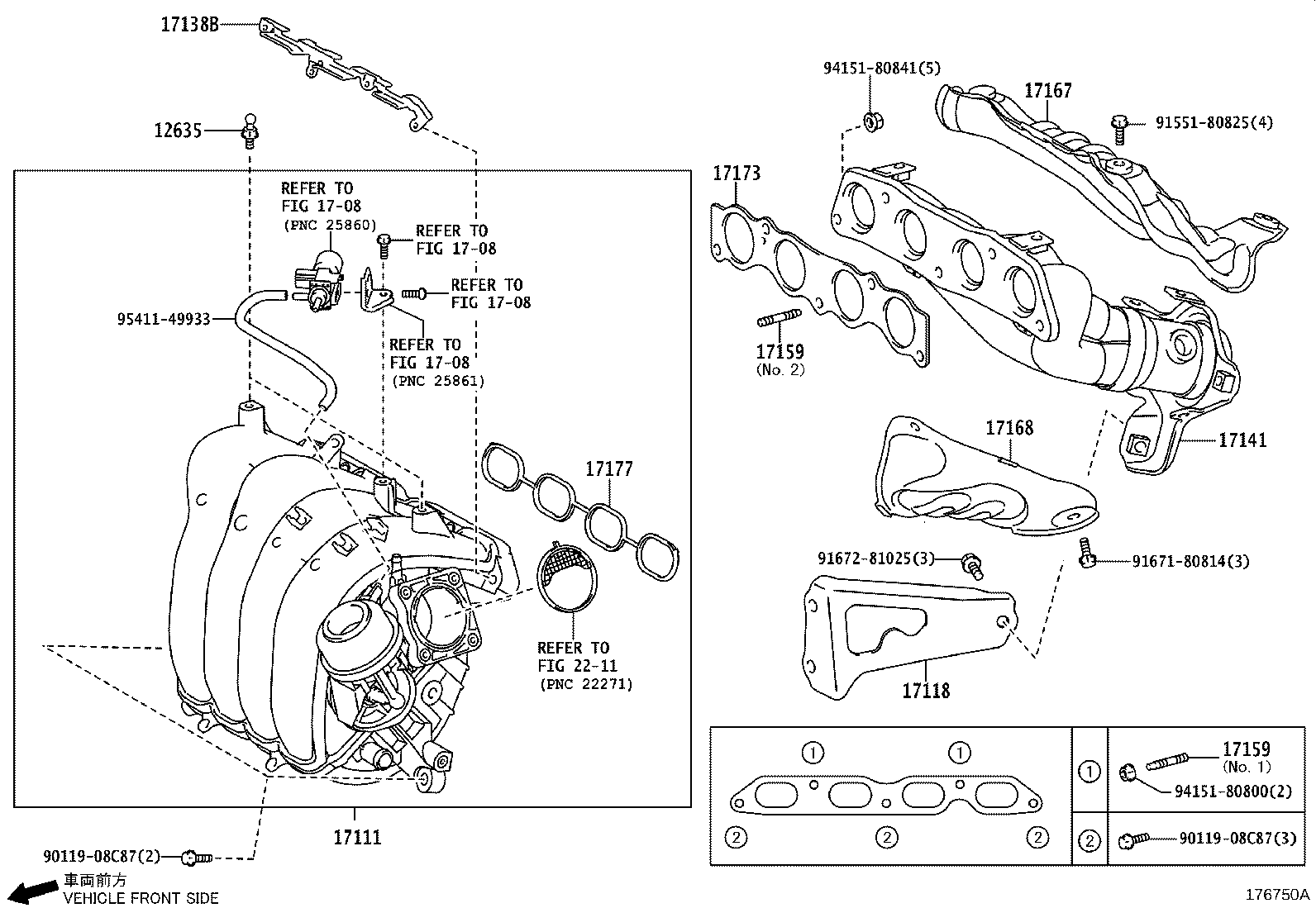

Click highlighted areas on diagram

diagram 12635 1708 1708 1708 1708 17111 17118 17138B 17141 17159 17159 17167 17168 17173 17177 2211 9011908C87 9011908C87 9155180825 9167180814 9167281025 9415180800 9415180841 9541149933
Part # Description Qty Price
12635 - JOINT, ENGINE COVER
90109-06385

1ZR#,2ZRFAE..ZRE15#

 2
17111 - MANIFOLD, INTAKE
17120-0T030

1ZRFAE..ZRE151

 1
17118 - STAY, MANIFOLD
17118-37010

1ZR#,2ZRFAE..ZRE15#

 1
17138B - STAY, INTAKE MANIFOLD
17138-37010

1ZR#,2ZRFAE..ZRE15#

 1
17141 - MANIFOLD, EXHAUST
17141-37051

1ZR#,2ZRFAE..ZRE15#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1ZR#,2ZRFAE..ZRE15#

NO.1

 2
90126-08052

1ZR#,2ZRFAE..ZRE15#

NO.2

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1ZR#,2ZRFAE..ZRE15#

NO.1

 2
90126-08052

1ZR#,2ZRFAE..ZRE15#

NO.2

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37011

1ZR#,2ZRFAE..ZRE15#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37100

1ZR#,2ZRFAE..ZRE15#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

1ZR#,2ZRFAE..ZRE15#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0T030

1ZRFAE..ZRE151

(L)

 1
17177-37030

1ZRFAE..ZRE151

(J)

 1
Common parts
90119-08C87
91551-80825
91671-80814
91672-81025
94151-80800
94151-80841
95411-49933
Linked diagrams
1708
2211
