ZRE151L-AHFDKW (2009)

Toyota Auris/Corolla (Jpp)

Production Oct 2009 - Aug 2012
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

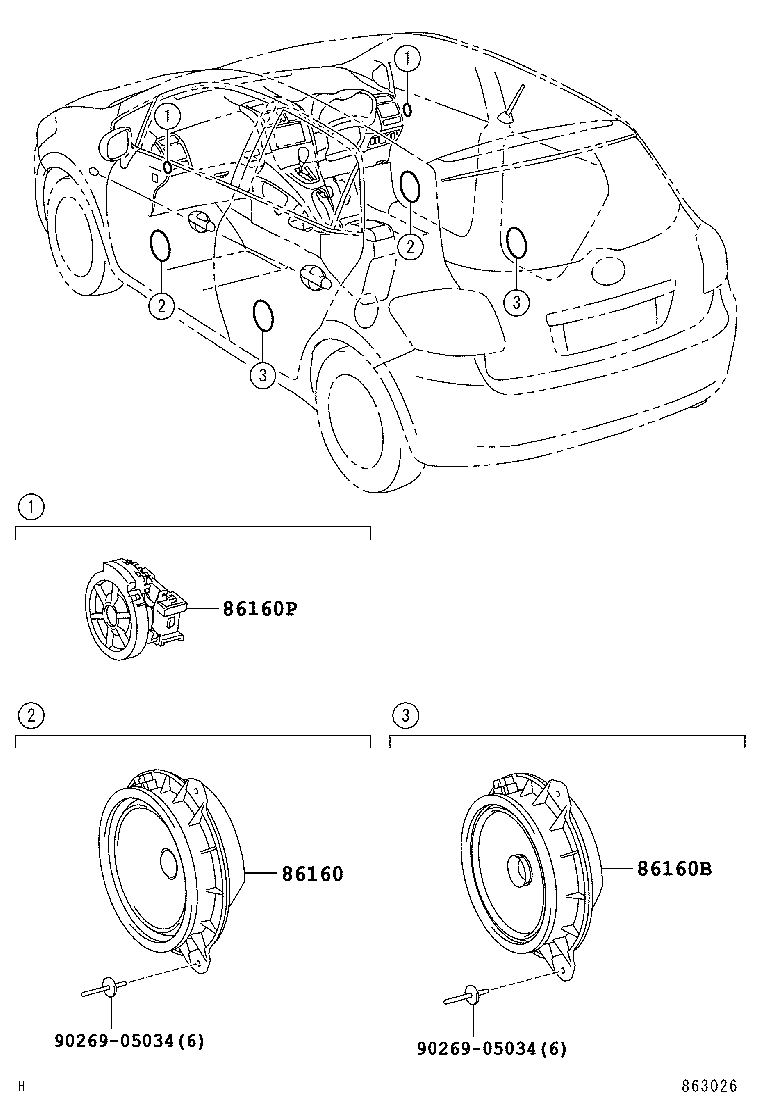

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9026905034 9026905034
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-2B580

NDE150,ZRE151,ZZE150

 2
86160-2B580

NDE150,ZRE151

 2
86160-52300

NDE150,ZRE151

 2
86160B - SPEAKER ASSY, REAR
86160-52220

NDE150,ZRE151,ZZE150..TERRA

AUDIO-CD RADIO 6SPEAKER

 2
86160-52220

ZRE151..TERRA

AUDIO-CD RADIO 6SPEAKER

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-68010

NDE150,ZRE151

 2
86160-68010

NDE150,ZRE151,ZZE150

 2
86160-52170

NDE150,ZRE151

 2
Common parts
90269-05034
