ZRE151L-AHFDKW (2009)

Toyota Auris/Corolla (Jpp)

Production Oct 2009 - Aug 2012
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

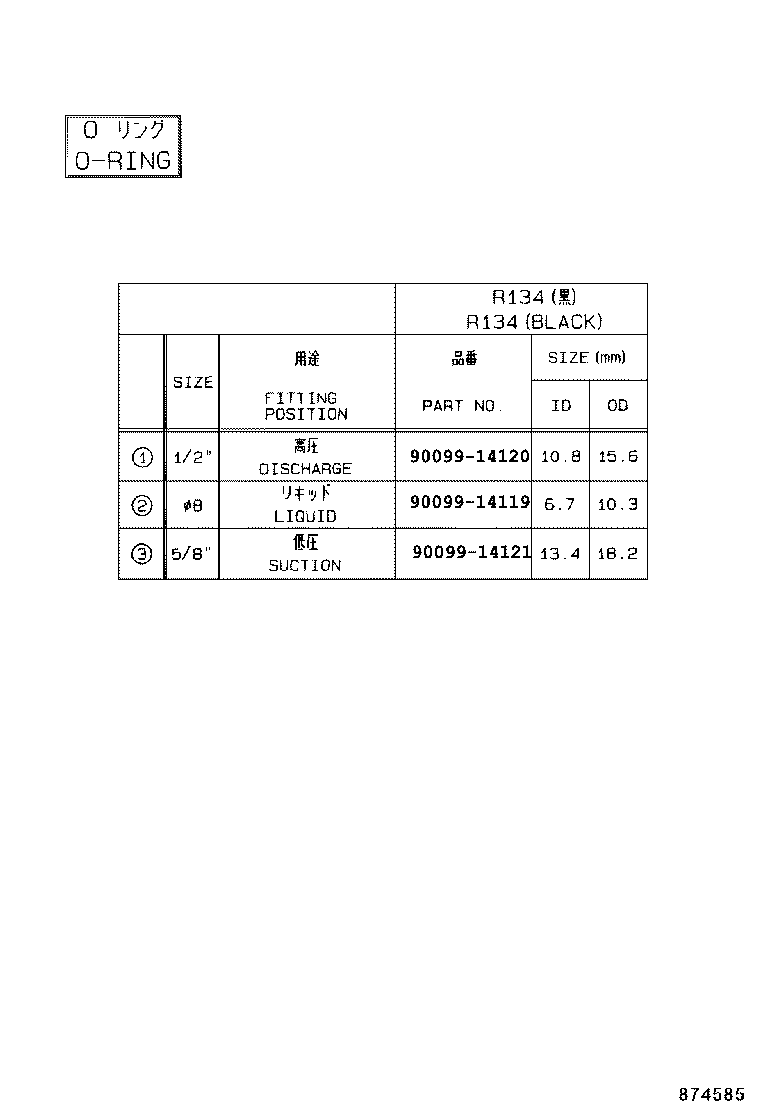

ILLUST NO. 2 OF 2(0610- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

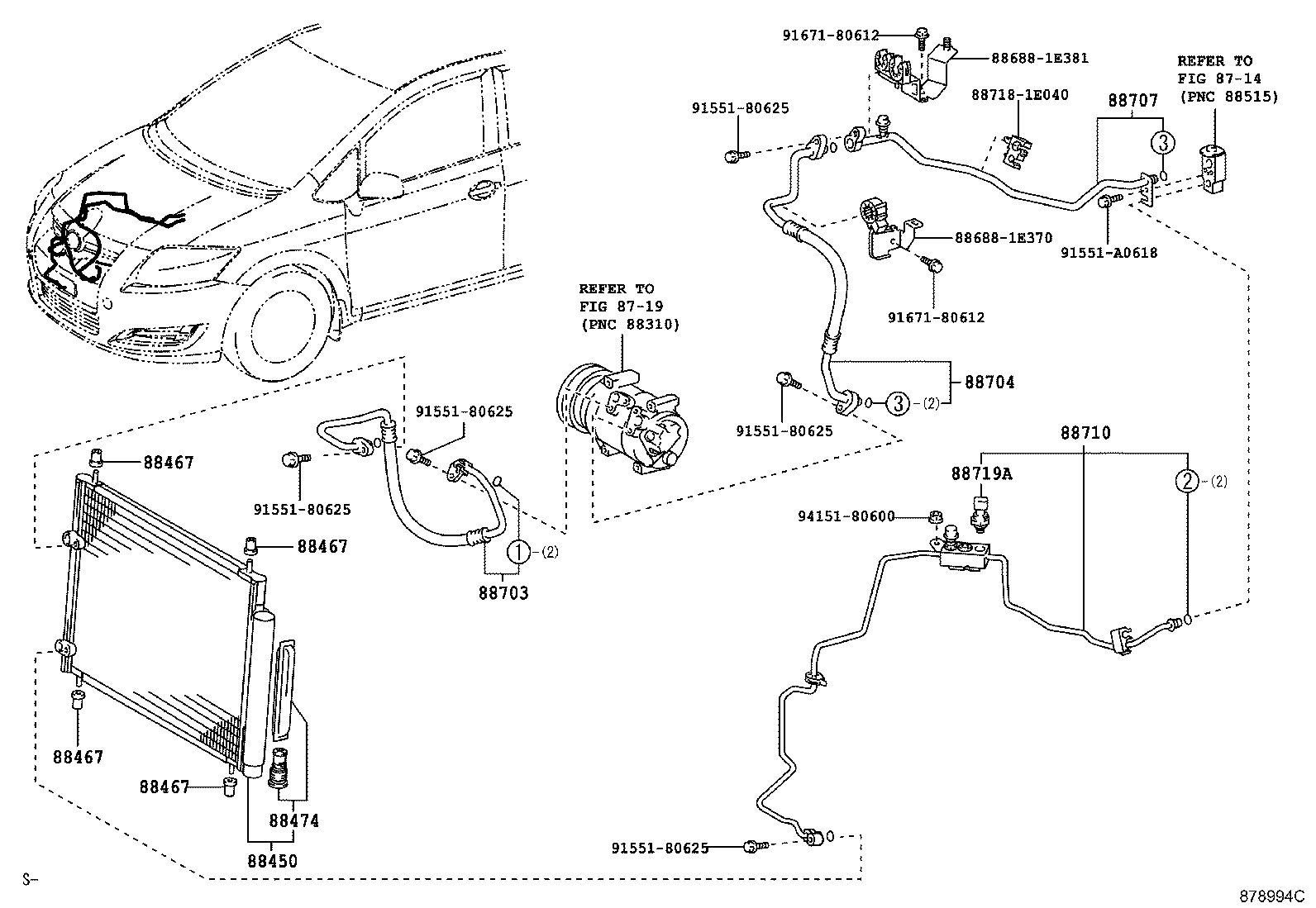

ILLUST NO. 1 OF 2(0610- )ZRE15#

Click highlighted areas on diagram

diagram 8714 8719 88450 88467 88467 88467 88467 88474 886881E370 886881E381 88703 88704 88707 88710 887181E040 88719A 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 9167180612 9167180612 9415180600
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-12280

ZRE151,ZZE150..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

 1
88450-12280

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 4
88474 - DRYER, COOLER
88474-12030

ZRE151,ZZE150..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

 1
88474-12030

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12830

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

 1
88703-12830

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-1A180

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

 1
88704-1A181

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-12250

NDE150,ZRE151,ZZE150..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

 1
88707-12250

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-12760

ZRE151,ZZE150..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

 1
88710-12760

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NDE150,ZRE151,ZZE150..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

 1
88719-33020

ZRE151..TERRA

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
Common parts
88688-1E370
88688-1E381
88718-1E040
91551-80625
91551-A0618
91671-80612
94151-80600
Linked diagrams
8714
8719
