ZRE151L-AHFDKW (2009)
Toyota Auris/Corolla (Jpp)
ILLUST NO. 5 OF 7(0610- )LHD

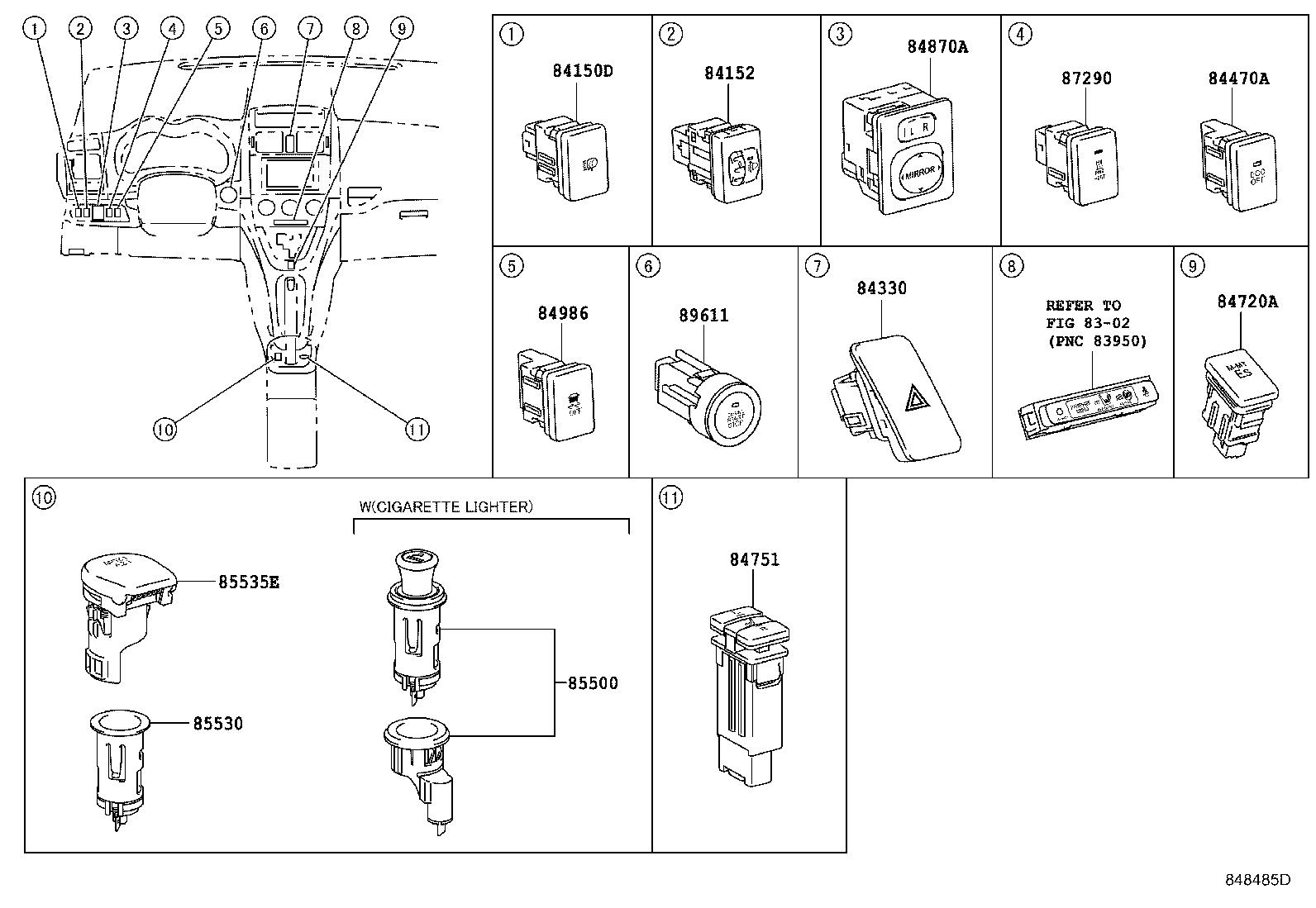

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-42020 |
NDE150,ZRE151,ZZE150..LHD HEADLAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12070 |
NDE150,ZRE151 |
1 | ||
| 84152-12070 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12510 |
NDE150,ZRE151..TERRA |
1 | ||
| 84332-12510 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42040 |
NDE150,ZRE151,ZZE150..LHD SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12200 |
NDE150,ZRE151..TERRA |
1 | ||
| 84870-12190 |
NDE150,ZRE151..TERRA OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED) |
1 | ||
| 84870-34010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 84870-12190 |
NDE150,ZRE151 |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-12010 |
NDE150,ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09060 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85500-09070 |
NDE150,ZRE151..TERRA ASH TRAY-WITHOUT |
1 | ||
| 85500-09070 |
NDE150,ZRE151..TERRA |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
NDE150,ZRE151,ZZE150 ASH TRAY-WITHOUT |
1 | ||
| 85530-0D020 |
NDE150,ZRE151..TERRA ASH TRAY-WITHOUT |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-02040 |
NDE150,ZRE151,ZZE150 ASH TRAY-WITHOUT |
1 | ||
| 85535-02040 |
NDE150,ZRE151..TERRA ASH TRAY-WITHOUT |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 2 OF 7(0610- )ADE150,NDE150,ZRE15#,ZZE150

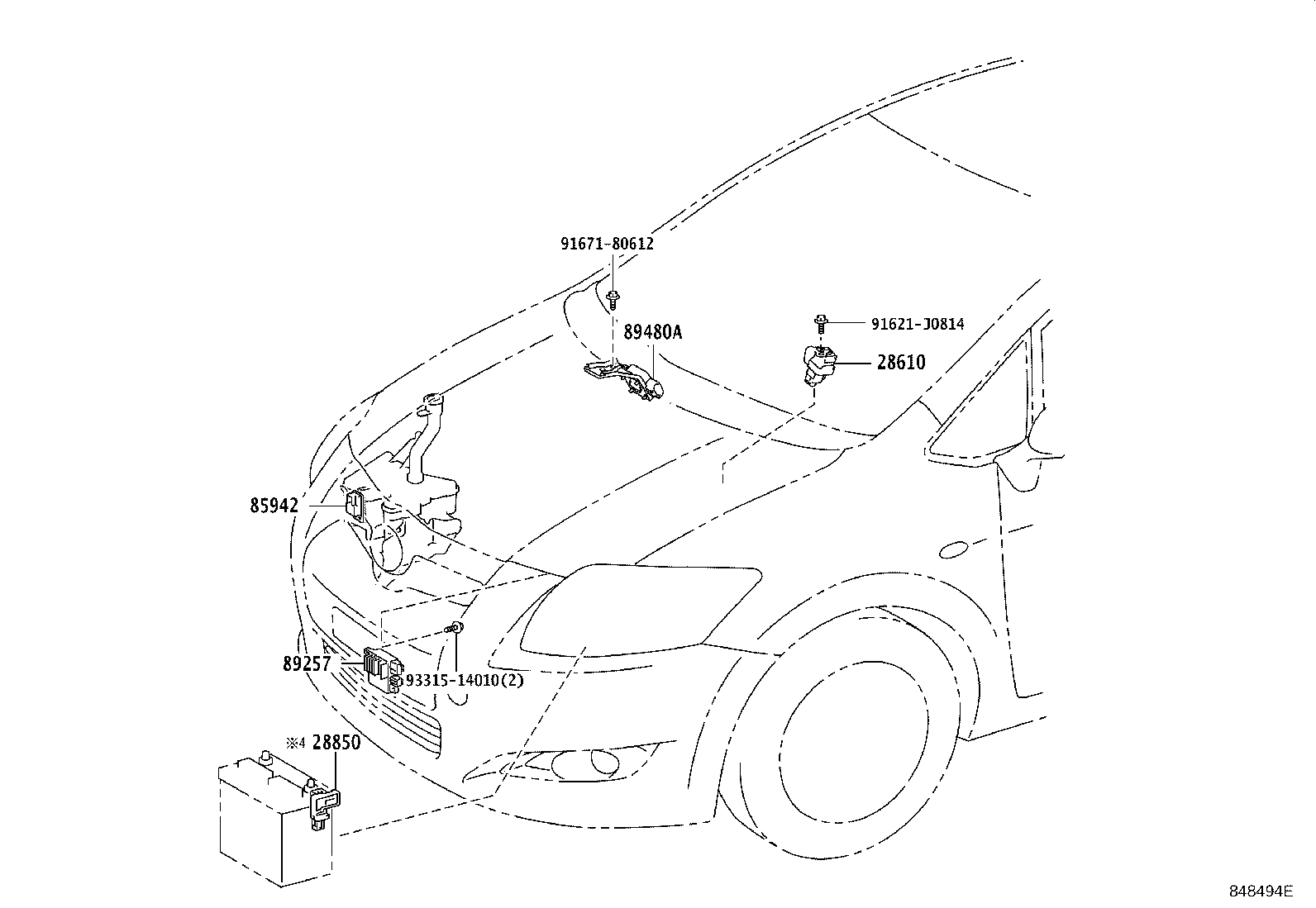

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE151 |
1 | ||
| 89257-12010 |
ZRE151,ZZE150 |
1 | ||
| Common parts | ||||
| 91621-J0814 | ||||
| 91671-80612 | ||||
| 93315-14010 | ||||
ILLUST NO. 4 OF 7(0610- )LHD
COWL

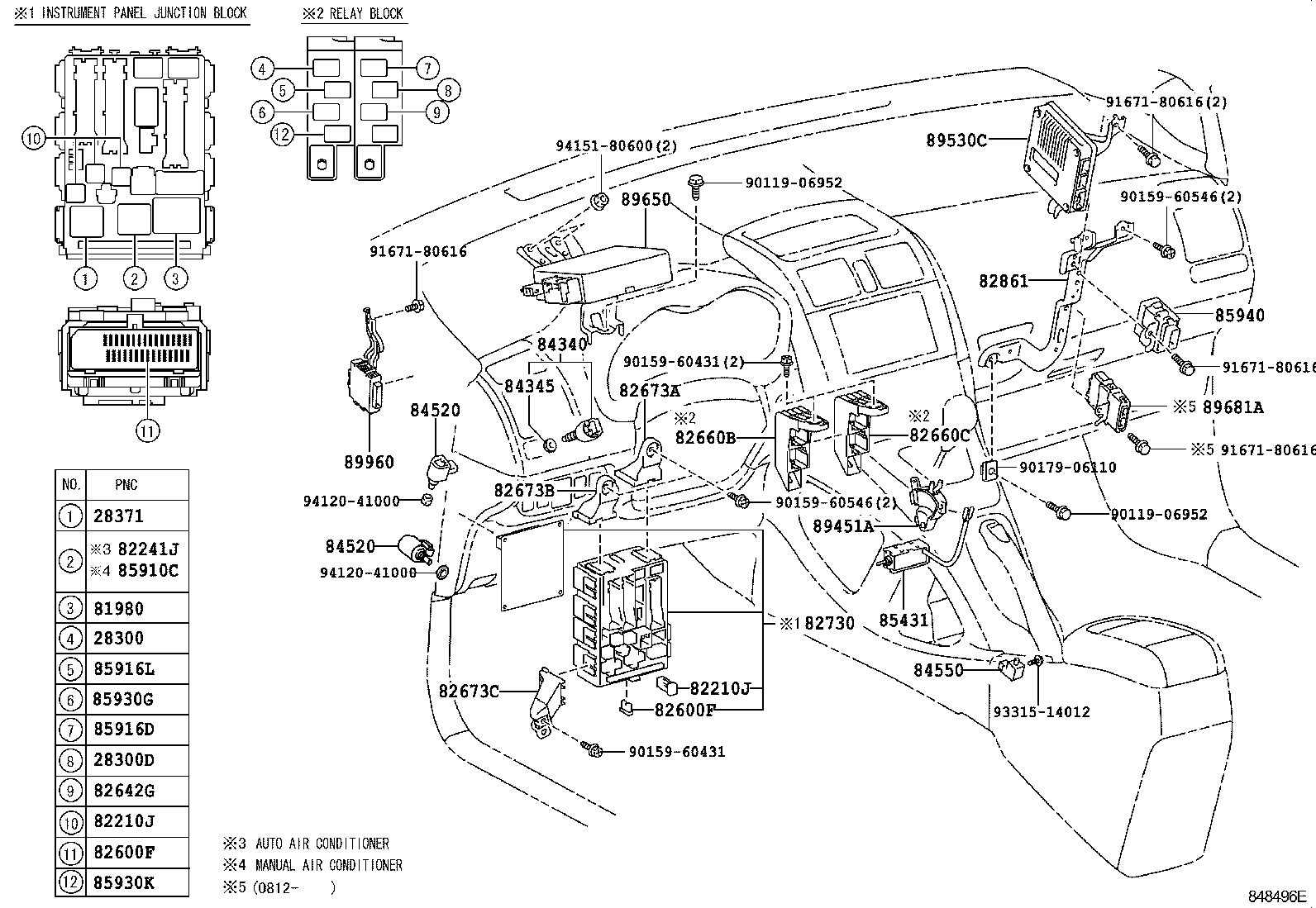

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150 |
1 | ||
| 28300-28010 |
1NDTV,1ZRFE..NDE150,ZRE151..TERRA |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1ADFTV,1NDTV,1ZRFE,4ZZFE..ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 90987-02030 |
1NDTV,1ZRFE..NDE150,ZRE151 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 81980-46010 |
NDE150,ZRE151..TERRA |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NDE150,ZRE151 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NDE150,ZRE151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NDE150,ZRE151 50A,TERM.:FEMALE,RED |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NDE150,ZRE151 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NDE150,ZRE151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NDE150,ZRE151 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NDE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NDE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
NDE150,ZRE151 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NDE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90982-09021 |
NDE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NDE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NDE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NDE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
NDE150,ZRE151 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NDE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90982-09021 |
NDE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NDE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 82642G - RELAY, PANEL | ||||
| 90987-02027 |
NDE150,ZRE151,ZZE150..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
NDE150,ZRE151 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
NDE150,ZRE151 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12170 |
ZRE151 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12180 |
ZRE151 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12190 |
ZRE151 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12510 |
ZRE151 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
NDE150,ZRE151 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NDE150,ZRE151 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NDE150,ZRE151 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NDE150,ZRE151 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NDE150,ZRE151 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90987-04010 |
NDE150,ZRE151..TERRA |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZRE151..TERRA FRONT FOG LAMP-MOP |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ZRE151..TERRA CHILE SPEC |
1 | ||
| 90987-02027 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90987-02027 |
NDE150,ZRE151 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12350 |
ZRE151,ZZE150..LHD |
1 | ||
| 89650-12A30 |
ZRE151..TERRA |
1 | ||
| 89650-12330 |
ZRE151,ZZE150..LHD ROUGH ROAD AREA SPEC |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90159-60431 | ||||
| 90159-60546 | ||||
| 90179-06110 | ||||
| 91671-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 7 OF 7(0610- )

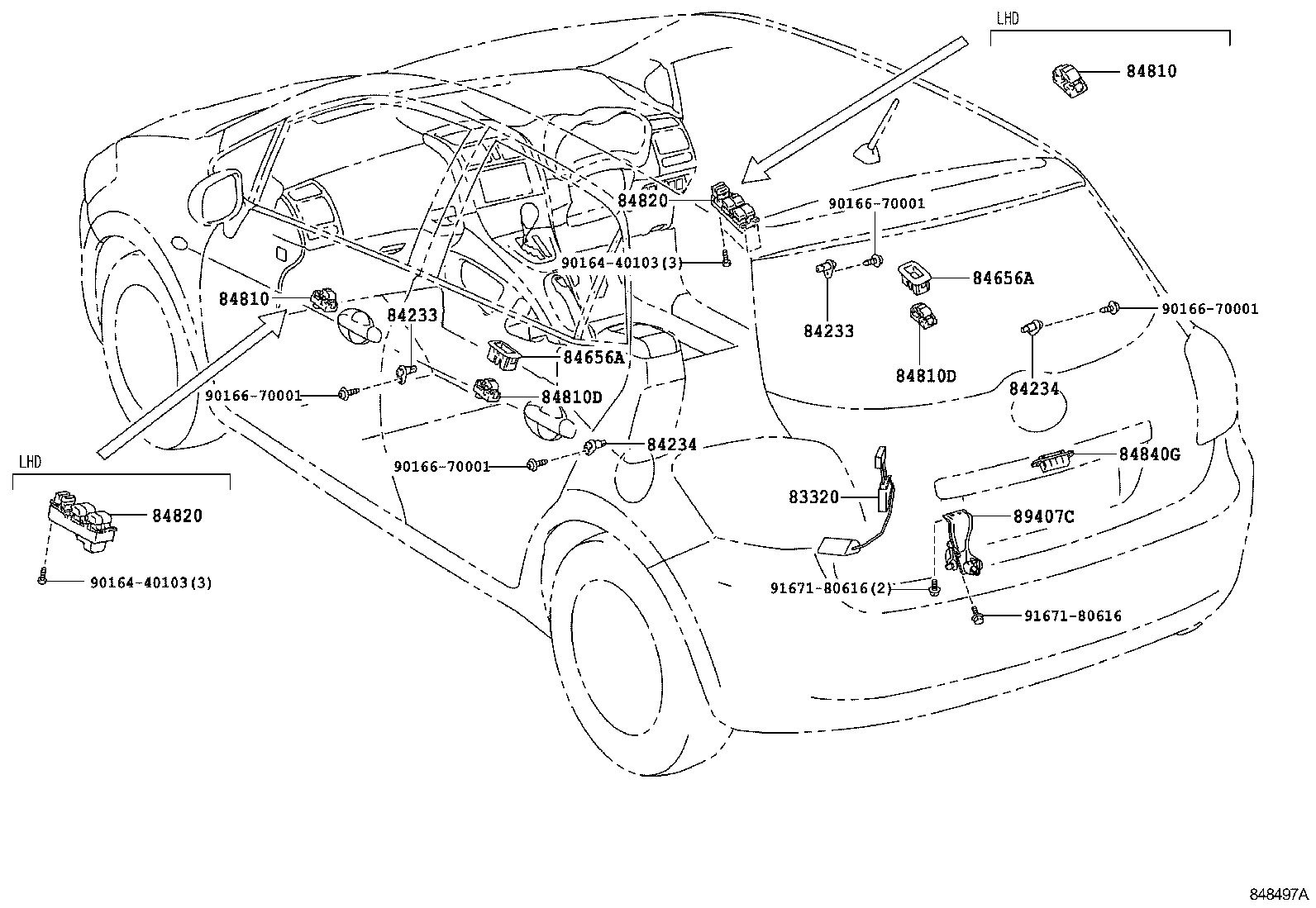

DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12730 |
NDE150,ZRE151 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NDE150,ZRE151..TERRA |
2 | ||
| 84231-60070 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
NDE150,ZRE151..TERRA |
2 | ||
| 84231-60070 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 84231-60070 |
NDE150,ZRE151..TERRA |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 84231-60070 |
NDE150,ZRE151..TERRA |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12170B0 |
ZRE151..TERRA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12170B0 |
ZRE151..TERRA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NDE150,ZRE151 |
1 | ||
| 84810-52030 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NDE150,ZRE151 |
1 | ||
| 84810-52030 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ZRE151..TERRA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ZRE151..TERRA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12520 |
NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 84820-12510 |
NDE150,ZRE151,ZZE150..LHD..TERRA |
1 | ||
| 84820-12510 |
ZRE151..TERRA |
1 | ||
| 84820-12520 |
ZRE151..TERRA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12520 |
NDE150,ZRE151,ZZE150..LHD..TERRA POWER WINDOW-WITH(FRONT & REAR) |
1 | ||
| 84820-12510 |
NDE150,ZRE151,ZZE150..LHD..TERRA |
1 | ||
| 84820-12510 |
ZRE151..TERRA |
1 | ||
| 84820-12520 |
ZRE151..TERRA POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
NDE150,ZRE151 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 91671-80616 | ||||
ILLUST NO. 6 OF 7(0910- )

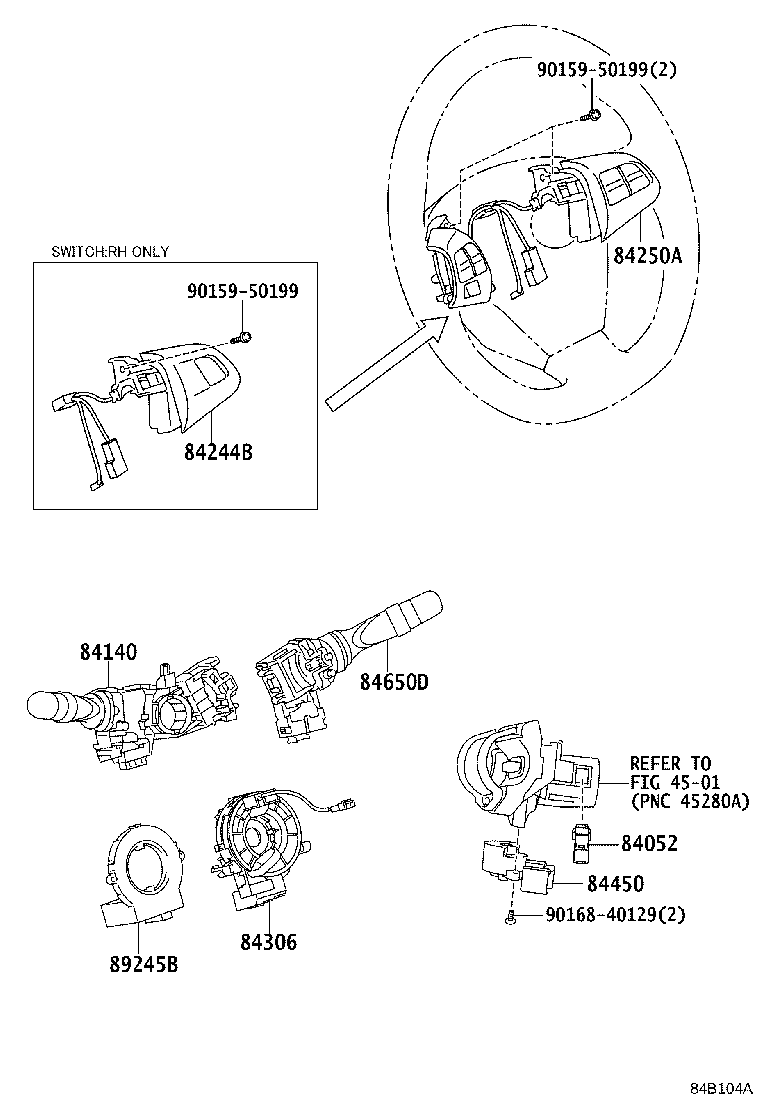

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NDE150,ZRE151 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12620 |
ADE150,NDE150,ZRE151,ZZE150..TERRA FRONT FOG LAMP-MOP |
1 | ||
| 84140-12610 |
ADE150,NDE150,ZRE151,ZZE150..TERRA |
1 | ||
| 84140-12630 |
ADE150,NDE150,ZRE151,ZZE150..LHD..TERRA DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-12640 |
ADE150,NDE150,ZRE151,ZZE150..LHD..TERRA FRONT FOG LAMP-MOP&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-12701 |
NDE150,ZRE151..TERRA |
1 | ||
| 84140-12711 |
ZRE151..TERRA FRONT FOG LAMP-MOP |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-12030 |
NDE150,ZRE151..TERRA |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12220 |
NDE150,ZRE151..TERRA STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY&AUDIO-CD RADIO 4SPEAKER |
1 | ||
| 84250-12220 |
ZRE151 STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY |
1 | ||
| 84250-12220 |
ZRE151..TERRA STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY&AUDIO-CD RADIO 6SPEAKER |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12110 |
NDE150,ZRE151 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
NDE150,ZRE151 |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-48110 |
ADE150,NDE150,ZRE151,ZZE150 |
1 | ||
| 84652-48111 |
NDE150,ZRE151 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
ZRE151,ZZE150 VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

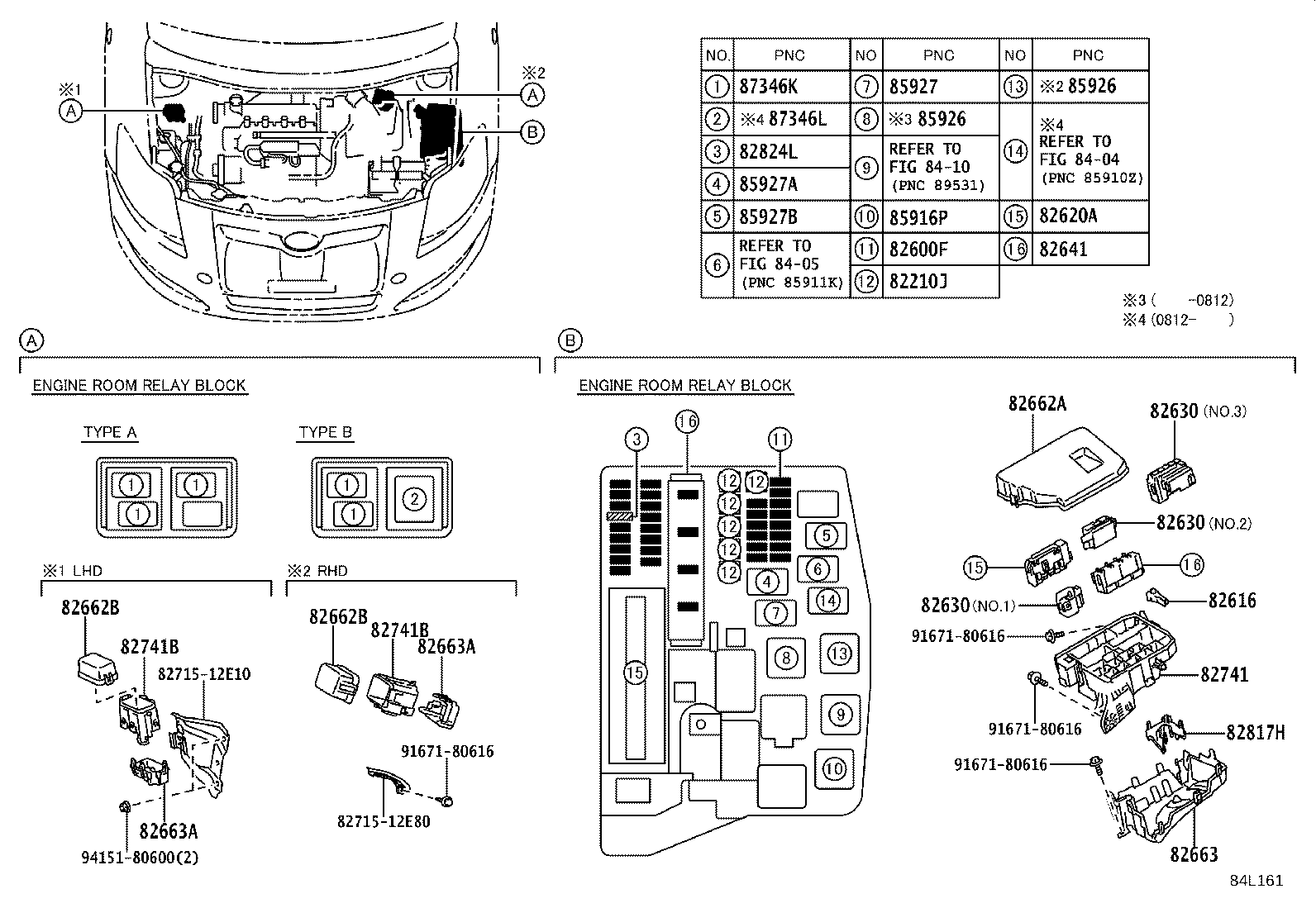

ILLUST NO. 3 OF 7(0610- )ADE150,NDE150,ZRE15#,ZZE150
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NDE150,ZRE151 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NDE150,ZRE151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
NDE150,ZRE151 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
NDE150,ZRE151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
NDE150,ZRE151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
NDE150,ZRE151 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
NDE150,ZRE151 25A,MINI FUSE |
1 | ||
| 90982-09021 |
NDE150,ZRE151 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NDE150,ZRE151 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NDE150,ZRE151 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
ZRE151 |
1 | ||
| 82620-12280 |
ZRE151,ZZE150 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
NDE150,ZRE151 NO.1 |
1 | ||
| 82631-12020 |
NDE150,ZRE151 NO.2 |
1 | ||
| 82631-12030 |
NDE150,ZRE151 NO.3 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
NDE150,ZRE151 NO.1 |
1 | ||
| 82631-12020 |
NDE150,ZRE151 NO.2 |
1 | ||
| 82631-12030 |
NDE150,ZRE151 NO.3 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
NDE150,ZRE151 NO.1 |
1 | ||
| 82631-12020 |
NDE150,ZRE151 NO.2 |
1 | ||
| 82631-12030 |
NDE150,ZRE151 NO.3 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
NDE150,ZRE151 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12570 |
ZRE151 |
1 | ||
| 82662-12270 |
ZRE151,ZZE150 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12280 |
ZRE151..LHD COLD AREA SPEC |
1 | ||
| 82662-12280 |
ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12280 |
ZRE151..LHD COLD AREA SPEC |
1 | ||
| 82662-12280 |
ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12060 |
NDE150,ZRE151 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ZRE151..LHD COLD AREA SPEC |
1 | ||
| 82663-12070 |
ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
ZRE151..LHD COLD AREA SPEC |
1 | ||
| 82663-12070 |
ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12070 |
NDE150,ZRE151 |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12080 |
ZRE151..LHD COLD AREA SPEC |
1 | ||
| 82741-12080 |
ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12080 |
ZRE151..LHD COLD AREA SPEC |
1 | ||
| 82741-12080 |
ZRE151..LHD COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12A80 |
NDE150,ZRE151 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
NDE150,ZRE151 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NDE150,ZRE151 |
1 | ||
| 90987-02025 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90987-02025 |
NDE150,ZRE151 |
1 | ||
| 90987-04010 |
NDE150,ZRE151 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90987-02025 |
NDE150,ZRE151 |
1 | ||
| 90987-04010 |
NDE150,ZRE151 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 90987-02027 |
NDE150,ZRE151..TERRA |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
ZRE151..LHD COLD AREA SPEC,TYPE A:REFER ILLUST. |
3 | ||
| Common parts | ||||
| 82715-12E10 | ||||
| 82715-12E80 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
