ZRE151L-AHFDKW (2009)

Toyota Auris/Corolla (Jpp)

Production Oct 2009 - Aug 2012
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

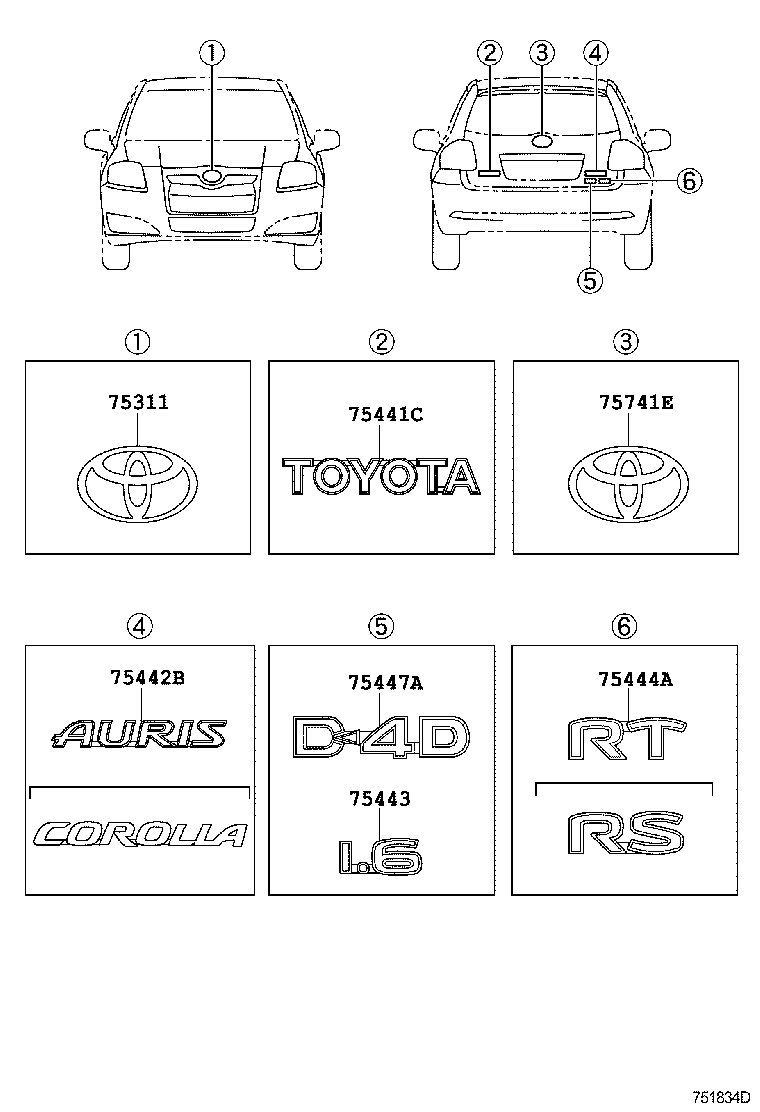

Click highlighted areas on diagram

diagram 75311 75441C 75442B 75443 75444A 75447A 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-12490

NDE150,ZRE151

 1
75301-12400

NDE150,ZRE151

 1
75441C - PLATE, BACK DOOR NAME
75441-12880

NDE150,ZRE151,ZZE150

TOYOTA

 1
75441-12880

NDE150,ZRE151..TERRA

TOYOTA

 1
75442B - PLATE, BACK DOOR NAME, NO.2
75442-1A500

NDE150,ZRE151,ZZE150

AURIS

 1
75442-1A500

NDE150,ZRE151

AURIS

 1
75741E - EMBLEM, SYMBOL
90975-02074

NDE150,ZRE151,ZZE150

 1
90975-02179

NDE150,ZRE151

 1
90975-02176

NDE150,ZRE151

 1
