ZRE151L-AHFDKW (2009)

Toyota Auris/Corolla (Jpp)

Production Oct 2009 - Aug 2012
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

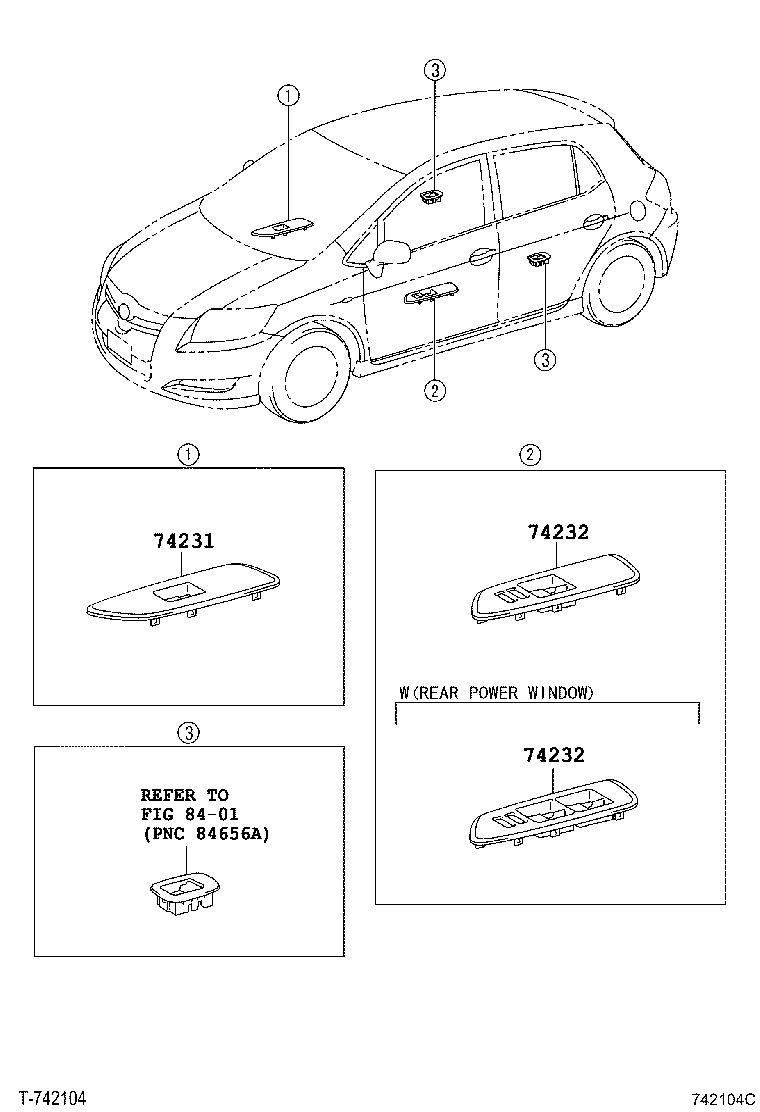

ILLUST NO. 1 OF 2(0610- )LHD

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74232 8401
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-12750B0

ZRE151

DK.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-12580B0

ZRE151..TERRA

DK.GRAY,TRIM1#

 1
74232-12560B0

ZRE151..TERRA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-12580B0

ZRE151..TERRA

DK.GRAY,TRIM1#

 1
74232-12560B0

ZRE151..TERRA

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

 1
Linked diagrams
8401

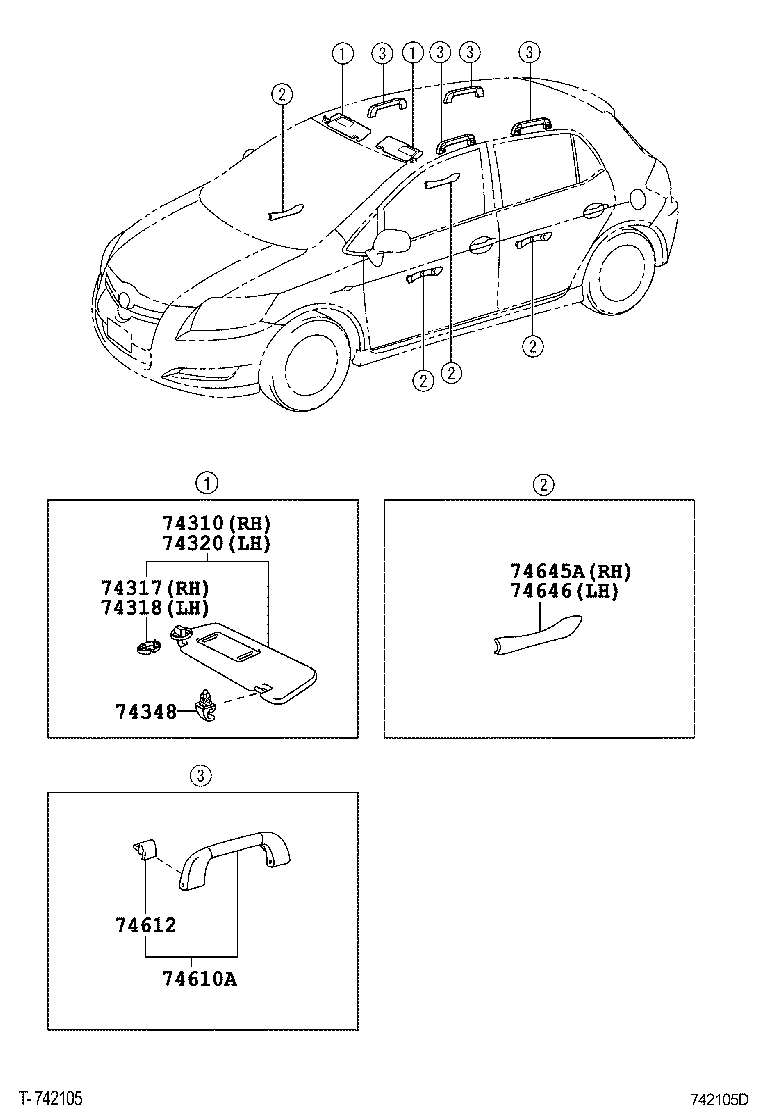

ILLUST NO. 2 OF 2(0610- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74317 74318 74320 74348 74610A 74612 74645A 74646
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-12E50B0

ZRE151

LT.GRAY,TRIM1#

 1
74310-12A60B0

ZRE151

LT.GRAY,TRIM1#

 1
74317 - COVER, VISOR BRACKET, RH
74317-52010B1

NDE150,ZRE151

LT.GRAY,TRIM1#

 1
74318 - COVER, VISOR BRACKET, LH
74318-52020B1

NDE150,ZRE151

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-12A30B0

ZRE151

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-33040B1

NDE150,ZRE151

LT.GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-52020B1

NDE150,ZRE151

LT.GRAY,TRIM1#

 4
74612 - COVER, ASSIST GRIP
74610-52020B1

NDE150,ZRE151,ZZE150

LT.GRAY,TRIM1#

 8
74612-52030B1

NDE150,ZRE151

LT.GRAY,TRIM1#

 8
74645A - COVER, DOOR ASSIST GRIP, RH
74645-12040

NDE150,ZRE151

 2
74646 - COVER, DOOR ASSIST GRIP, LH
74646-12040

NDE150,ZRE151

 2
