ZRE151L-AHFDKW (2009)
Toyota Auris/Corolla (Jpp)
(0610- )

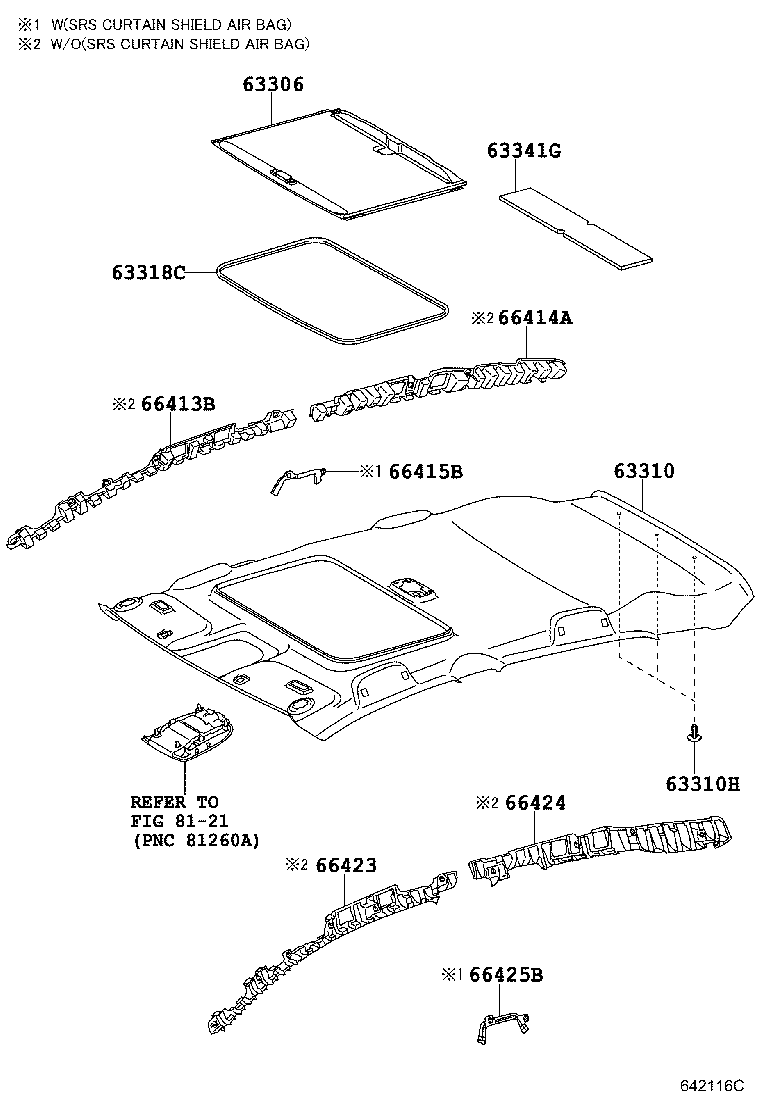

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63311-12850B0 |
NDE150,ZRE151 LIGHT GRAY,TRIM1# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
NDE150,ZRE151 LT.GRAY,TRIM1# |
3 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-12260 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 63341-12260 |
NDE150,ZRE151 |
4 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-12260 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 63341-12260 |
NDE150,ZRE151 |
4 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-12260 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 63341-12260 |
NDE150,ZRE151 |
4 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-12260 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 63341-12260 |
NDE150,ZRE151 |
4 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12220 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 63341-12220 |
NDE150,ZRE151 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-12220 |
NDE150,ZRE151,ZZE150 |
2 | ||
| 63341-12220 |
NDE150,ZRE151 |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66413-12030 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-12040 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66414-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66415-12030 |
NDE150,ZRE151 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66423-12030 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-12040 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66424-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66425-12030 |
NDE150,ZRE151 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
(0610- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63311-12850B0 |
NDE150,ZRE151 LIGHT GRAY,TRIM1# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
NDE150,ZRE151 LT.GRAY,TRIM1# |
3 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-12260 |
NDE150,ZRE151,ZZE150 |
4 | ||
| 63341-12260 |
NDE150,ZRE151 |
4 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66413-12030 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-12040 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66414-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66415-12030 |
NDE150,ZRE151 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66423-12030 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-12040 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66424-12040 |
NDE150,ZRE151,ZZE150 |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-12030 |
NDE150,ZRE151,ZZE150 SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE) |
1 | ||
| 66425-12030 |
NDE150,ZRE151 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
