ZRE151L-AHFDKW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

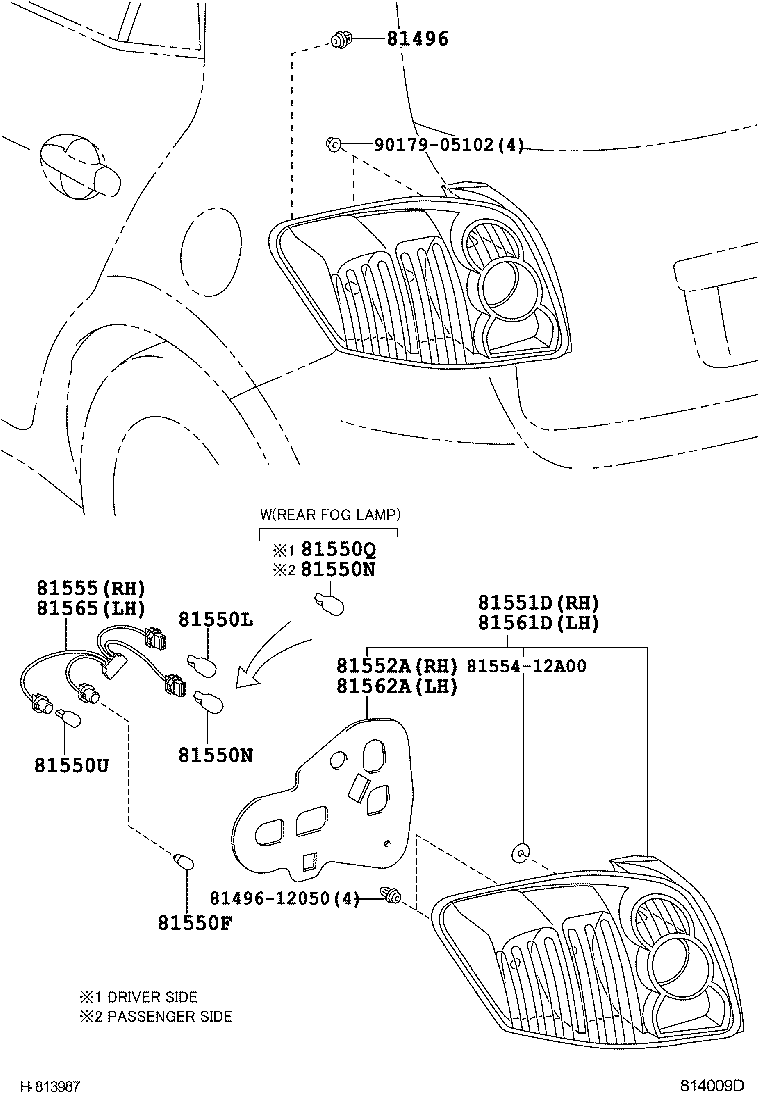

Click highlighted areas on diagram

diagram 81496 8149612050 81550F 81550L 81550N 81550N 81550Q 81550U 81551D 81552A 8155412A00 81555 81561D 81562A 81565 9017905102
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

NDE150,ZRE151,ZZE150

 2
81550F - BULB, TAIL LAMP
90981-11051

NDE150,ZRE151,ZZE150

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011

NDE150,ZRE151,ZZE150

 2
81550N - BULB, BACK UP LAMP
90981-13043

NDE150,ZRE151,ZZE150

 1
90981-13043

ZRE151..TERRA

CHILE SPEC

 2
90981-13043

ZRE151..TERRA..HTWC

CHILE SPEC

 2
81550N - BULB, BACK UP LAMP
90981-13043

NDE150,ZRE151,ZZE150

 1
90981-13043

ZRE151..TERRA

CHILE SPEC

 2
90981-13043

ZRE151..TERRA..HTWC

CHILE SPEC

 2
81550Q - BULB, REAR FOG LAMP, NO.1
90981-13043

NDE150,ZRE151,ZZE150

 1
81550U - BULB, STOP LAMP
90981-11059

NDE150,ZRE151,ZZE150

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-12A00

NDE150,ZRE151,ZZE150..LHD

 1
81552A - GASKET, REAR COMBINATION LAMP, RH
81552-12A00

NDE150,ZRE151,ZZE150

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81556-12A00

NDE150,ZRE151,ZZE150..LHD

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-1E010

ZRE151..TERRA..HTWC

CHILE SPEC

 1
81561-12A00

NDE150,ZRE151,ZZE150..LHD

 1
81561-1E010

ZRE151..TERRA

CHILE SPEC

 1
81562A - GASKET, REAR COMBINATION LAMP, LH
81562-12A00

NDE150,ZRE151,ZZE150

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81566-1E010

ZRE151..TERRA

CHILE SPEC

 1
81565-12A00

NDE150,ZRE151,ZZE150..LHD

 1
81566-1E010

ZRE151..TERRA..HTWC

CHILE SPEC

 1
Common parts
81496-12050
81554-12A00
90179-05102
