ZRE151L-AHFDKW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

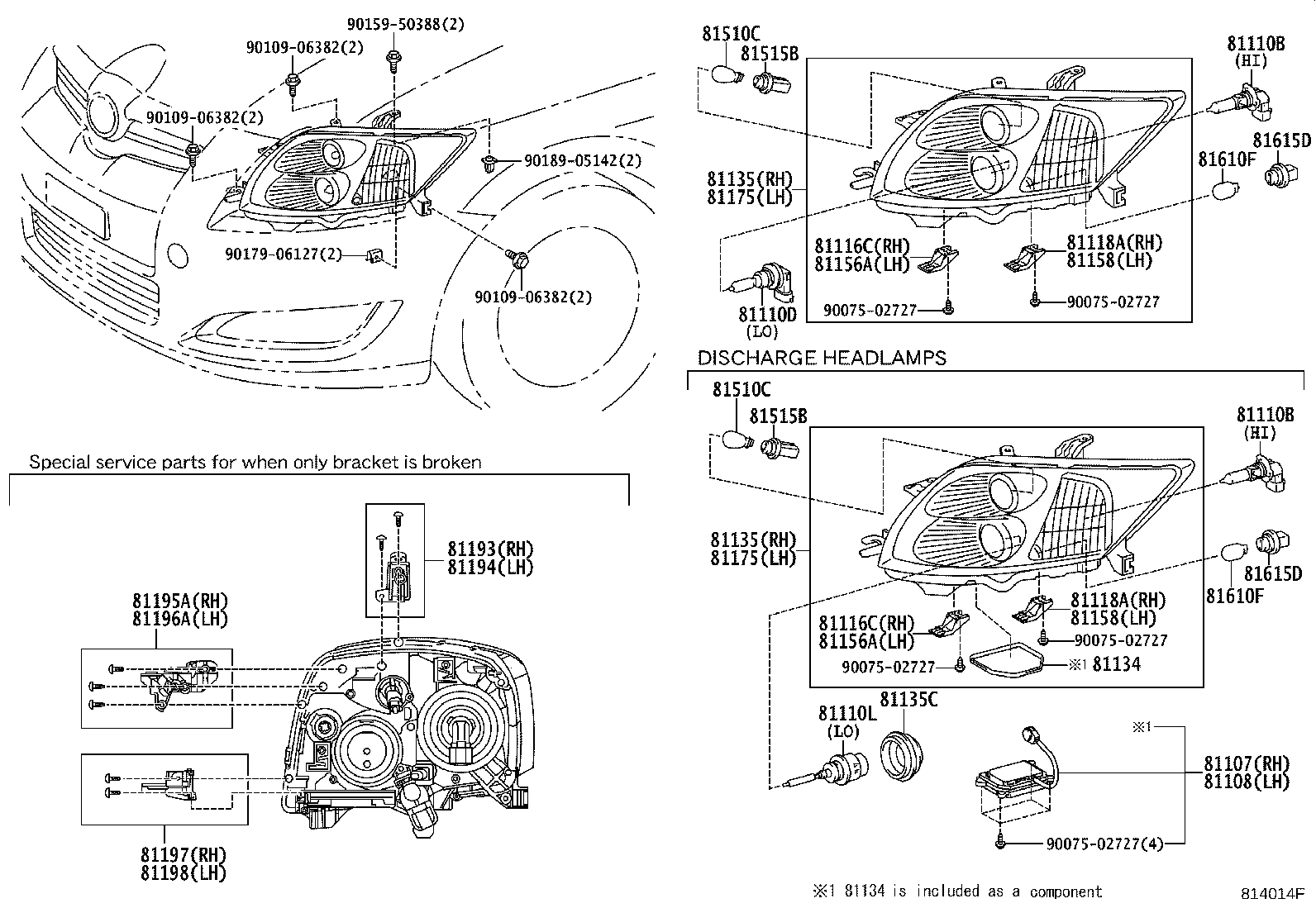

Click highlighted areas on diagram

diagram 81107 81108 81110B 81110B 81110D 81110L 81116C 81116C 81118A 81118A 81134 81135 81135 81135C 81156A 81156A 81158 81158 81175 81175 81193 81194 81195A 81196A 81197 81198 81510C 81510C 81515B 81515B 81610F 81610F 81615D 81615D 9007502727 9007502727 9007502727 9007502727 9007502727 9010906382 9010906382 9010906382 9015950388 9017906127 9018905142
Part # Description Qty Price
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-12040

NDE150,ZRE151,ZZE150

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-12040

NDE150,ZRE151,ZZE150

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-12040

NDE150,ZRE151,ZZE150

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-12040

NDE150,ZRE151,ZZE150

 1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-12040

NDE150,ZRE151,ZZE150

 1
81198 - BRACKET, HEADLAMP, LWR LH
81198-12040

NDE150,ZRE151,ZZE150

 1
Common parts
90075-02727
90109-06382
90159-50388
90179-06127
90189-05142
