ZRE151L-AHFDKW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )

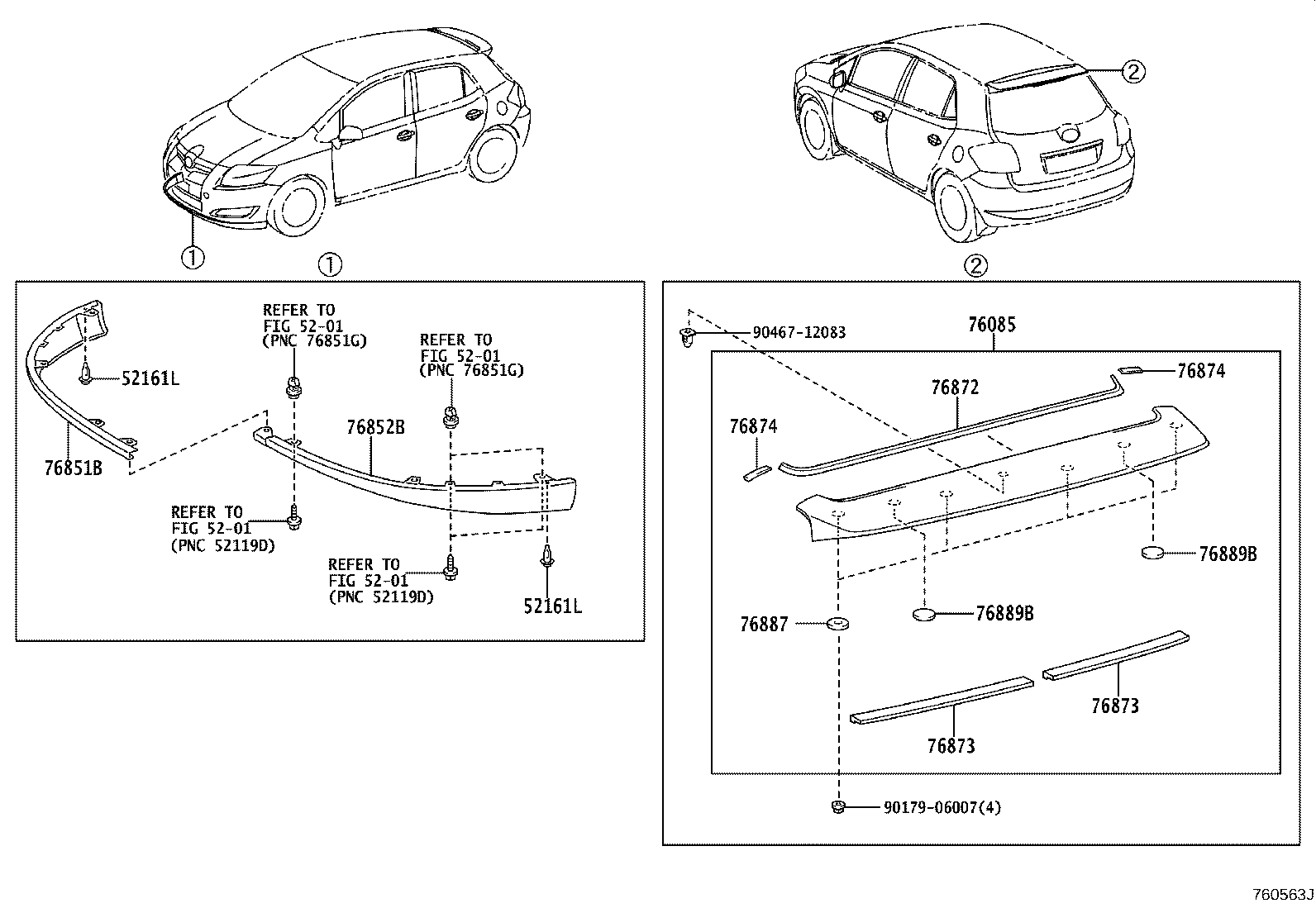

Click highlighted areas on diagram

diagram 5201 5201 5201 5201 52161L 52161L 76085 76851B 76852B 76872 76873 76873 76874 76874 76887 76889B 76889B 9017906007 9046712083
Part # Description Qty Price
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-12170

NDE150,ZRE151,ZZE150

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-12180

NDE150,ZRE151,ZZE150

 2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-12180

NDE150,ZRE151,ZZE150

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-12200

NDE150,ZRE151,ZZE150

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-12200

NDE150,ZRE151,ZZE150

 2
Common parts
90179-06007
90467-12083
Linked diagrams
5201
