ZRE151L-AHFDKW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

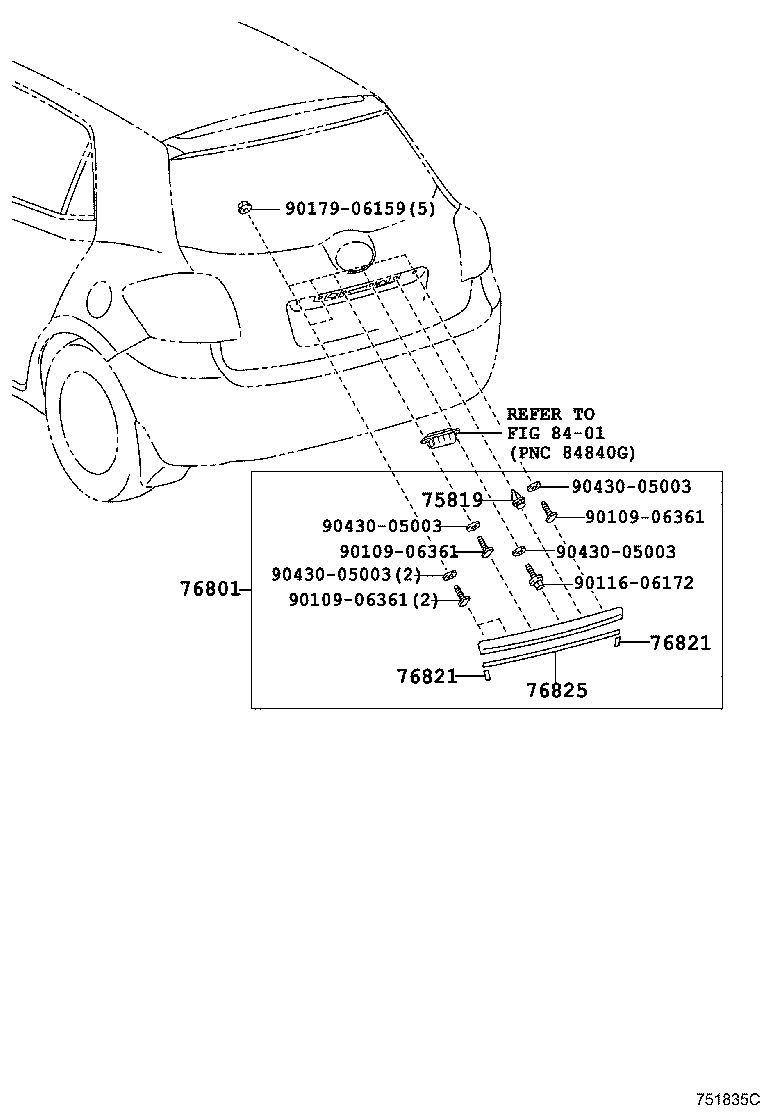

Click highlighted areas on diagram

diagram 75819 76801 76821 76821 76825 8401 9010906361 9010906361 9010906361 9011606172 9017906159 9043005003 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

NDE150,ZRE151,ZZE150

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-12200

NDE150,ZRE151,ZZE150

 2
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-12200

NDE150,ZRE151,ZZE150

 2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-12040

NDE150,ZRE151,ZZE150

 1
Common parts
90109-06361
90116-06172
90179-06159
90430-05003
Linked diagrams
8401
