ZRE151L-AHFDKW (2008)

Toyota Auris/Corolla (Jpp)

Production Dec 2008 - Oct 2009
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0610-0910)

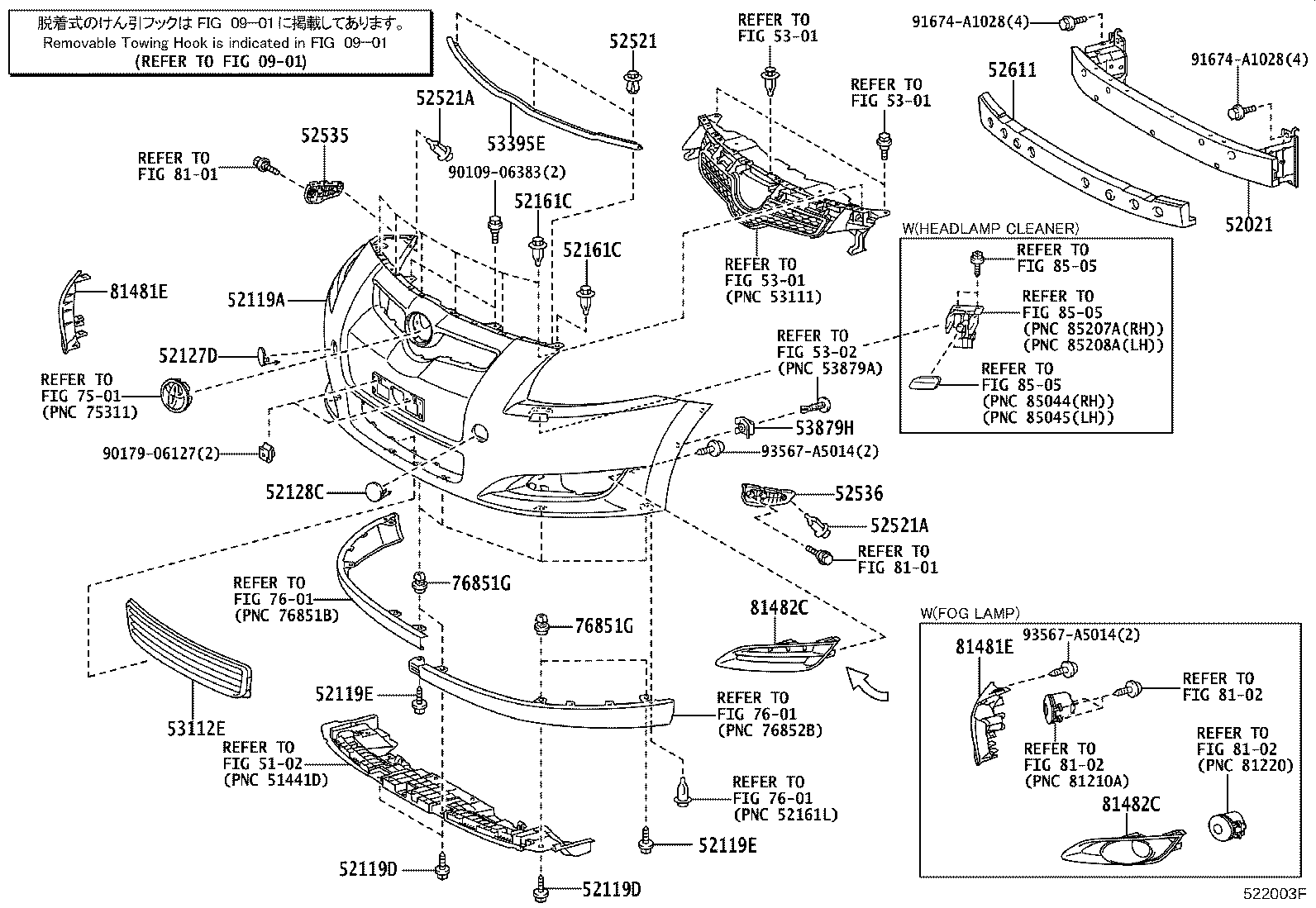

Click highlighted areas on diagram

diagram 0901 5102 52021 52119A 52119D 52119D 52119E 52119E 52127D 52128C 52161C 52161C 52521 52521A 52521A 52535 52536 52611 5301 5301 5301 5302 53112E 53395E 53879H 7501 7601 7601 7601 76851G 76851G 8101 8101 8102 8102 8102 81481E 81481E 81482C 81482C 8505 8505 8505 9010906383 9017906127 91674A1028 91674A1028 93567A5014 93567A5014
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-12953

ADE150,NDE150,NRE150,ZRE15#

PAINT REQ.

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-12100

NDE150,ZRE151,ZZE150

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-12080

NDE150,ZRE151,ZZE150

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12180

NDE150,ZRE151,ZZE150

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-12120

NDE150,ZRE151,ZZE150

NO PAINT REQ.

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-12040

NDE150,ZRE151,ZZE150

 1
76851G - GROMMET, SCREW, NO.1
90189-06234

ADE150,NDE150,NRE150,ZRE15#

 7
90189-06234

ADE150,NDE150,NRE150,ZRE15#..TERRA

FRONT FOG LAMP-MOP

 6
76851G - GROMMET, SCREW, NO.1
90189-06234

ADE150,NDE150,NRE150,ZRE15#

 7
90189-06234

ADE150,NDE150,NRE150,ZRE15#..TERRA

FRONT FOG LAMP-MOP

 6
Common parts
90109-06383
90179-06127
91674-A1028
93567-A5014
