NRE150L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Sep 2008 - Oct 2009
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

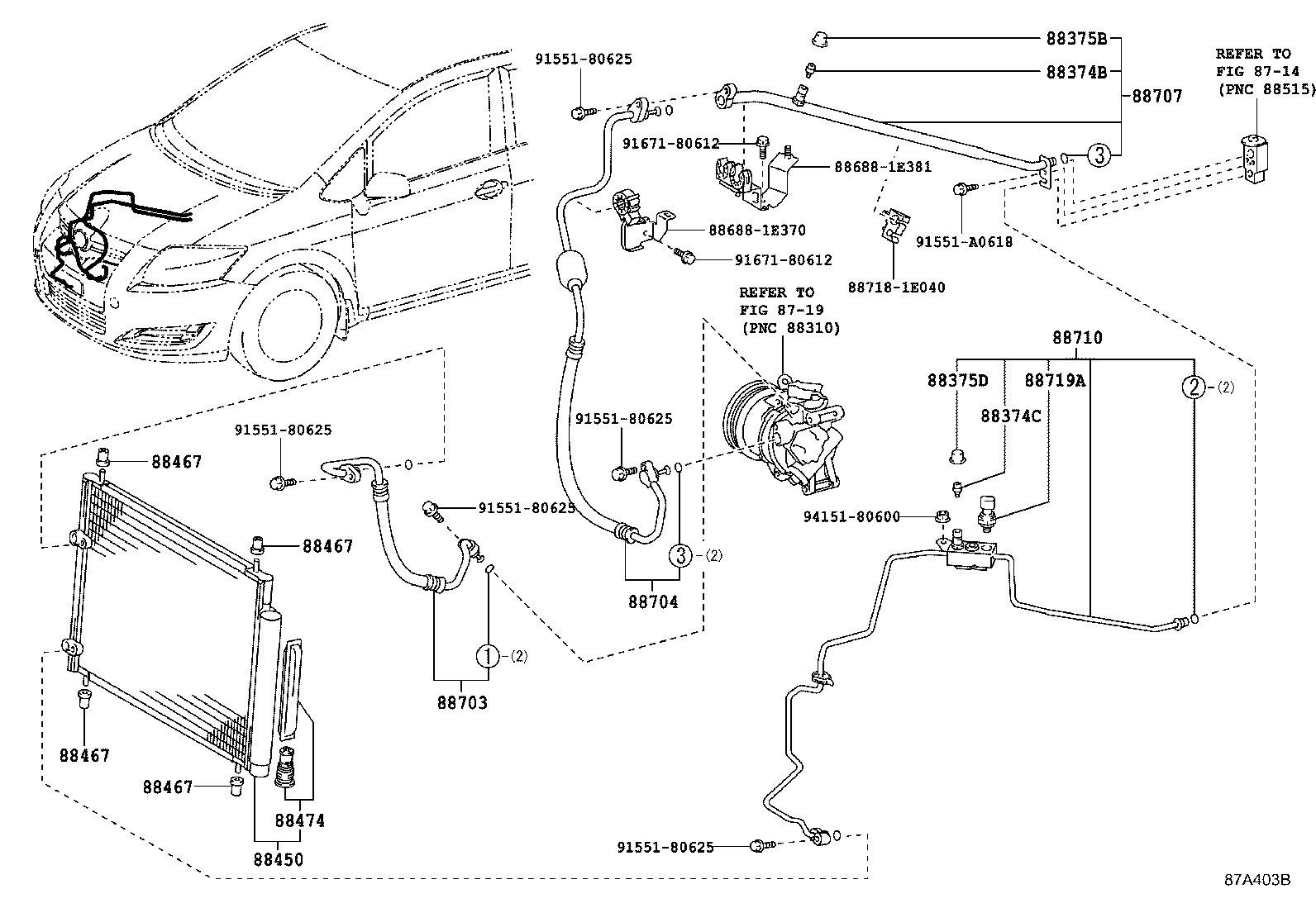

ILLUST NO. 1 OF 2(0809- )NRE150

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88467 88467 88474 886881E370 886881E381 88703 88704 88707 88710 887181E040 88719A 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 9167180612 9167180612 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NRE150..SOL

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NRE150..SOL

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

NRE150..SOL

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

NRE150..SOL

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-12280

NRE150,ZRE15#..(6F,6FS)..SOL

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)

 4
88474 - DRYER, COOLER
88474-12030

NRE150,ZRE15#..(6F,6FS)..SOL

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-1A100

NRE150..SOL

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-1A330

NRE150..SOL

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-12300

NRE150..SOL

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-1A030

NRE150..SOL

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)

 1
Common parts
88688-1E370
88688-1E381
88718-1E040
91551-80625
91551-A0618
91671-80612
94151-80600
Linked diagrams
8714
8719
