Toyota Auris/corolla (jpp) NRE150 HEATING & AIR CONDITIONING - WATER PIPING

NRE150L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Sep 2008 - Oct 2009

Engine 1NRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty

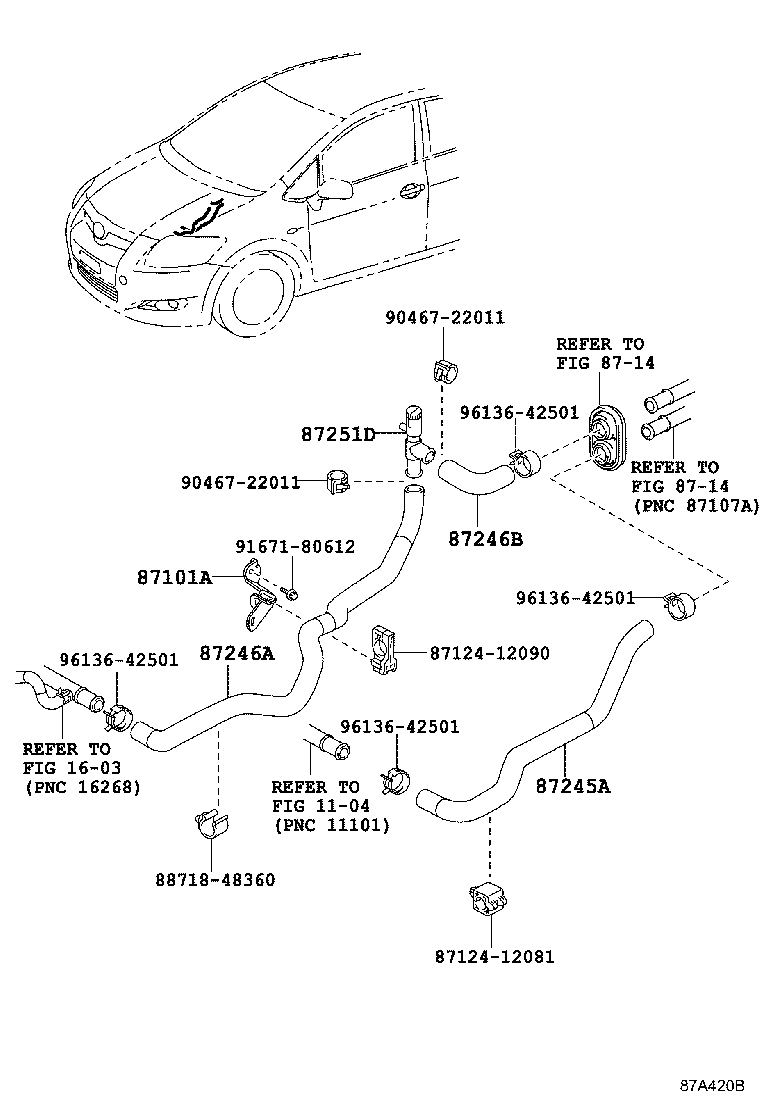

87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-12130	NRE150	09/2008 - 10/2009	1
87245A - HOSE, HEATER WATER, INLET A
87245-12F20	NRE150	09/2008 - 10/2009	1
87245-12F20	NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F20	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F20	NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12F00	NRE150	09/2008 - 10/2009	1
87245-12E80	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F00	NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F00	NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-12F80	NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F80	NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F80	NRE150	09/2008 - 10/2009	1
87245-12F90	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
87251D - JOINT, WATER, NO.1
87251-12040	NRE150	09/2008 - 10/2009	1
87251-12050	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
Common parts
87124-12081
87124-12090
88718-48360
90467-22011
91671-80612
96136-42501
Linked diagrams
1104
1603
8714

Click highlighted areas on diagram

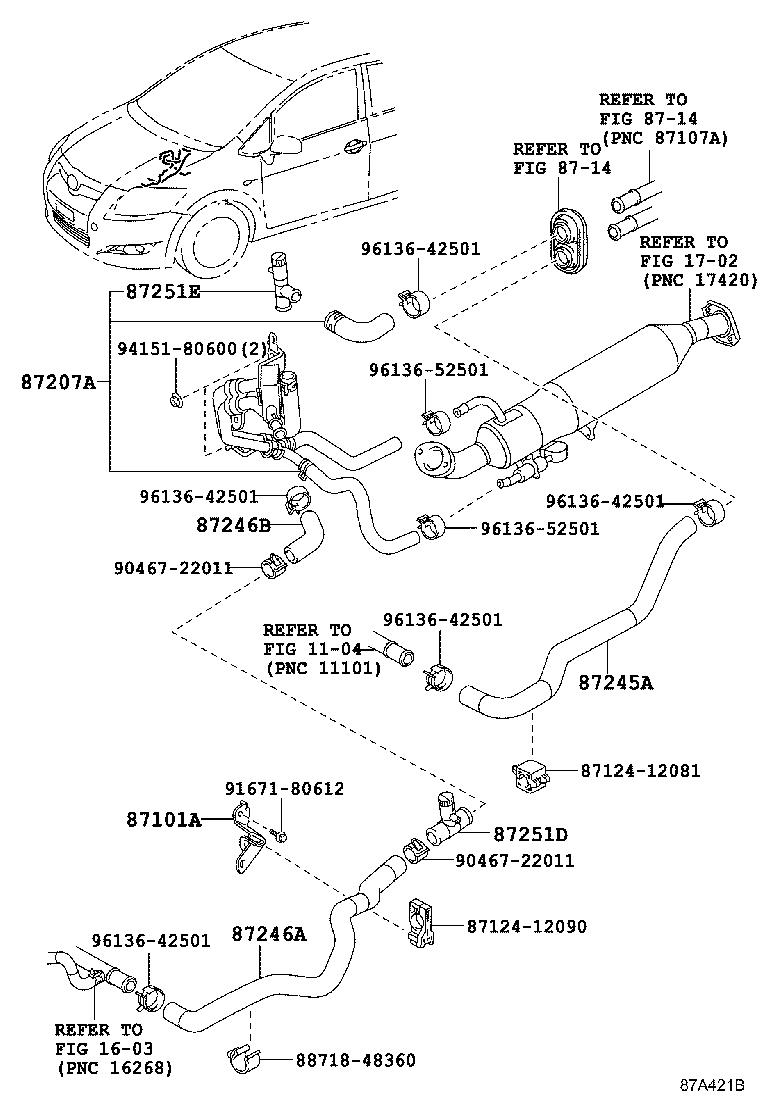

W(EXHAUST HEATER)

Part #	Description	Period	Qty
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-12130	NRE150	09/2008 - 10/2009	1
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-12070	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
87245A - HOSE, HEATER WATER, INLET A
87245-12F20	NRE150	09/2008 - 10/2009	1
87245-12F20	NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F20	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F20	NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12F00	NRE150	09/2008 - 10/2009	1
87245-12E80	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F00	NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F00	NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-12F80	NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F80	NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC	09/2008 - 10/2009	1
87245-12F80	NRE150	09/2008 - 10/2009	1
87245-12F90	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
87251D - JOINT, WATER, NO.1
87251-12040	NRE150	09/2008 - 10/2009	1
87251-12050	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
87251E - JOINT, WATER, NO.2
87251-17010	NRE150..LHD COLD AREA SPEC	09/2008 - 10/2009	1
Common parts
87124-12081
87124-12090
88718-48360
90467-22011
91671-80612
94151-80600
96136-42501
96136-52501
Linked diagrams
1104
1603
1702
8714
