NRE150L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)
ILLUST NO. 6 OF 7(0610-0910)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12661 |
ADE150,NRE150,ZRE152..LHD..SOL..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..SOL..(DCR,DCRL,HTWVM) INTERMITTENT WIPER-AUTO(RAIN SENSOR)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84140-12621 |
NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM) |
1 | ||
| 84140-12661 |
NDE150,NRE150..LHD..(6F,6FS)..SOL;ADE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM) INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 84140-12641 |
ADE150,NRE150,ZRE152..LHD..SOL..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..SOL..(DCR,DCRL,HTWVM) DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-12040 |
NDE150..6F..SOL;ADE150,NRE150,ZRE15#..6F..SOL..(DCRL,HTWC,HTWVM) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12110 |
ZRE151..6FS;NDE150..6FS..TERRA;NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..6F..SOL..(DCRL,HTWC,HTWVM) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-48121 |
NDE150..LHD..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM) INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 84652-48111 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
NRE150,ZRE152;ZRE151..HTWVM VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

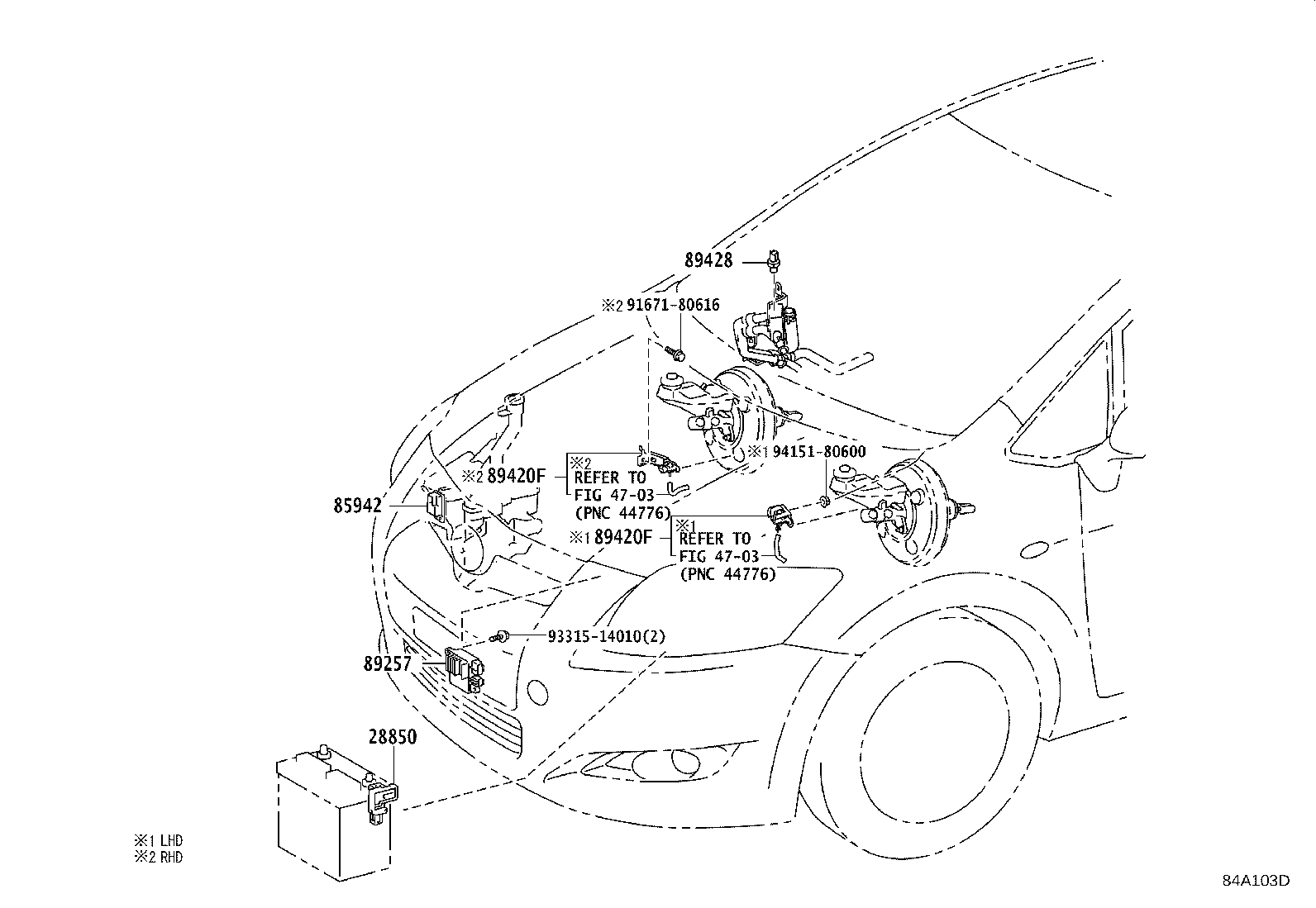

ILLUST NO. 2 OF 7(0809- )NRE150
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-21020 |
1NRFE..NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-12010 |
ADE150,NRE150,ZRE152..LHD..(DCRL,HTWC,HTWVM);NDE150,ZRE151..LHD..(6F,6FS)..(DCR,DCRL,HTWVM) HEADLAMP CLEANER-WITH |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-12270 |
NRE150..LHD STOP & START SYSTEM PACKAGE |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-12270 |
NRE150..LHD STOP & START SYSTEM PACKAGE |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12170 |
NRE150..LHD COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 93315-14010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4703 | ||||

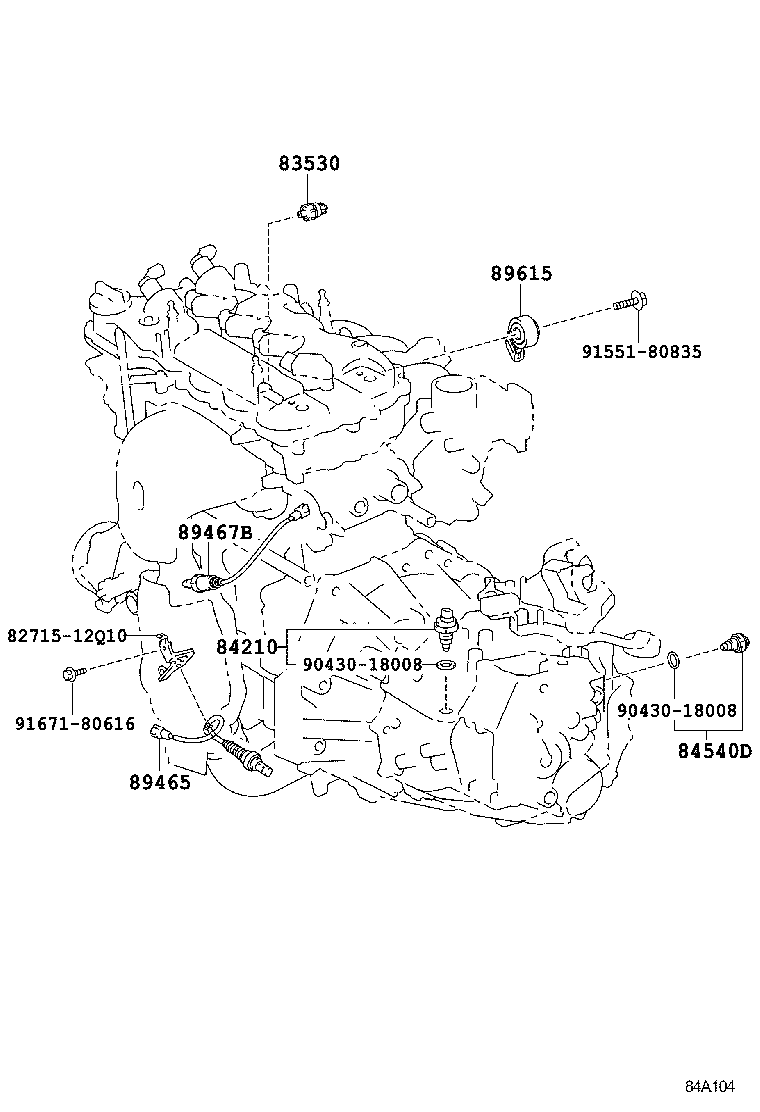

ILLUST NO. 1 OF 7(0809-0910)NRE150
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NRE150,ZRE15#..6F,6FS YAZAKI |
1 | ||
| 83530-28020 |
NRE150,ZRE15#..6F,6FS DENSO |
1 | ||
| 83530-05010 |
NRE150,ZRE15#..6F,6FS VALEO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 84540D - SWITCH ASSY, NEUTRAL START | ||||
| 84545-20020 |
NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12A50 |
NRE150 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52070 |
NRE150 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NRE150 |
1 | ||
| Common parts | ||||
| 82715-12Q10 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91671-80616 | ||||

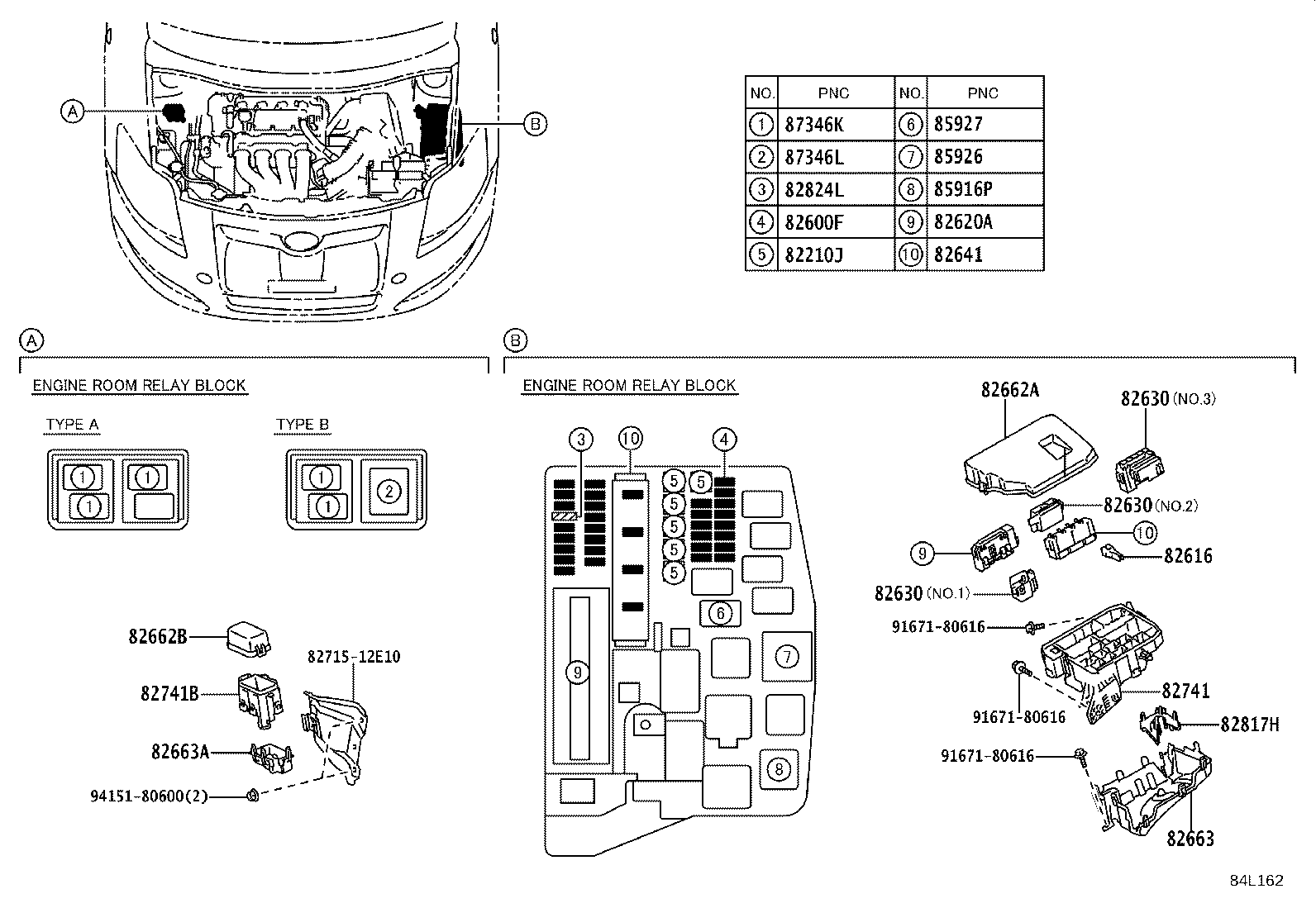

ILLUST NO. 3 OF 7(0809- )NRE150
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ADE150,NDE150,NRE150,ZRE15#,ZZE150 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) 25A,MINI FUSE |
1 | ||
| 90982-09025 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) 7.5A,MINI FUSE,BROWN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12030 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.3 |
1 | ||
| 82631-12010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 82631-12020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.2 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12030 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.3 |
1 | ||
| 82631-12010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 82631-12020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.2 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12030 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.3 |
1 | ||
| 82631-12010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 82631-12020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.2 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12570 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 82662-12620 |
NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 82662-12620 |
NRE150 STOP & START SYSTEM PACKAGE&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82662-12620 |
NRE150 STOP & START SYSTEM PACKAGE |
1 | ||
| 82662-12670 |
NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC |
1 | ||
| 82662-12620 |
NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82662-12670 |
NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12280 |
NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC |
1 | ||
| 82662-12280 |
NRE150,ZRE152..LHD;ZRE151..LHD..HTWVM COLD AREA SPEC |
1 | ||
| 82662-12280 |
NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC |
1 | ||
| 82662-12280 |
NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 82662-12280 |
NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82662-12280 |
NRE150,ZRE152..LHD;ZRE151..LHD..HTWVM COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12060 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12070 |
NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC |
1 | ||
| 82663-12070 |
NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82663-12070 |
NRE150,ZRE152..LHD;ZRE151..LHD..HTWVM COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82663-12070 |
NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 82663-12070 |
NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC |
1 | ||
| 82663-12070 |
NRE150,ZRE152..LHD;ZRE151..LHD..HTWVM COLD AREA SPEC |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12070 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 82741B - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12080 |
NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC |
1 | ||
| 82741-12080 |
NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC |
1 | ||
| 82741-12080 |
NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC |
1 | ||
| 82741-12080 |
NRE150..LHD STOP & START SYSTEM PACKAGE&COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82741-12080 |
NRE150,ZRE152..LHD;ZRE151..LHD..HTWVM COLD AREA SPEC |
1 | ||
| 82741-12080 |
NRE150,ZRE152..LHD;ZRE151..LHD..HTWVM COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12A80 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 90987-02027 |
NRE150..LHD..SOL RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),TYPE B:REFER ILLUST. |
2 | ||
| 90987-02027 |
NRE150,ZRE152..LHD;ZRE151..LHD..HTWVM COLD AREA SPEC,TYPE A:REFER ILLUST. |
3 | ||
| 90987-02027 |
NRE150,ZRE152..LHD..SOL;ZRE151..LHD..SOL..HTWVM COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),TYPE A:REFER ILLUST. |
3 | ||
| 90987-02027 |
NRE150..LHD..SOL RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),TYPE B:REFER ILLUST. |
2 | ||
| 90987-02027 |
NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
NRE150..LHD RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 90987-02025 |
NRE150..LHD..SOL RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),TYPE B:REFER ILLUST. |
1 | ||
| 90987-02025 |
NRE150..LHD..SOL RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL),TYPE B:REFER ILLUST. |
1 | ||
| 90987-02025 |
NRE150..LHD RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC,TYPE B:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 82715-12E10 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
