Toyota Auris/corolla (jpp) NRE150 WIRING & CLAMP

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-12K10	NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
82121-12K30	NRE150	09/2008 - 10/2009	1
82123 - WIRE, ENGINE, NO.3
82123-12420	NRE150 STOP & START SYSTEM PACKAGE	09/2008 - 10/2009	1
82123-12460	NRE150,ZRE151..6F..HTWC	09/2008 - 10/2009	1
82124 - WIRE, ENGINE, NO.4
82124-12150	NRE150	09/2008 - 10/2009	1
82125 - WIRE, TRANSMISSION
82125-12590	NRE150,ZRE15#..6F,6FS	09/2008 - 10/2009	1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12280	NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)	09/2008 - 10/2009	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-12170	NRE150	09/2008 - 10/2009	1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-12420	NRE150	09/2008 - 10/2009	1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-12430	NRE150	09/2008 - 10/2009	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-12860	NRE150,ZRE15#..6F,6FS	09/2008 - 10/2009	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-12B90	NRE150,ZRE15#..6F,6FS	09/2008 - 10/2009	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-12J10	NRE150,ZRE15#..6F,6FS	09/2008 - 10/2009	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-12J60	NRE150	09/2008 - 10/2009	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-12J70	NRE150	09/2008 - 10/2009	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-12J90	NRE150	09/2008 - 10/2009	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-0D140	NRE150	10/2008 - 10/2009	1
82821E - COVER, CONNECTOR
82821-12660	NRE150	09/2008 - 10/2009	1
82821H - COVER, CONNECTOR
82821-12650	NRE150	09/2008 - 10/2009	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)	09/2008 - 10/2009	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12110	NRE150,ZRE15#..6F,6FS	09/2008 - 10/2009	1
Common parts
88446-12061
90119-06915
90126-06029
91671-80616
91671-80816
91673-80612
94151-80600

NRE150L-AHFNKW (2008)

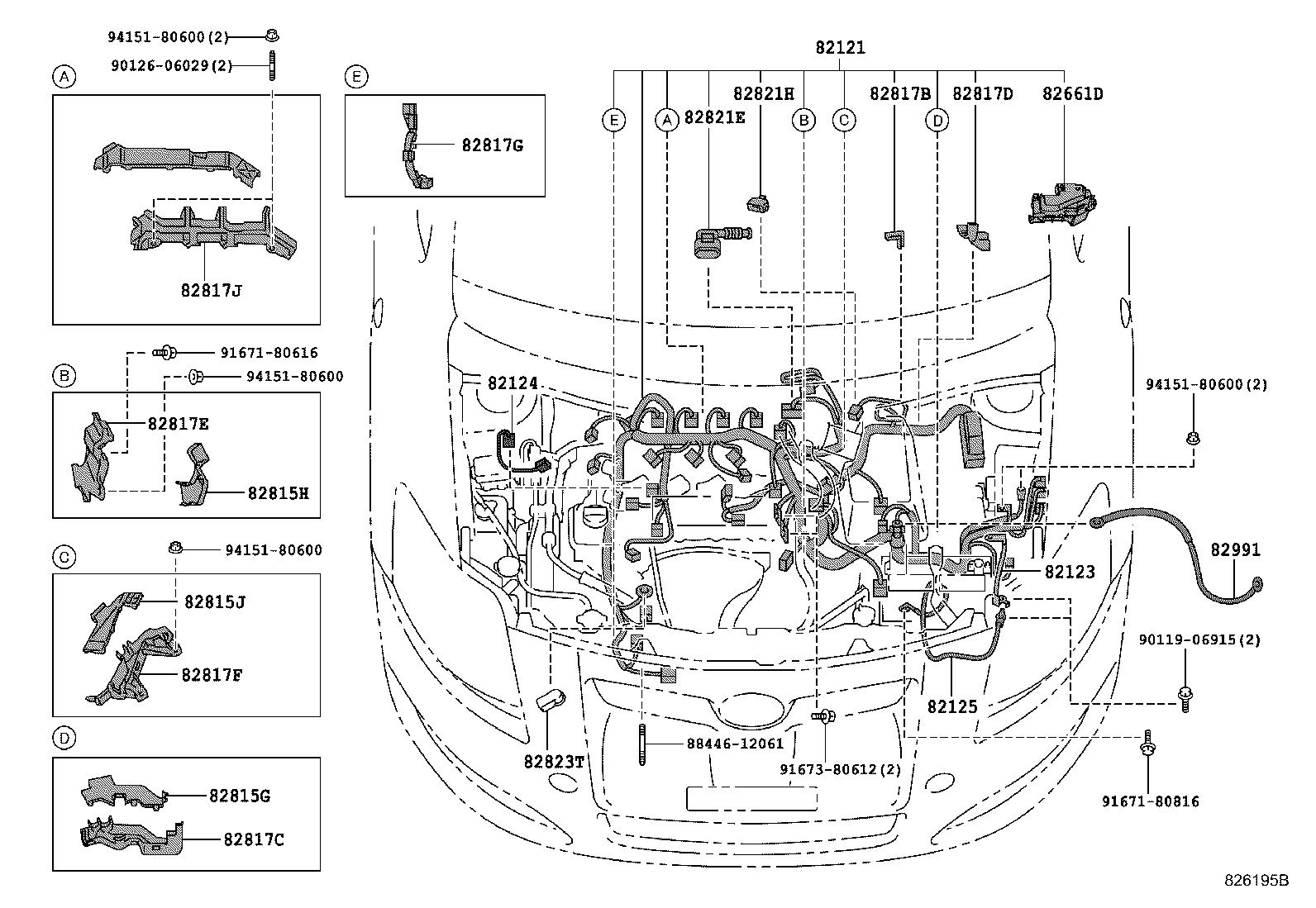

ILLUST NO. 2 OF 8(0809-0910)NRE150
