NRE150L-AHFNKW (2008)
Toyota Auris/Corolla (Jpp)

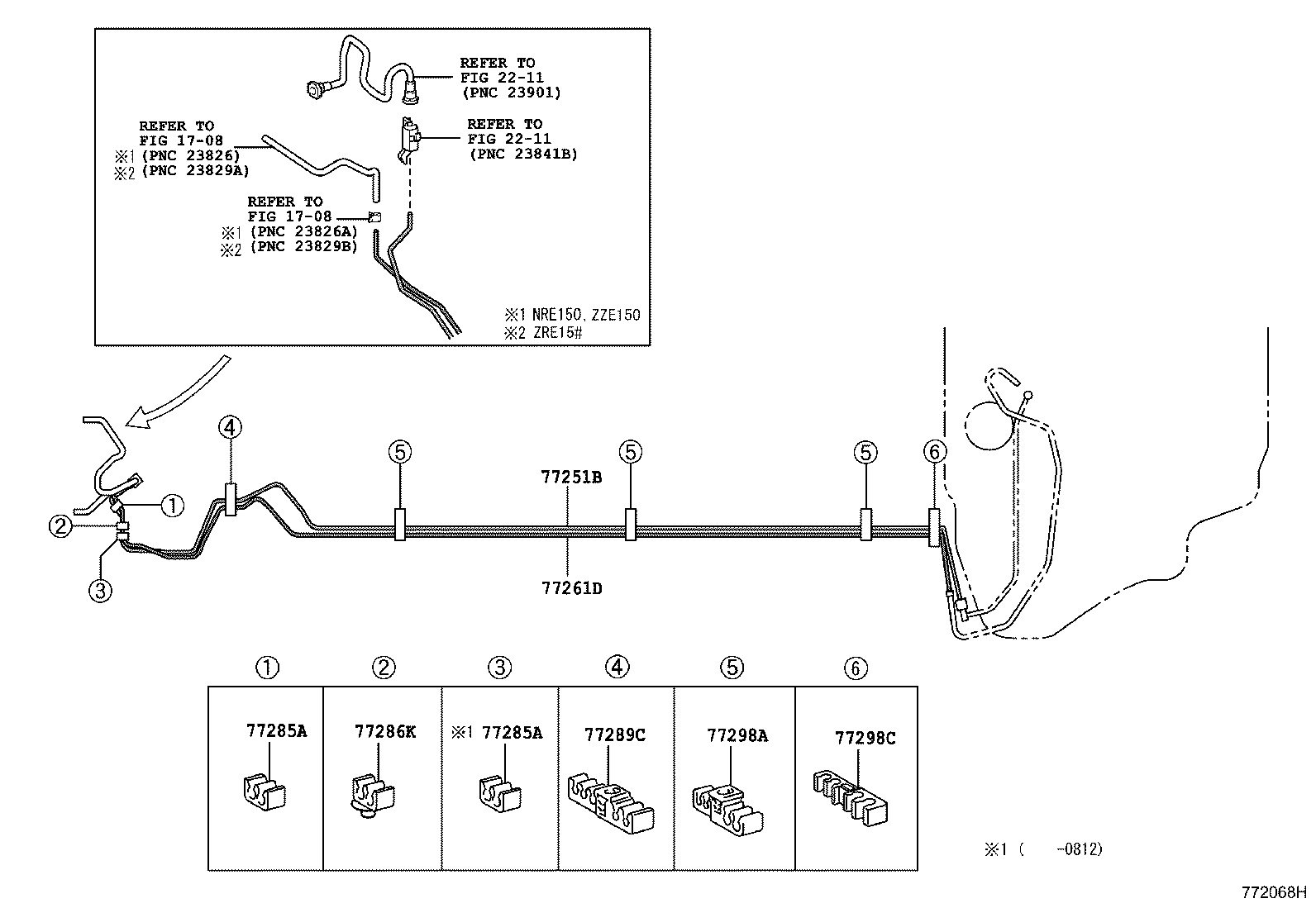

ILLUST NO. 2 OF 2(0610-0812)ZZE150 ; (0610-0910)NRE150 ; (0610-)ZRE15#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12810 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12580 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20190 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12120 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

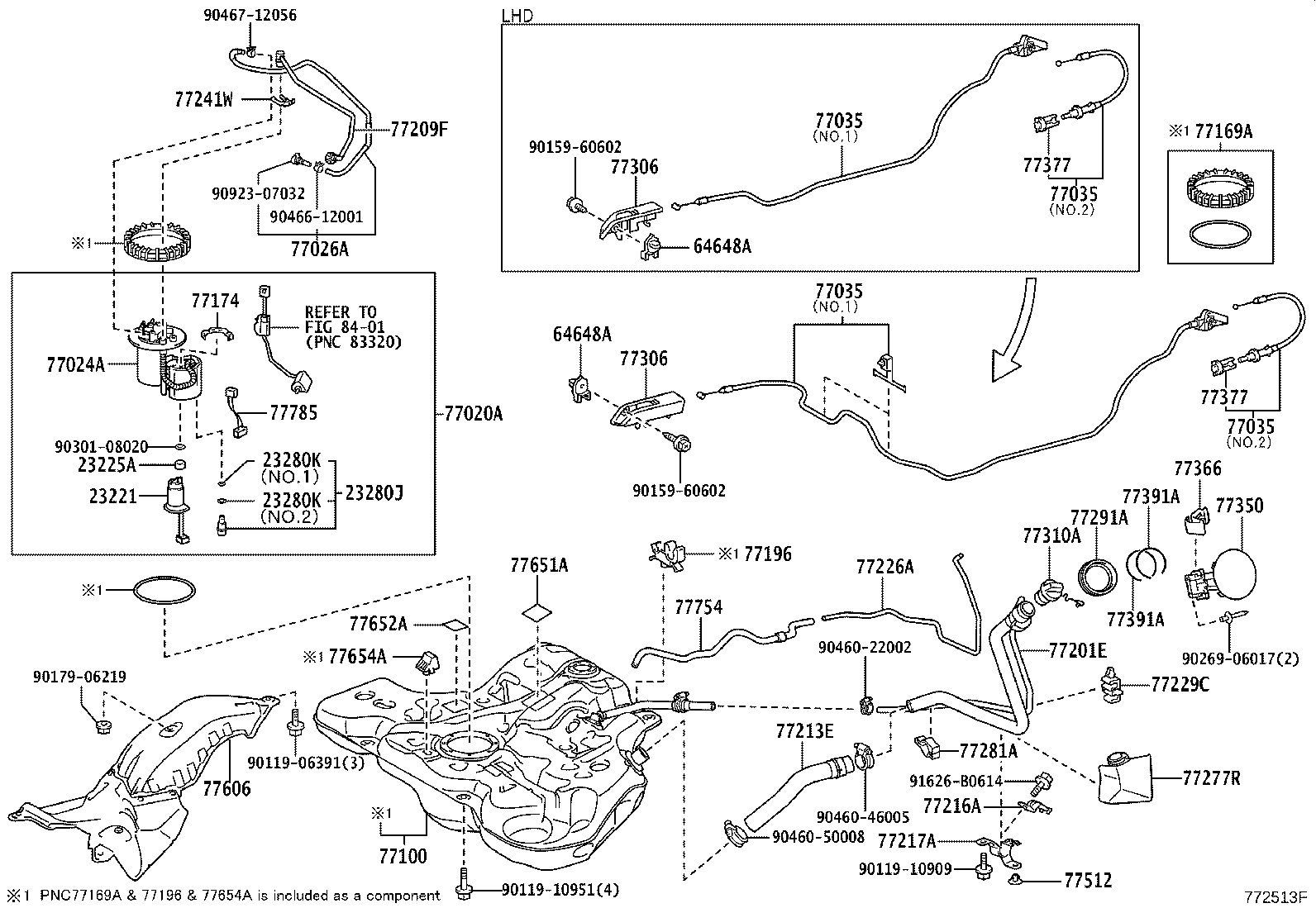

ILLUST NO. 1 OF 2(0809-0910)NRE150
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-47010 |
1NRFE..NRE150 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
1NRFE..NRE150 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS NO.2 |
1 | ||
| 90301-04013 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS NO.2 |
1 | ||
| 90301-04013 |
1NRFE,1ZR#,2ZRFAE..NRE150,ZRE15#..6F,6FS NO.1 |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-12790 |
NRE150 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12120 |
NRE150 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-12030 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12490 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.2 |
1 | ||
| 77035-12440 |
NDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12490 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.2 |
1 | ||
| 77035-12440 |
NDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12490 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.2 |
1 | ||
| 77035-12440 |
NDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12490 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.2 |
1 | ||
| 77035-12440 |
NDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM) NO.1 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12B60 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52040 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-72020 |
NRE150 |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12080 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-12640 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12210 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-12270 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12190 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-47080 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-12030 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12180 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12100 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-12190 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52040 |
NDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-52040 |
NDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12480 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
2 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-12130 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-45020 |
NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
3 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12090 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12160 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12020 |
NRE150,ZRE15#..6F,6FS |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10909 | ||||
| 90119-10951 | ||||
| 90159-60602 | ||||
| 90179-06219 | ||||
| 90269-06017 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 90923-07032 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
