NRE150L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Sep 2008 - Oct 2009
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0809-0910)NRE150..LHD

Click highlighted areas on diagram

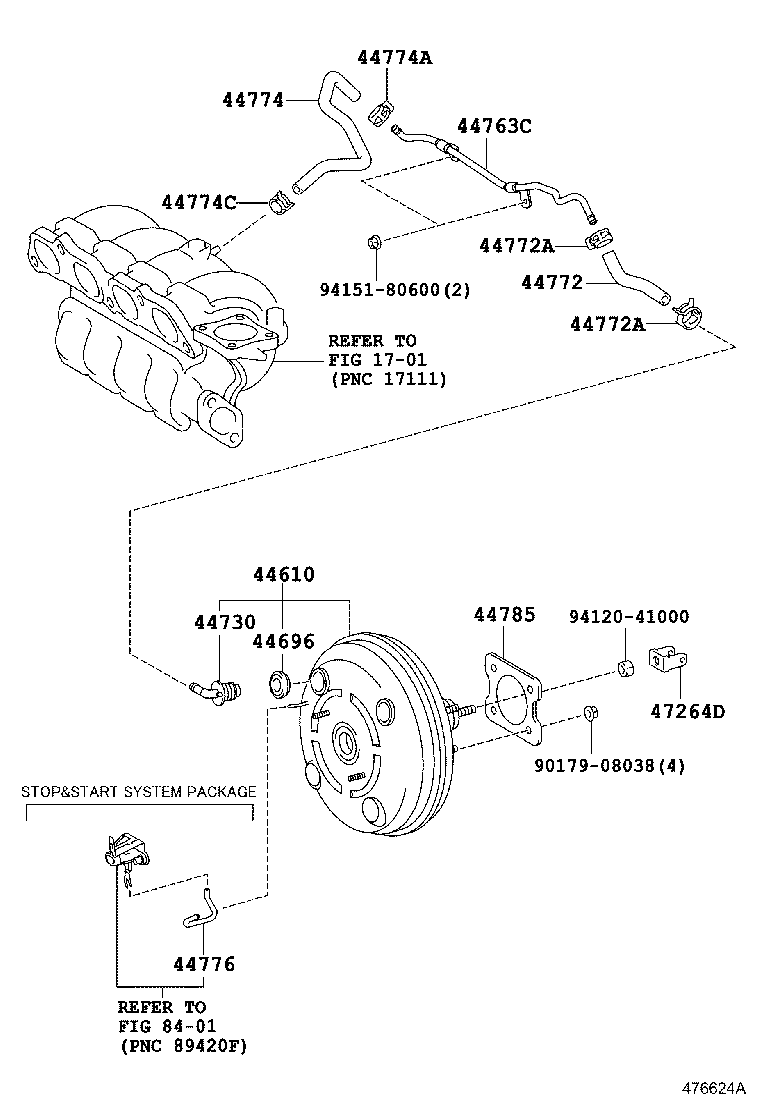

diagram 1701 44610 44696 44730 44763C 44772 44772A 44772A 44774 44774A 44774C 44776 44785 47264D 8401 9017908038 9412041000 9415180600
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-12C11

NRE150,ZRE151..LHD..6F..HTWC

 1
44610-12F51

NRE150..LHD

STOP & START SYSTEM PACKAGE&VSC-WITH(W/CUT OFF SWITCH)

 1
44610-12A81

NRE150..LHD

VSC-WITH(W/CUT OFF SWITCH)

 1
44610-12F61

NRE150..LHD

STOP & START SYSTEM PACKAGE

 1
44696 - GROMMET, CHECK VALVE
90480-24439

NRE150,ZRE15#..6F,6FS

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

NRE150,ZRE15#..LHD..(6F,6FS)

 1
44763C - TUBE, HOSE TO HOSE, NO.2
44763-12400

NDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-12510

NRE150,ZRE15#..LHD..(6F,6FS)

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

NRE150..LHD;NDE150..6F,6FS;ADE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500

NRE150..LHD;NDE150..6F,6FS;ADE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12740

NRE150..LHD

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500

NRE150..LHD;NDE150..6F,6FS

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NRE150..LHD;NDE150..6F,6FS

 1
44776 - HOSE, BRAKE BOOSTER
44776-12180

NRE150..LHD

STOP & START SYSTEM PACKAGE&VSC-WITH(W/CUT OFF SWITCH)

 1
44776-12180

NRE150..LHD

STOP & START SYSTEM PACKAGE

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63020

NRE150,ZRE15#..6F,6FS

 1
Common parts
90179-08038
94120-41000
94151-80600
Linked diagrams
1701
8401
