NRE150L-AHFNKW (2008)

Toyota Auris/Corolla (Jpp)

Production Sep 2008 - Oct 2009
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0809- )NRE150 ; (0812- )NDE150,ZRE15#..6F

Click highlighted areas on diagram

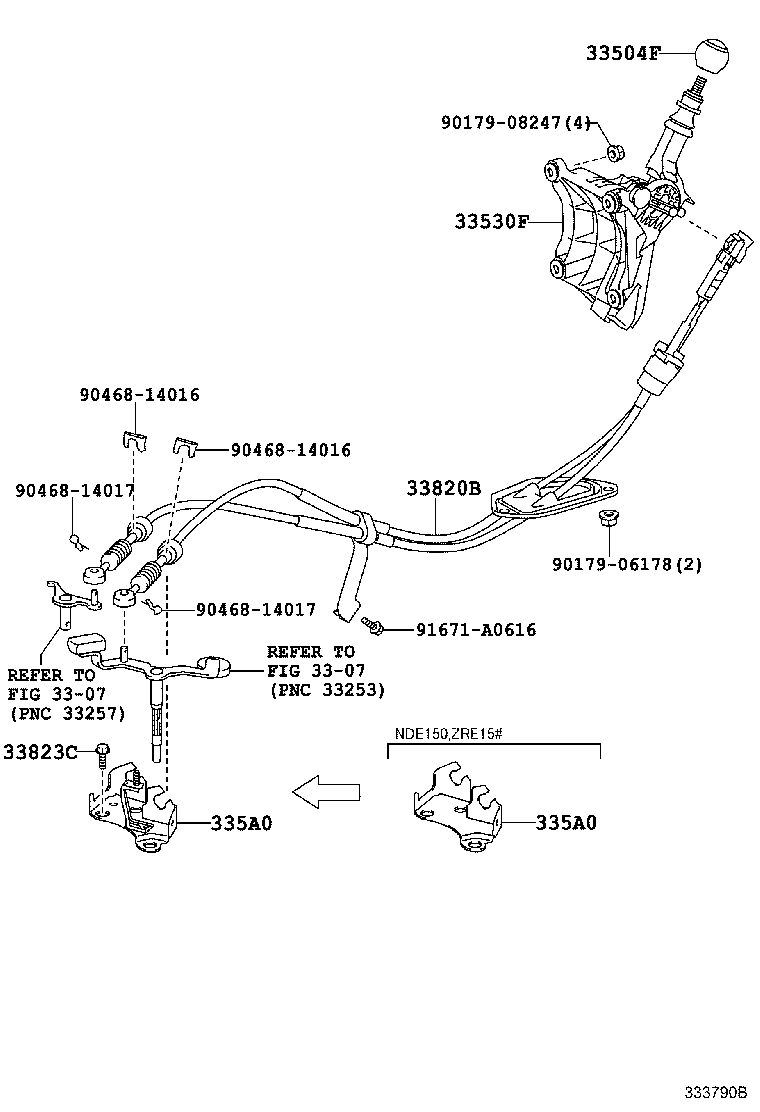

diagram 3307 3307 33504F 33530F 335A0 335A0 33820B 33823C 9017906178 9017908247 9046814016 9046814016 9046814017 9046814017 91671A0616
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12330B1

NDE150..6F..SOL;ADE150,NRE150,ZRE15#..6F..SOL..(DCRL,HTWC,HTWVM)

DK.GRAY,TRIM1#,4#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-12A10

NDE150..6F;ADE150,NRE150,ZRE15#..6F..(DCRL,HTWC,HTWVM)

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-12010

NRE150

*201

 1
335A0-12010

NRE150

*206

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-12010

NRE150

*201

 1
335A0-12010

NRE150

*206

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12A50

NRE150

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08C60

NDE150,NRE150,ZRE15#..6F

*206

 3
90119-08C60

NDE150,NRE150,ZRE151..6F

*201

 3
Common parts
90179-06178
90179-08247
90468-14016
90468-14017
91671-A0616
Linked diagrams
3307
